PVC Plastic Hot and Cooling Mixer Machine
- Shanghai
- T/T Money Gram
You May Like
Product Details
| Condition | New | Mixer Type | Homogenizer | |
| Product Type | Other, PVC | Application | Powder | |
| Additional Capabilities | Milling | Place of Origin | Jiangsu, China | |
| Brand Name | sevenstars | Model Number | sevenstars | |
| Max. Loading Capacity | 1600L | Voltage | 380v 480v or customerized | |
| Certification | ISO9001 CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
PVC plastic Power Mixer Machine1.capacity:360kg/h
2.heating power:55kw
3.CE certification
4.Plastic Mixer

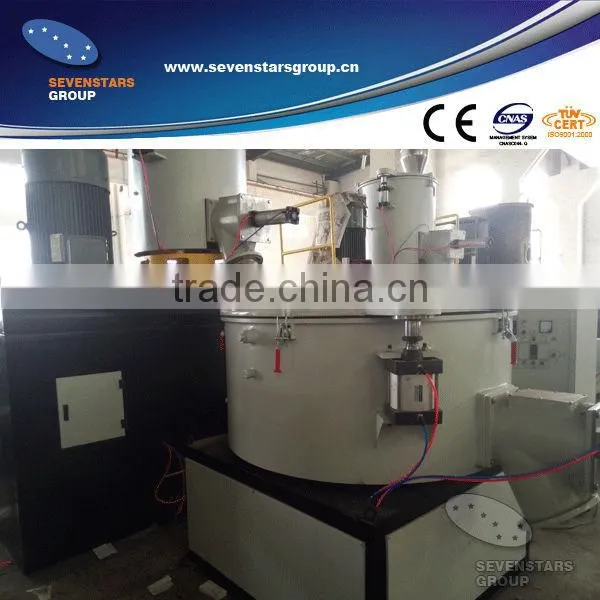

PVC plastic Power Mixer Machine
SRL-Z Series Mixer units are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning.
Main Technical Parameter:
Model/specs | SRL-Z100/200 Hot mixing/cold mixing | SRL-Z200/500 Hot mixing/cold mixing | SRL-Z300/600 Hot mixing/cold mixing | SRL-Z500/1000 Hot mixing/cold mixing | SRL-Z800/1600 Hot mixing/cold mixing |
Total cubage(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
Effective cubbage(L) | 65/130 | 150/320 | 225/380 | 375/650 | 600/1050 |
Mixed speed(r/min) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 |
Heating & cooling manner | electric heating self-friction/water cooling | ||||
Mixed time | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
Motor Power | 14/22/7.5 | 30/42/11 | 40/55/11 | 47/67/15 | 60/90/22 |
Dimension(L×W×H)(mm) | 1950×1600×1800 | 4580×2240×2470 | 4800×2640×2480 | 4600×3000×4050 | 5170×3200×4480 |
Weight(kg) | 2200 | 3400 | 3600 | 4800 | 6200 |
