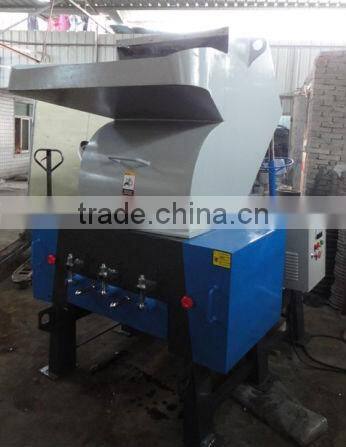

PVC and PE Waste Bottle Crusher

PVC and PE Waste Bottle Crusher thumbnail-1
PVC and PE Waste Bottle Crusher photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New, New
Type:
Other, WASTE PLASTIC
Application:
crush pvc pipe
Contact Supplier Request Quote Chat Now
Zhangjiagang Sevenstars Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, WASTE PLASTIC
Application crush pvc pipe
Motor Type AC Motor
Power(W) 22-90kw
Capacity(t/h) 200-1000kg
Place of Origin Jiangsu, China
Brand Name sevenstars
Model Number PC
Dimension(L*W*H) 400*270mm
Certification ISO9001 CE, CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

PVC and PE Waste bottle Crusher
1.crush film/bags/sheet, bottles,solid wastes
2.capacity: 50--2500kg/hr
3.SKD-11

  PVC and PE Waste bottle Crusher

1.mainly suitable for PVC ,PP,PE,PP-R and other plastic pipe crushing,also suitable for plastic profile

and other waste reasoable size plastic lump pastic crushing

2.high crushing capacity ,

3.blades are easy to disassemble for sharpening and washing

4.special safety design

5.very convenient to change different  sieve according to requirement

6.sieve hole diameter can be adjusted according to client demand

7.equip with  crushed plastic granules assembling dvice and electric control cabinet



Main technical parameter of  plastic crusher machine /  plastic pipe crusher machine

Model SWP150 SWP200 SWP210 SWP300 SWP320 SWP380 SWP400 SWP630

Diameter of turning knife(mm)

 150 200 210 300 320 380 400 630
Number of turning knife 9 3 3 3 6/2 groups 12/4 groups 5 9/3
Turing speed of knife(r/min) 730 870 500 640 650 650 500 480
Number of fixed knife 2 2 2 3 2 8/4 groups 2 4/2
aperture of screen panel φ8 φ8 φ8 φ12orφ14 φ8 φ10 φ10 φ10
Crushing capacity(kg/h) 60-200 50-110 80-120 50-250 250-350 100-400 350-450 700-850
power 5.5 4 4 37 11 27.5 13.2 44
Current source 380V50Hz
Size of feeding gate(mm) 150×200 240×350 250×230 260×1200 500×280 268×1120 375320 820610
weight(kg)   300 320 2000 1400 800 980 5000
Outline dimension(mm) 1200*820
*1160 		1000*590
*1090 		800*600
*1400 		1550*1300
*1850 		1613*1150
*1910 		1800*1460
*1380 		2500*1200
*2000 		2500*1550
*2850

 PVC and PE Waste bottle Crusher
