Help CenterNew Style Best Sell Plastic Pet Strap Making Machine
Related Products
-
PP Strap Production Extrusion LineUS$ 20,000 - 40,000MOQ: 1 Set -
PP Tape Extrsuion Machine for Automatic PackingUS$ 20,000 - 40,000MOQ: 1 Set
-
AUtomatic pp Strap Making Extrusion MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
PET Strap Production Line ManufacturerUS$ 30,000 - 50,000MOQ: 1 Set
-
Factory Price PET Strap Making MachineUS$ 30,000 - 50,000MOQ: 1 Set
Specifications
plastic strap making machine1.plastic strap making machine
2.Robust design
3.High-quality spare part
4.Accurate filling
plastic strap making machine is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
PP Strapping Band Production Line
pp strap extrusion line(plastic machine)
pp strap making machine
pp strap making line
PP/PET strap production line/PET strap machine
PP plastic packing strap production line
pp plastic straps production line/machine
Technical Parameter:
Processing Materials:PP Recycled Flakes or Granule
Power: 3-phase 380V 50Hz
| Model | APP-65 | APET-75 | APET-90 |
| Extruder | SJ-65/30 | SJ-75/35 | SJ-90/35 |
| Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
| Drive Motor | 22kw | 30kw | 55kw |
| Two-station Winder | 12-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about80kw | about 90kw | about110kw |
| Line Dimension | 30m×2m×2.2m (L×W×H) | 30m×3m×4.5m (L×W×H) | 30m×5m×6m (L×W× |
Machine specifications:
1) Primary extruder screw: Φ80mm
2) Secondary extruder screw: Φ60mm
3) Primary extruder motor power: 5.5kW
4) Secondary extruder motor power: 3.0kW
5) Primary extruder heating power: 9.8kW
6) Secondary extruder heating power: 9.0kW
7) Heating air oven power: 4.8kW
8) Dehydration motor power: 0.18kW
9) Stretch electrical power: 2.2kW
10) Winder motor power: 0.75kW
11) Production capability: 40 - 60kg/h
12) Deviation degree: < 3.0%
13) Size (L x W x H): 140, 000 x 1, 600 x 1, 300mm
14) Weight: 2, 100kg
15) Outputted product: Machine and hand-use sandwich packaging tape.
Product specifications:
1) Machine-use tape:
A) Width: 9.0 - 19.0mm
B) Thickness: 0.6 - 1.2mm
2) Hand-use tape:
A) Width: 15.0 - 19.0mm
B) Thickness: 1.2 - 1.8mm
Machine Advantages:
1. This line is specially designed for the production of PP Straps. It can produce 2 PP Straps at the same time that saves energy by 20%-30%;
2. Both the Shaping Water Tank and Calibrating Tank are made of stainless steel that the tanks are long-lived;
3. PLC Controller by touching keys with alternative languages, which is safe and easy to operate that keeps good status of all part and ensures the stable performance of whole line and continuous production of PP Straps

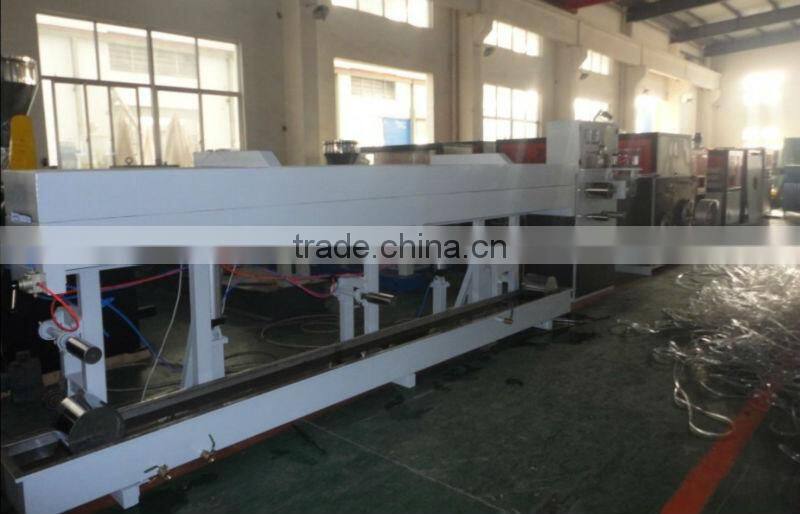

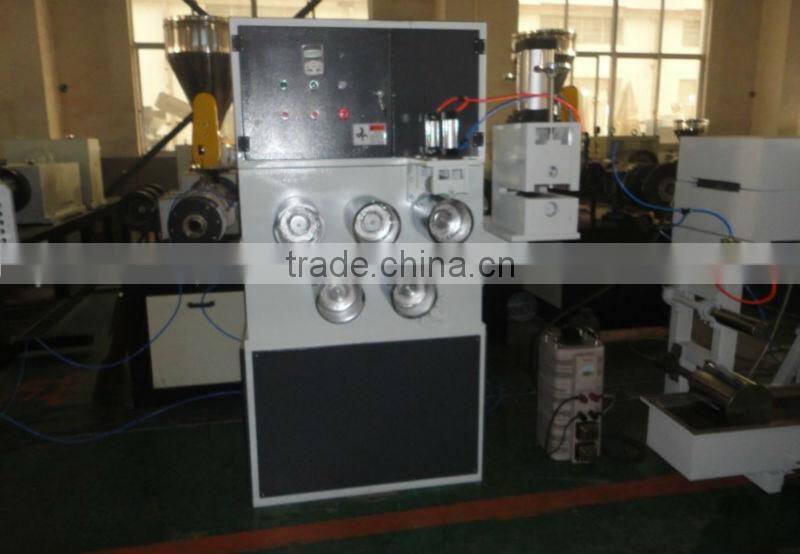

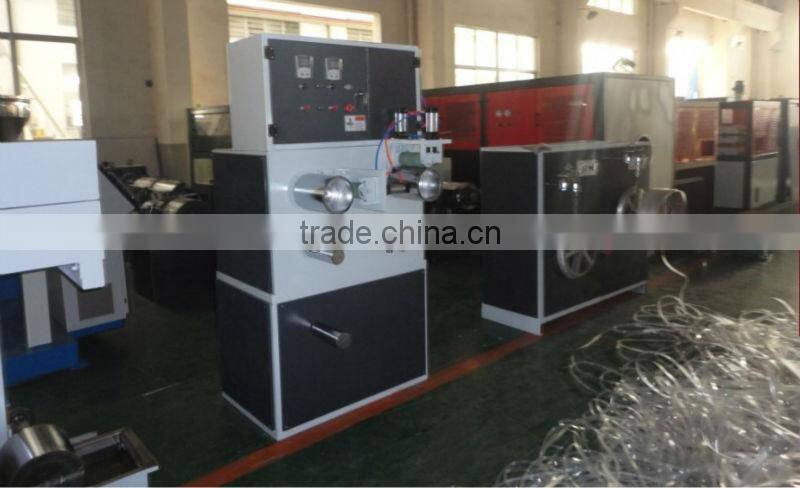

photo of our machine :
