PET strapping band extrusion line
1. General description of PET strapping making machine
Processing material: 100% recycled PET flakes or virgin PET (I.V ≥0.75)
Product width: 9-25mm
Strap thickness: 0.5-1.2mm
Quantity of extruded straps: 2
Max output: 150kg/h
Max Liner speed: 120m/min
Power supply: 380V/3P/50Hz
Installed power: 280KW (production power: about 130KW)
Operators: 2-3workers
Overall dimension: 45m×3m×4.2m
2.Main parameters of PET strapping making machine
Model | SJ65/33 | SJ75/33 | SJ90/33 | |
Band number | One | Two | Two | |
Band specification | 9.5~19mm(Width) 0.5-1.20mm(Thickness) | |||
Output | 50kg/h | 100kg/h | 150kg/h | |
Water flux | 0.6 m3/h | |||
Water pipe diameter | DN15 DN20, DN50 | |||
Compressed Air flux | 0.25 m3/min | |||
Compressed Air pressure | 0.6Mpa | |||
Total Power | 132kw | 186kw | 285kw | |
The length of production line | 25-28m | 28-32m | 35-40m | |
Power | Three-phase four-wire system | |||

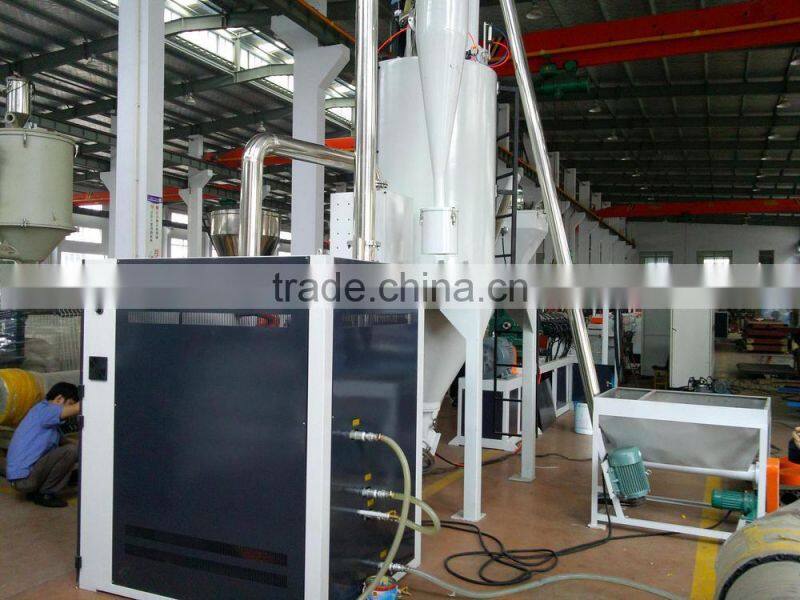

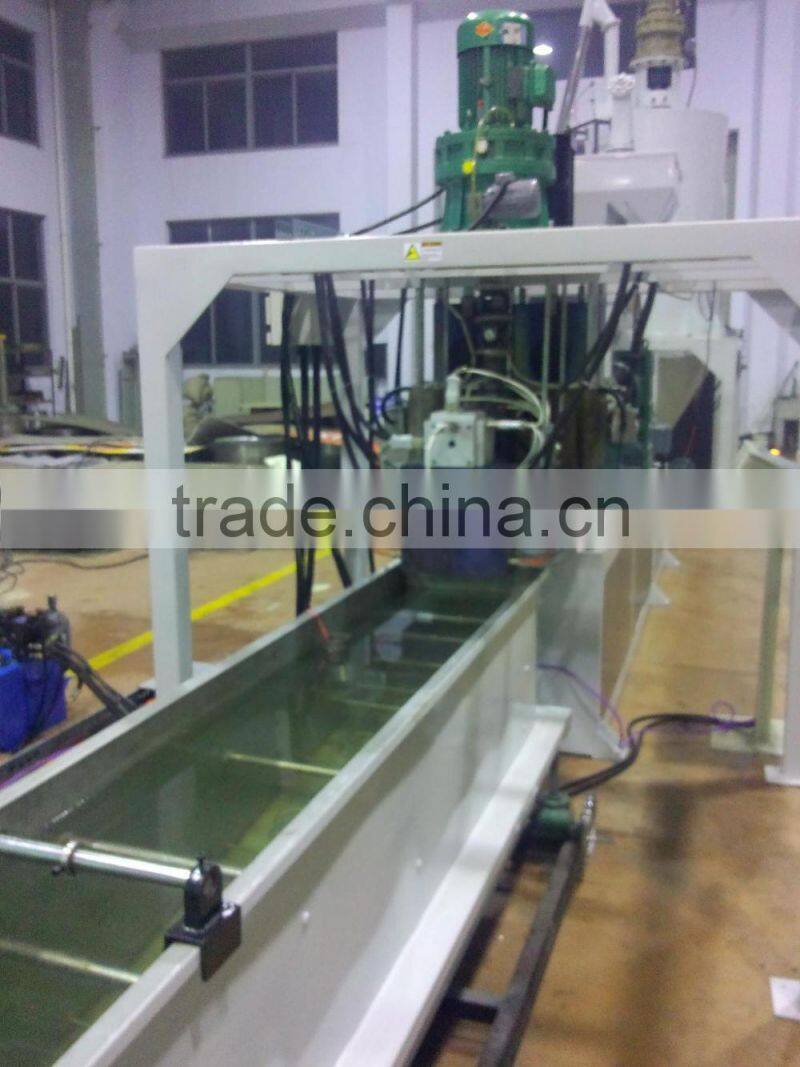

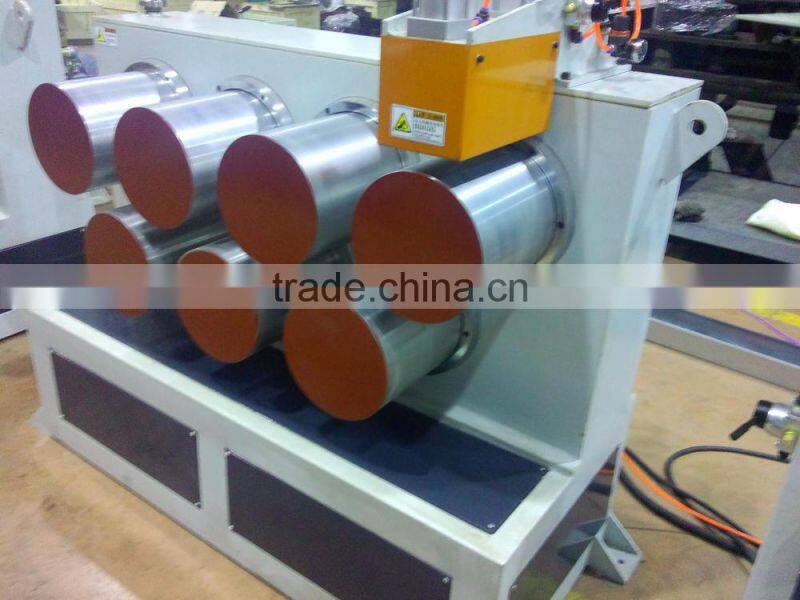

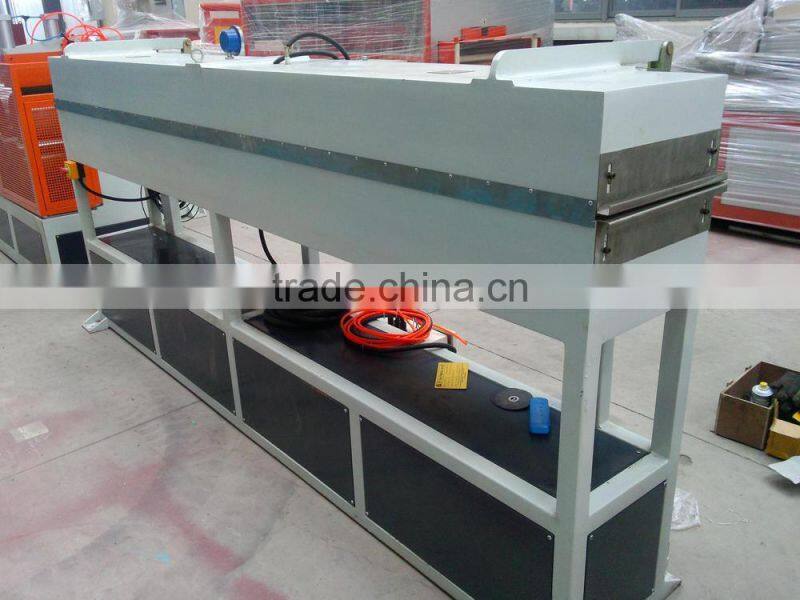

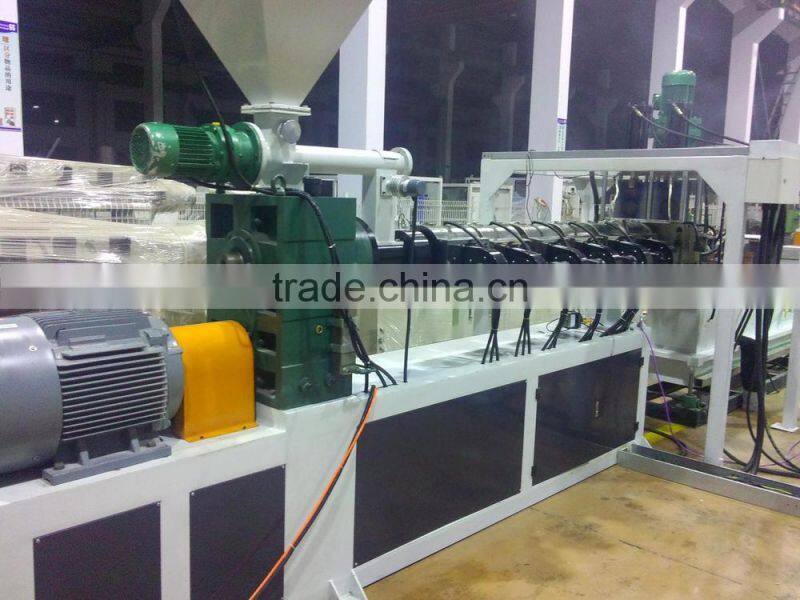

3. Motor photos for your reference
