PET strap making machine
Overview:
The series PET Packing strap production line is new equipment designed by SEVENSTARS. By combining the characters of the same type of machines in domestic and overseas markets, the production line is of the most advanced technology in this field. It is of characters of high efficiency, high output, low power consumption and energy saving.
Features of PET strap making machine
1. Using the recycling bottle slices as raw materials by making them melt directly, which reduces the course of raw material-making
2. With the multi-purpose machine, it can produce PET straps in different specifications directly and doesn"t need to change the mould head
3. The products has the same transparency as made from new polyester slices, but the tensile strength and shock resistance are stronger
4. Low energy consumption, high production capability
5. Easy to operate, saves manpower

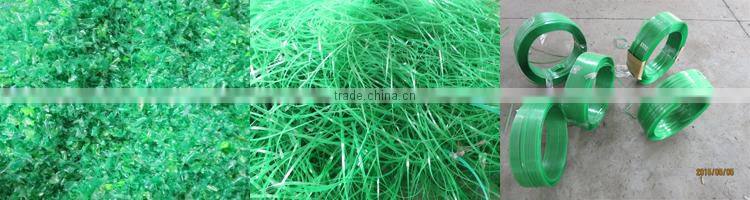

Characters of PET straps
PET Straps have advantages as good stiffness, high temperature resistance. The specific gravity is as 1/5 as steel. The straps can be used for packing in various areas. The characters of such straps are as follows: high tensile strength, small percentage elongation, resistance to impact, not easy to be broken and good softness.
PET strap extrusion line consists:
No. |
Item |
Qty |
1 |
Vacuum autoloader |
1pc |
2 |
PET dryness system |
1pc |
3 |
Single screw extruder |
1pc |
4 |
Die head |
1pc |
5 |
Water trough calibration system |
1pc |
6 |
First pre-heating machine |
1pc |
7 |
Short wave infrared ray heating oven |
1pc |
8 |
First tensile pre-heating machine |
1pc |
9 |
Short wave infrared ray heating oven |
1pc |
10 |
Second tensile machine |
1pc |
11 |
Embossing machine |
1pc |
12 |
Three rollers cooling machine |
1pc |
13 |
Tight hot calibration machine |
1pc |
14 |
Third haul-off |
1pc |
15 |
Double winder |
2pcs |
|
16
|
SML Chillier |
1pc |
MKS-A mould Temperature controller |
2sets |
Partial technical parameters of PET strapping production line
Model number |
SVPET |
Main motor |
30-90KW |
Motor drive |
AC |
Power supply |
380V 50HZ or customized |
Strap width |
9-25mm |
Strap thickness |
0.5-1.5mm |
Drying volume |
100kg/h |
Loading power |
3KW |
Daily output |
1000-2000 kg/day |
Worker |
2-3 |
Workshop size(L*W*H) |
25000*5000*6000mm |
Zhangjiagang Sevenstars Machinery Co.,Ltd. was founded in 2006. it is an enterprise specialized in producing plastic machinery.it lies to the south of the middle and lower reches of Yangtze River.It is located in the National civilization and hygienic city-zhangjiagang , Surrounded by the economic belt of Suzhou,Wuxi,Changzhou,Nanjing and Shanghai.Both land and river transports are rather convenient.We sell our products to Europe middle,Africa and Asia,etc country and region.Our products enjoy a high reputation home and abroad.
1.Upon request Supplier will dispatch engineers to install the machines and do commissioning together with customer’s workers.
2.Meanwhile, engineers will teach how to operation, maintain for buyer’s engineers, worker on site.
3.We also offer long term technical guidance.
1.How about the quality about this machine?
Answer: yes,my friend,please rest assured,we have nearly 10 years experience for this machine.quality is no problem.
2.How about the output about this machine?is the data real?
Answer: my friend,we have tested that machine many times,then get this data,it is real and can meet your need.
3.Wether you deliver in time?
Answer: sure,once we receive your payment, then delivery immediately.
4.What about your after service?
Answer: we can send our engineers to you factory and offer long term technical guidance.
Welcome to your kind inquiry!
