Specifications
PP strapping band extrusion machine1.6 strands
2.Output:250kg/hr
3.speed:120m/min
duct width 5-19m

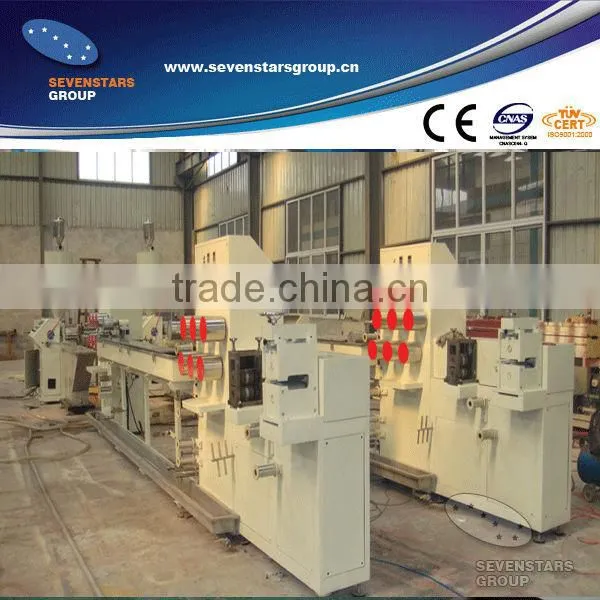

PP strapping band extrusion machine/plastic strap extruder
I. Production Specification:
1. Power 380v/3P/50Hz
2. Material PP
3. Extruding capacity 250kg/hr
NOTE: The extruding capacity may be changed as a result of the processing materials and different process conditions.
4. Product specification width 5-19mm. thickness 0.35-1.0mm
5. Speed max.120m/min
6. Mid-height of extruder 1000 mm
7. Control Direction From left to right
8. Total power 160kw(Energy consumption: Appro.96kw)
9. humidity <85%
10.temperature 0-40°C
11.Cooling cycling water <20°C >0.3Mpa ~30T/h
peressed air 0.4m³/min>0.5MPa
13.Overall dimension 36m×6m×4.5m
(36 meters to be overall dimensions including winders.)
II. Devices list:
Serial no. |
Description |
No. of Sets |
1 |
mixer |
1 set |
2 |
SJ-90/30 Single Screw Extruder |
1 set |
3 |
hydraulic screen exchanger |
1 set |
4 |
Melt pressure pump |
3 sets |
5 |
Die head group |
3 sets |
6 |
Cooling trough |
1 set |
7 |
The first hauling off machine |
1 set |
8 |
Thermal oven |
1 set |
9 |
The second hauling off machine |
1 set |
10 |
Embossing machine |
1 set |
11 |
Annealing Oven |
1 set |
12 |
the Third Haul off machine |
1 set |
13 |
Cooling Tank |
1 set |
14 |
The fourth hauling off machine |
1 set |
15 |
Electrical control system |
1 set |
III. OUTPUT PARAMETERS EXAMPLE (only for reference)
PP STRAP “EMBOSSED”
Strap width (mm) |
Strap thickness (mm) |
Strap weight (gr/mt) |
No of straps |
Speed (mt/min) |
Production (kg/h) |
5 |
0.5 |
1.6 |
6 |
120 |
70 |
9 |
0.6 |
3.2 |
6 |
120 |
138 |
12 |
0.6 |
5.3 |
6 |
120 |
240 |
15 |
0.6 |
6.6 |
6 |
105 |
250 |
15 |
0.8 |
8.8 |
6 |
78.9 |
250 |
19 |
0.85 |
11.5 |
3 |
120 |
250 |
More information,please contact me any time,my Skype : xi.summer
