PP strap making machine/ strap extrusion line
- 50 Set / Sets per Month
- shanghai
- T/T D/P D/A
- computerized air cushion machine
- Polystyrene EPS Hot Foam Cups Machine
- HDPE water pipe production line gas pipe production line plastic HDPE pipe making machine
- HDPE PE Pipe Extrusion Making Machine HDPE water pipe production line gas pipe production line
- PVB glass laminated film production line
- PET-GRIP Cement Lining Drainage Board Production Line
Product Details
Condition: | New | Application: | Other, strapping band | Plastic Processed: | PP |
Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Jiangsu, China |
Brand Name: | SEVENSTARS COMPANY | Model Number: | SEVPP80 | Voltage: | 380V, 50Hz, 3phase(can customized) |
Power(W): | 80-130KW | Dimension(L*W*H): | L (22m) *W (5m) *H (6m) | Weight: | 8000KG |
Certification: | CE AND ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
This plastic mahcine PP strap band product for packaging.This line is comparatively low cost.The line speed is 80m/min.The width and thickness of the strap band is adjustable.
PP Bale Strap Machine is a renewed and improved design, and is special for producing the polypropylene packing strip.
The whole machine includes the extruder, mould, cooling tank, haul-off device, embossing device, winder and electrics controlling part.
The screw is with the special design and treatment and can ensure the excellent strip quality.
The whole equipment has the advantages of high capacity, excellent plasticization, strong processing adaptation, easy operation and overhaul.
Every technical index reaches the international developed level
Strap size can be from 5-19mm. output is around 60-100kg/hr
single and double output PP strap making machine :
1) single screw extruder
2)width:5-19mm
3) Thickness:0.5-1mm
Equipment list of PP strap making machine (double output)
No | Name | Quantity |
1 | Vacuum feeding | 1set |
2 | Hopper dryer | 1set |
3 | SJ90/28 single screw extruder | 1set |
4 | Net exchanging device | 1set |
5 | Mould | 1set |
6 | Water cooling tank | 1set |
7 | Five rollers traction unit | 1set |
8 | Stretch forming oven | 1set |
9 | Traction roller unit | 1set |
10 | Stretch forming oven and water cooling system | 1set |
11 | Embossing traction unit | 1set |
12 | Double disk winder | 2sets |
12 | Water chiller | 1set |
13 | Color mixer | 1set |

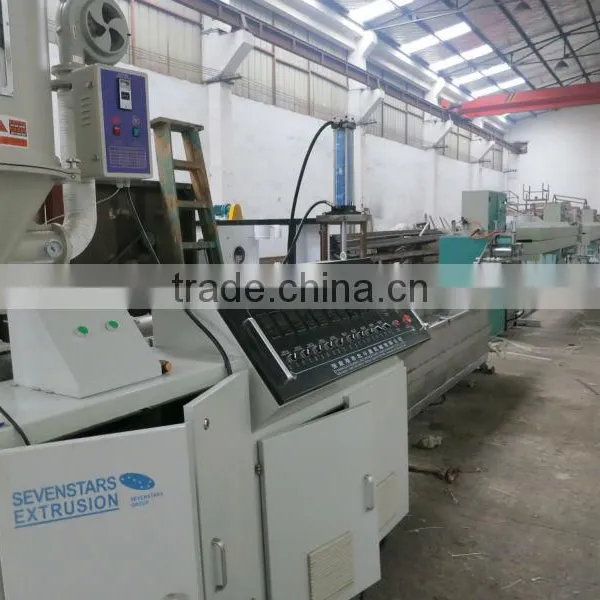

Photos of PP strap extrusion line/PP strap production line/ PP strap making machine
Technology service and after-sale service
Technology service | the supplier provide service manual and maintenance instruction of main electric appliance ,limb , usage manual of equipment, We also supply water,electricity,gas of equipment and installation drawing. |
After-sale service | the supplier is responsible for installation,debug and training, we will realize guarantee of repair; replacement of substandard products within one year. After the machine leaves factory. Fittings of the machine will supply at preferential price after one year . |
Debugging | The seller will send one or two technician to the buyer'plant to debugging, and the tickets ,eating ,transportation and visa fee will be paid by the buyer , also including 50USD salary/person /day |
Why choose SEVENSTARS?
- We supply all the technical support,such as engineers,drawings,and instruction manual.
- We send one or more than one engineers to client for installing and adjust all the machinery
- Buyer also can sent workers to our workshop for learning how to conduct Plastic extruder
- Supply formula guide service and staple raw material purchase.
- We could supply the Feasibility Analysis Report for the project.
- We could supply turnkey project to you.
- We have good reputation from our customers both at home and abroad.
We have many type machine in stock for checking; Welcome to VISIT US;
