Specifications
.Compelet automatic2.Lower energy consumpation
3.Esay operate
4.Siemens PLC control
Plastic Pellet Weighing Packing Machine
Feature of Plastic Pellet Weighing Packing Machine :
1. Compact sturdy design for installation in very tight spaces.
2. Simple and thorough machine cleaning. No below the level of the filling spout.
3. Machine designed speciffically fpr hygienic bagging and packaging operations.
4. Fast bag changeover to handle different bag dimensions.
5. Continuous bag transfer from bag pick up to bag closing avoids product contamination.
6. Reduced installation costs due to integrated PLC controller.
7. Simple system operation with user friendly touch panel and integrated graphical user interface
8. The machine have the photoelectricy device, avoiding to follow down the materail, if the bag cannot be open.
Weighing range |
20-50kg |
Weighing accuracy |
±0.2-0.5% |
Bag size (L*W) |
940*450mm(L*W) 940*450mm(L*W) |
Weighing rate |
600bags/h |
Power/current |
7.5KW |
Air supply pressure |
0.36MPa |
Metering mode |
Suspension sensor |
Frequency/voltage |
50Hz/60Hz/220V/380V |
Power supply mode |
3-phase 5-wire system |
Related Electric Elements List of Plastic Pellet Weighing Packing Machine :
No. |
Name |
Spec.& Size |
Brand |
1 |
PLC |
S7-200 |
German SIMENS |
2 |
Touch Interface |
EVIEW |
Taiwan Winview |
3 |
Servo Motor |
ECMA-C30604PS |
Taiwan Delta |
4 |
Servo Driver |
ASD-B421-A |
Taiwan Delta |
5 |
Weigh Sensor |
TH100 |
Japan Yamato |
6 |
Contactor circuit breaber |
Dv-V3 |
Schneider |
7 |
Other low voltage electrical |
Schneider |
|
8 |
Air cylinder |
Su40*150 |
Taiwan AirTec |
9 |
Solenoid Valve |
4V210-08(DC24V) |
S. Korea YSC |
10 |
Other pnueumatic element |
Taiwan AirTec |

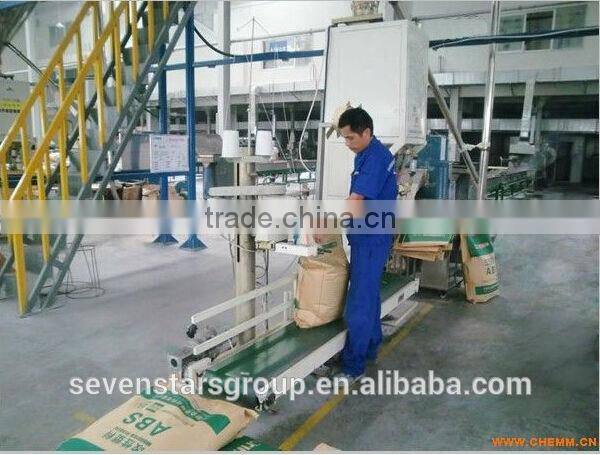

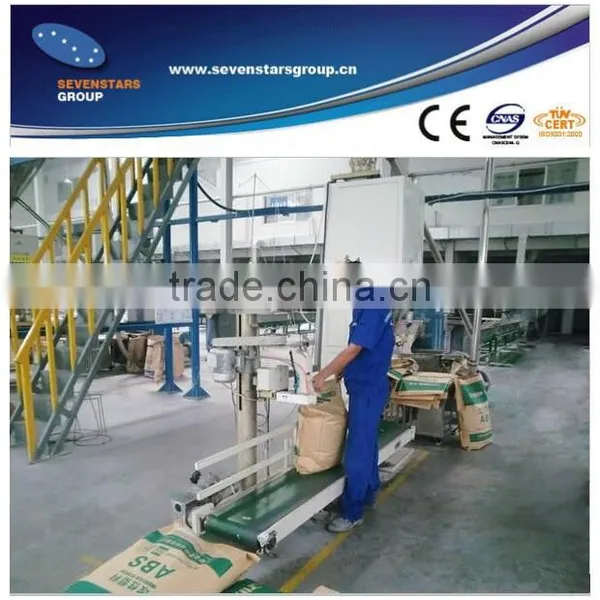

photo of Plastic Pellet Weighing Packing Machine
