high quality plastic pipe winding machine
- 5 Set / Sets per Month
- shanghai
- T/T D/P D/A
- Wuxi Boyu PP Floor Extrusion Production Line Equipment
- PP floor production line PP floor extrusion equipment
- PVC homogeneous and transparent extruded floor production line equipment
- Homogeneous and transparent PVC flooring production line
- Wuxi Boyu 110 LVT flooring production line equipment
- 110 type SPC floor extrusion production line mechanical equipment
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | sevenstars | Model Number: | winder |
Product Description
Specifications
1.plastic winding machine for pipes2.PE pipe
3.double stations and single station
petitive price

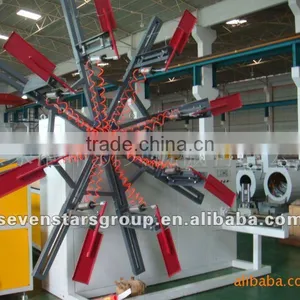

Plastic Pipe Winder
1. Plastic winding machine for pipes
2. single & double station
3. for pipe diameters from 63-110mm
Plastic Pipe Winder
The machine is mainly used in winding-up and packing of aluminium-plastic compound pipe, cross-linking compound and other plastic soft pipes. It adopts automatically winding, adjusting winding speed and winding method. It has two disk for continuous winding. It adopts air-operated method. The wheel rib of the winding up wheel adopts air-operated opening and closing. It is equiped with a ray creel stand to automatically wind displacement. It reaches winding up orderly. The machine structure is compact. Its automatication is high. Its appearance is beautiful and its operation is convenient.
Technical data | 1600Type Single Disk Winder | 3000Type Single Disk Winder |
Suitable pipe diameter | Ø16-63mm | Ø63-110mm |
Winding inner diameter | 550-1000mm | 1000-3000mm |
Winding Speed | 0.5-40 m/min | 0.5-50m/min |
Winding Width | 300-500mm | 300-500mm |
Winding Moment Motor Spec. | 16N.m | 30N.M |
Air compressor | 0.6MPa | 0.6MPa |
Dimensions(LXWXH) | 2700x1700x1800 | 3500X2000X3500 |
Weight | 800kg | 3000kg |
