High quality PVC Table Plank Extrusion Machine
- 100 Set / Sets per Month
- Shanghai port
- T/T Credit Card PayPal
Product Details
Condition: | New | Application: | Other, Plates, Kitchen Cabinet Board, Building Board, Advertisement Board | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | Automatic | Place of Origin: | Jiangsu, China |
Brand Name: | Horse Rider | Model Number: | SJSZ80/156 | Voltage: | 380-440V |
Power(W): | 120kw | Dimension(L*W*H): | 25m*3m*3m | Weight: | 20t-28t |
Certification: | CE and ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PVC Table Plank Extrusion Machine
- Machine introduction
PVC Foam Board Machine is our latest updated products. It's continuously improved on the basis of requirements and feedbacks from our customers and combined with foreign advanced technology. It shows superior performance, high reliability and practicality with its compact structure, advanced configuration and outstanding output in the production of 3-20mm thick, high-qualified PVC foam board.
Our extrusion line adopts Celuka foam technology, which can produce a kind of PVC/WPC foam boards with superior quality. These processes result in a "skinning" or outer layer of foam board and it achieves excellent surface hardness, rigidity and toughness and more scratch-resistance. This kind of furniture foam board has smooth and shining surface with characteristics of lightweight, scratch-resistant, durable, water and weather resistant, anti-corrosion, impervious to salts, insects and many chemicals including some acids. PVC foam board can be nearly 100% recycled and reused. Besides, PVC foam board can be worked like wood with the tools for wood. It’s suitable for sawing, cutting, nailing, screwing, planning and sticking. It’s the perfect substitute for wood plates and steel plate.
- Machine list :
No | Machine name | parameters |

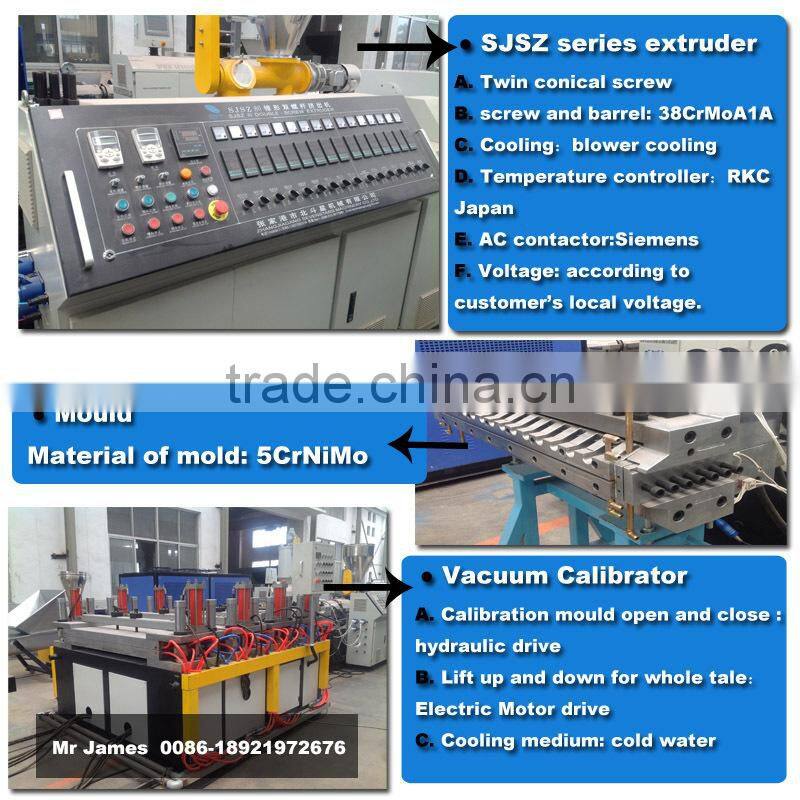

1 | Main extruder | 75kw (speed adjusted by SIMENS inverter) 80/156 conical double screw OMRON Temperature controller Output is about 400kg/h. Automatic feeder |
2 | Mould | (3mm-20mm) x1220mmx2400mm |
3 | Calibration Unit | Calibration plate: 1500mm× 500mm 4couples |

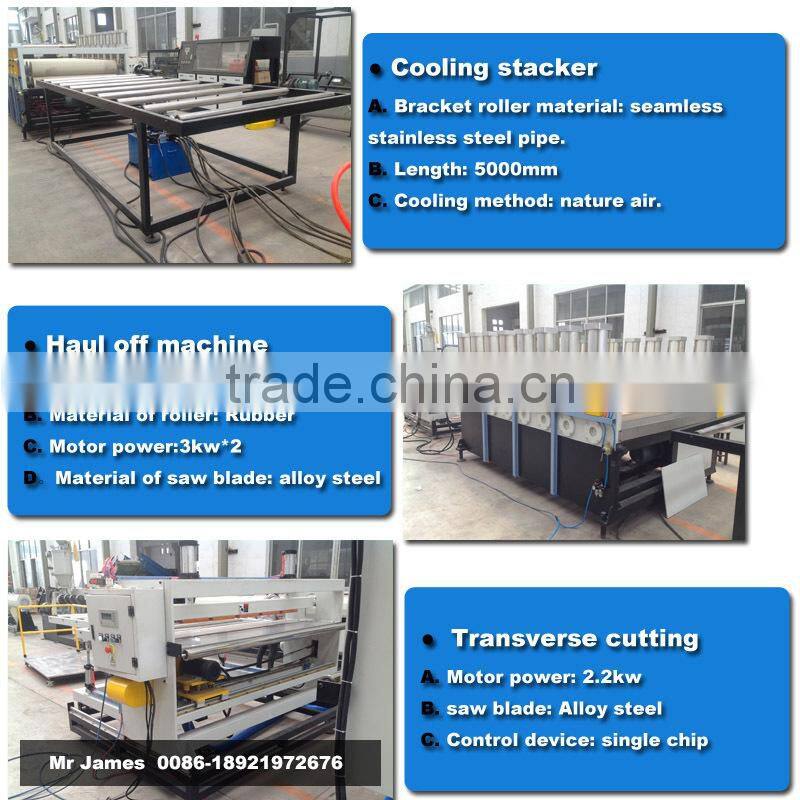

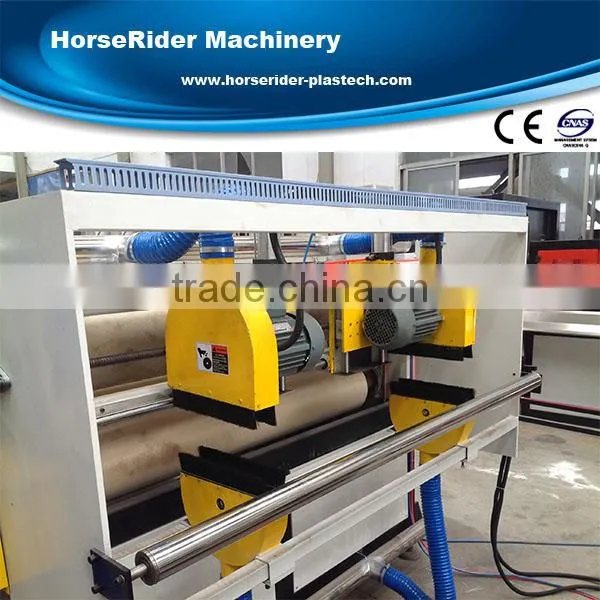

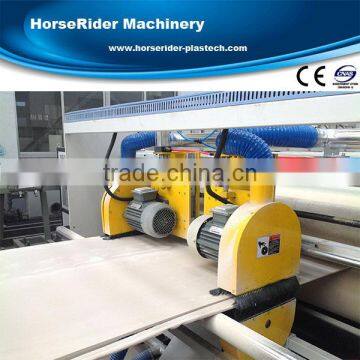

4 | Cooling roller system | Length: 6000mm Trimming knife: 3 sets |

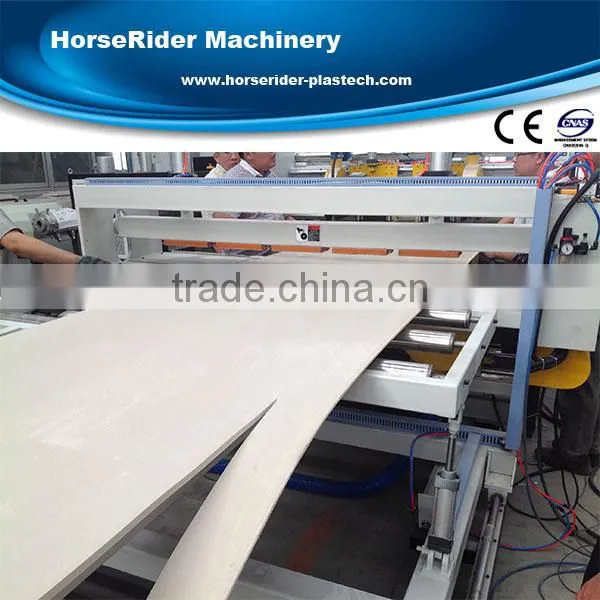

5 | Haul off machine | 8 pairs rubber rollers (controlled by inverter) and electric trimming machine |
6 | Cutter | controlled by inverter |

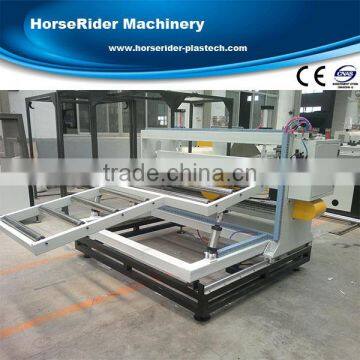

7 | Stacker |
- Famous electrical configuration:
1. Main motor frequency controller: SIMENS or ABB
2. Temperature controller: OMRON or RKC
3. AC controller: SCHNEIDER or SIMENS
4. Thermal overload relay: SCHNEIDER
5. Switch: SCHNEIDER
- Production processing:
Material Mixing: PVC + additives or PVC + wood powder + additives

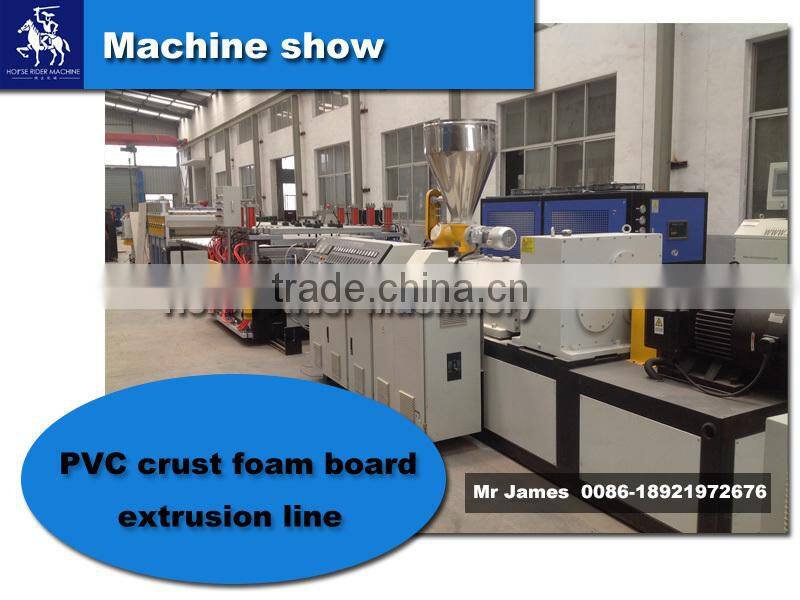

Extrusion Processing: mixed material going through the extruder, Mould, calibration unit, cooling carrying roller and trimming cutter, and delivery device.
Final Products: PVC or WPC foam board
SPECIFICATION OF FINISHED BOARD:
Specifications of PVC WPC Foam Board | |
Length | 1830mm/2440mm |
Thickness | 3mm~20mm |
Width | 915mm/1220mm |
Density | 0.37g/cm 3 -0.85g/cm 3 |
surface | Smooth or wood grain pattern(timber ridge) finish |
color | White, wood or all feasible colors as requested |
Company Information & Professional Service
Zhangjiagang Horse Rider Machinery Co., Ltd., located in Zhangjiagang city, China, is a professional manufacturer of PVC Celuka Foam Board production line. With more than 10 years' research and development, Horse Rider now are proud of these production lines: PVC/WPC (Wood Plastic Composit) crust foam board extrusion line, PVC crust foam board extrusion line, PVC wood plastic foam board extrusion line, PVC building board extrusion line and PVC free foam board extrusion line.
Pre-sale service:
To provide information and market research,to provide consultation,to provide many kinds of conveniences and market service,etc. Products: PVC Foam Board Machine...
The main purpose of pre-sales service is to help customers make the project planning and system requirements analysis. Make our products maximum to meet clients’ requirements. Also play the greatest overall economic benefits of customers’ investment.
After-sale service:
To install products and test products for customers.
To provide the formulas and technologies of relevant products and the information of chemical materials manufactories.
To direct technology aspect of relevant use according to customers’ requirements
To provide technical training for clients’ employees.
To be responsible for maintenance service, door-to-door service under the necessary circumstance.
Technology support:
To provide installation and test for the machine.
To provide formulas and technology of relevant products.
To provide information of chemical material manufactories.
To provide technical training for clients’ employees.
