PVC Fibre Reinforced Hose Production Machine
Application:
This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building.

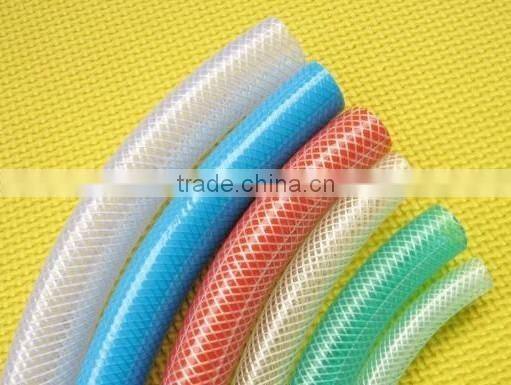

The Final Product
Parameter:
Item |
Description |
Data |
1 |
Single Screw Extruder |
2 sets |
|
Screw and Barrel Material |
38CrMoAlA |
|
Treatment of Screw and Barrel Surface |
Nitriding |
|
Heating Mode of Screw Barrel |
Cast-aluminium Heating Circles |
|
Cooling Mode of Barrel |
Air Blower |
|
Main Motor Power Speed Adjusting |
Japan Omron Frequency Inverter |
|
Gearbox Reducer |
Hardening Gear Surface, Low Noise |
2 |
Die Head |
1 set or According to Customer’s Need |
|
Specification |
5-50mm |
3 |
Water Cooling Tanks |
2 sets |
|
Tank Material |
Excellent Stainless Steel |
|
Tank Length |
2000-3000mm |
|
Tank Thickness |
3mm |
|
Water Pump |
2 sets |
4 |
Fiber Winding Machine |
1 set |
|
Motor |
2.2KW |
|
Speed Adjusting Mode |
Japan Omron Inverter |
5 |
Hauling off Machine |
2 sets |
|
Motor Power |
1.5kw*2 |
|
No.of Belt |
2 *2 sets |
|
Speed Control |
Japan Omron Inverter |
5 |
Twin Position Coiler |
1 set |
6 |
Main Electrical Components |
Omron, ABB, Schneider, Delix, Simens etc. |
|
Torque Motor |
2.5-6KN/m |
Optional Device |
|
|
1 |
Printer |
1 set |
2 |
Oven |
1 set |
3. |
PVC Soft Granulating Line |
1 line |
Model |
JDF45 |
JDF55 |
JDF65 |
JDF75 |
Extruder |
SJ45/30 |
SJ55/30 |
SJ65/30 |
SJ75/30 |
Diameter range (mm) |
6-16mm |
8-25mm |
12-50mm |
20-50mm |
Output(kg/hour) |
20-40 |
30-60 |
40-80 |
60-110 |
Installation power(kw) |
35 |
42 |
50 |
65 |

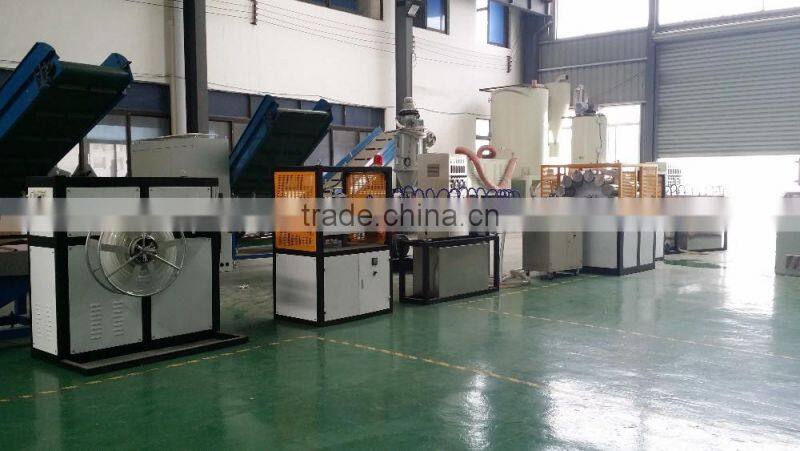

PROCESS FLOWS:
SJ-Single Screw Extruder--Water Cooling Tank--Hauling off Machine--Fiber Winding Machine--SJ-Single Screw Extruder--Water Cooling Tank--Hauling off Machine--Twin Position Coiler
The Extruder

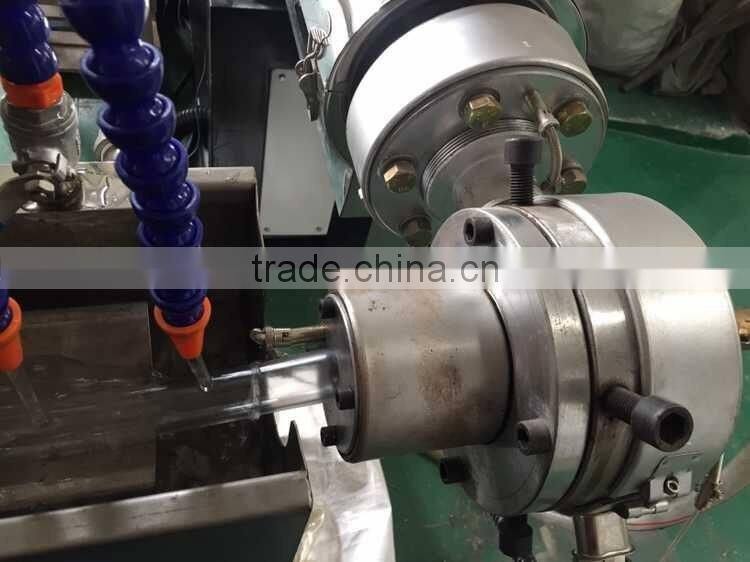

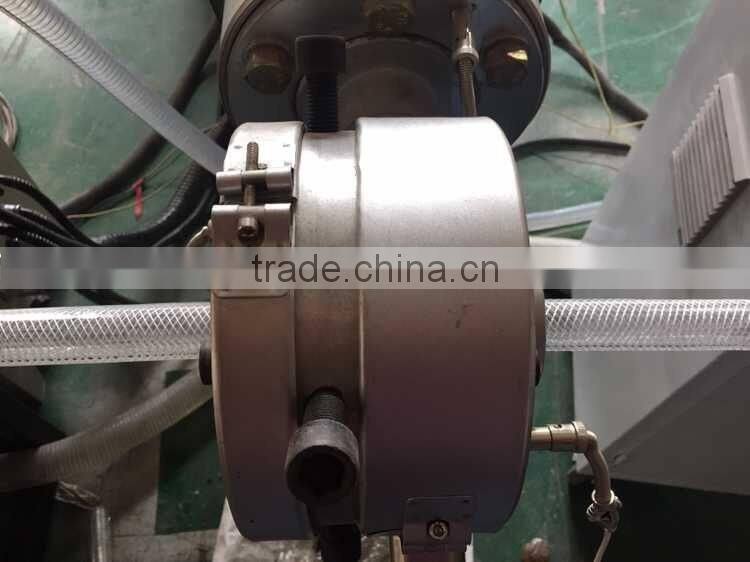

The Die-Mould

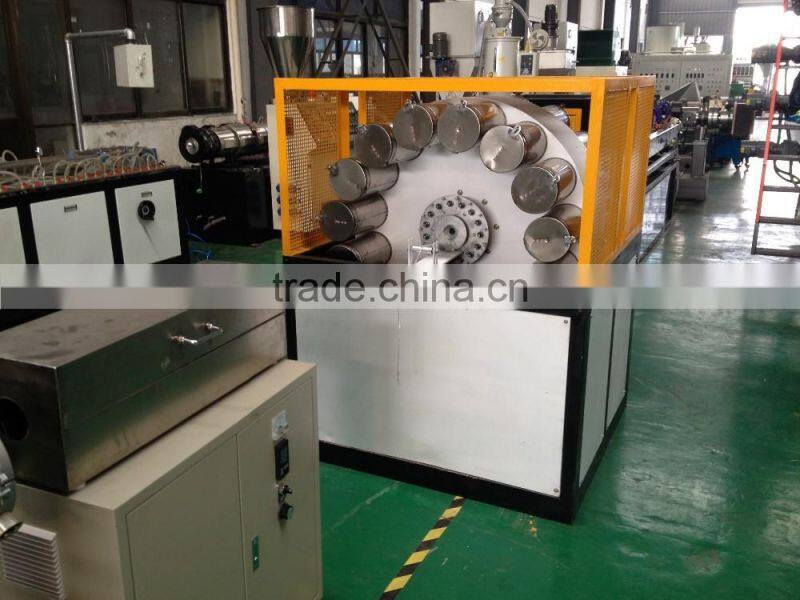

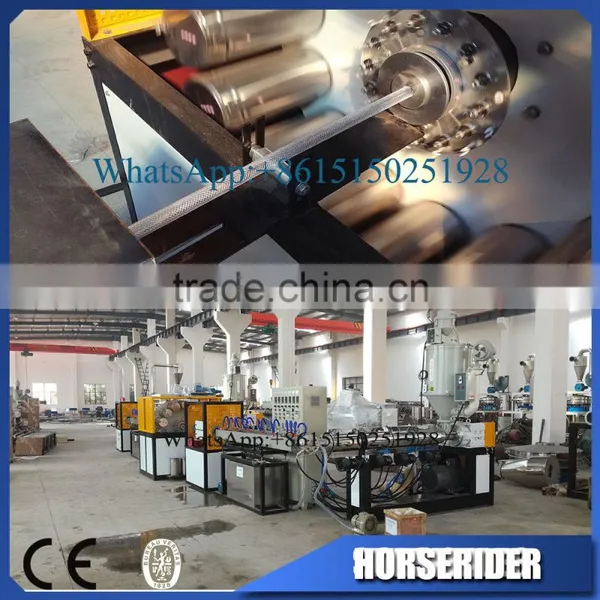

Fibre Winding Machine

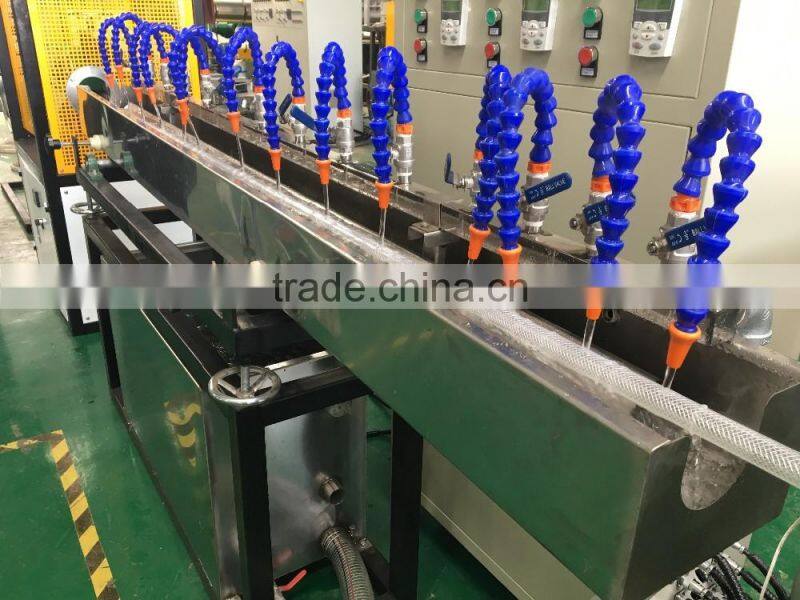

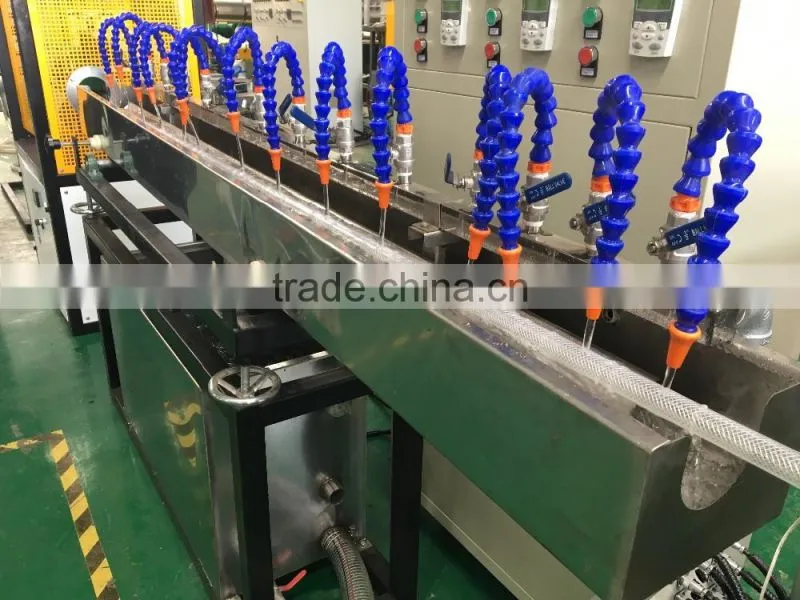

The Cooling Tank

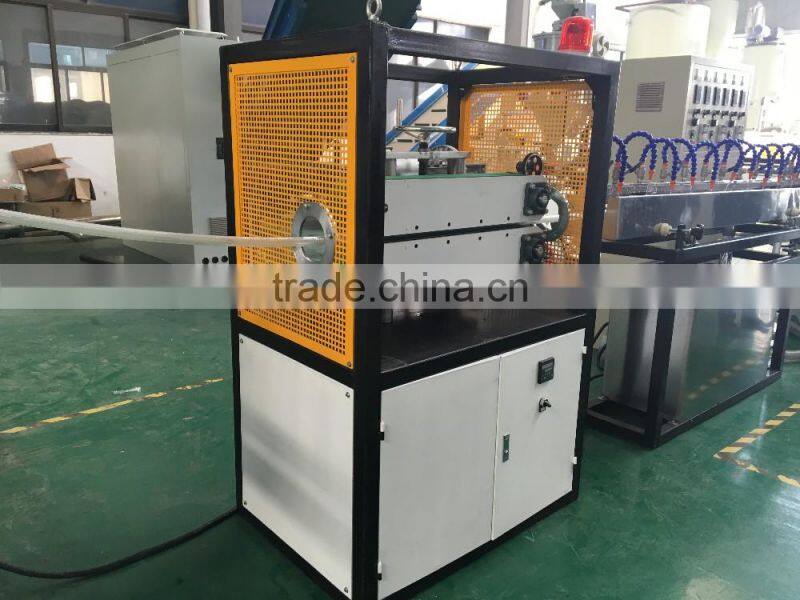

The Haul-off Machine

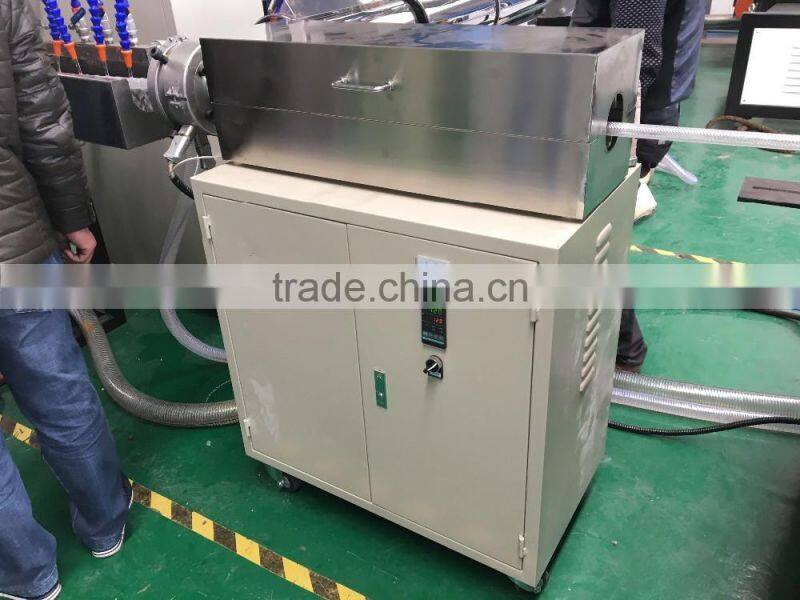

The Oven

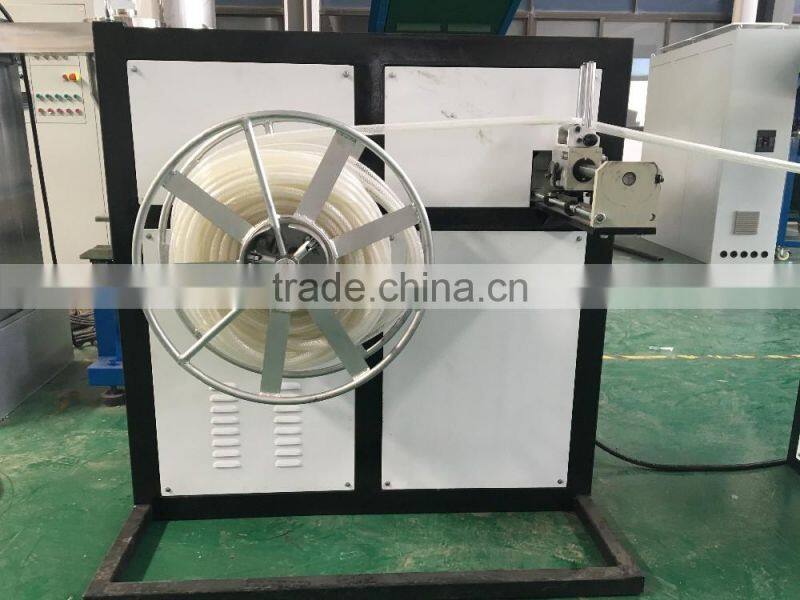

The Pipe Winder
