CPVC UPVC two inch pipe for water supply making machine price/ pvc electric conduit pipe production line cost
- 30 Set / Sets per Month
- SHANGHAI
- T/T
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | Automatic | Place of Origin: | Jiangsu, China |
Brand Name: | HORSERIDER | Model Number: | SJSZ | Voltage: | 380V 50HZ |
Power(W): | it depends | Dimension(L*W*H): | 15M*2.5M*2M | Weight: | 15T |
Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
item | PVC63 | PVC160 | PVC250 | PVC315 | PVC400 | PVC630 |
Specification | 16-63 | 75-160 | 160-250 | 250-315 | 400-630 |
|
Vaccum shaped tank | 6000mm | 6000mm | 6000mm | 6000mm | 6000mm | 6000MM |
vacuum pressure(Mpa) | -0.03~0.08 | 0.03~0.08 | -0.03~0.08 | 0.03~0.08 | -0.03~0.08 | 0.03~0.08 |
Max traction force(N) | 10000 | 15000 | 20000 | 25000 | 30000 | 50000 |
Traction speed/min/max | 10 | 6 | 4 | 3 | 2 | 1.4 |
Effection traction length | 1000 | 1500 | 1500 | 1500 | 1800 | 1600 |
Compressed air capacity m3/h | 0.4 | 1.0 | 1.2 | 1.2 | 1.5 | 2.0 |
Water consumption m3/h | 5 | 7 | 8 | 8 | 9 | 12 |
Line length | 20 | 30 | 30 | 30 | 36 | 42 |
Φ12-Φ630,Φ710-Φ1000 series PVC pipe extrusion line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing, cable laying etc. This line is composed of conical twin-screw extruder, vacuum calibration tank, haul-off, cutter and stacker etc. The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality products. The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw, ten-claw, twelve-claw etc. You may choose saw blade cutting type or planetary cutting type, It is additionally attached with length counter and intensifying device. This line with reliable performance and high production efficiency. Our company can also manufacture special pipe production lines, e.g. Spiral pipe and core foaming pipe according to your requirements.
Spring outloader
PVC PIPE EXTRUDERS

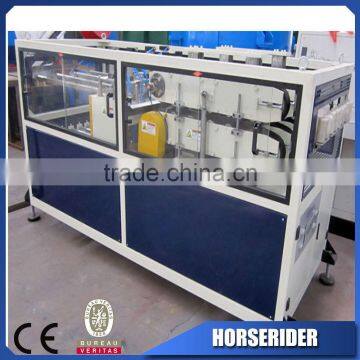

HAUL-OFF MACHINE
If you are interested in our products just feel free to contact with me.
