Home > Products > PP/PET strap extrusion line > pp strap making machine/pp strap production line
pp strap making machine/pp strap production line
- 100 Set / Sets per Month
- Shanghai
- T/T Credit Card PayPal
Product Details
Condition: | New | Application: | Other, Sheet, pp pet strap making machine | Plastic Processed: | Other, PP/PET, pp or pet strap making machine |
Screw Design: | Single-screw | Automatic Grade: | Auto pp strap making machine | Place of Origin: | Jiangsu, China |
Brand Name: | Horse Rider Machinery | Model Number: | SJ pp strap making machine | Voltage: | 380V 50HZ pp strap making machine |
Power(W): | 30KW pp strap making machine | Dimension(L*W*H): | 20M*1.2M*1.5M pp strap making machine | Weight: | 8ton pp strap making machine |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
pp strap making line:pp strap extrusion line
pp strap brand making machine:pp strap brand production line
fiber glass pp strap making machine/pp strap band production line
PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
PP Strapping Band Production Line pp strap extrusion line(plastic machine) pp strap making machine pp strap making line PP/PET strap production line/PET strap machine PP plastic packing strap production line pp plastic straps production line/machine
Machine Advantages of pp strap making machine
1. This line is specially designed for the production of PP Straps. It can produce 2 PP Straps at the same time that saves energy by 20%-30%;
2. Both the Shaping Water Tank and Calibrating Tank are made of stainless steel that the tanks are long-lived;
3. PLC Controller by touching keys with alternative languages, which is safe and easy to operate that keeps good status of all part and ensures the stable performance of whole line and continuous production of PP Straps.
Technical Parameter:
Processing Materials:PP Recycled Flakes or Granule
Power: 3-phase 380V 50Hz
PET strap making machine model
Model | SJ-65 | SJ-75 | SJ-90 |
Extruder | SJ-65/30 | SJ-75/33 | SJ-90/33 |
Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
Drive Motor | 22kw | 30kw | 55kw |
Two-station Winder | 60-120m/min,adjustable | ||
Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
Installed Capacity | about80kw | about 90kw | about110kw |
Line Dimension | 30m×2m×2.2m (L×W×H) | 30m×3m×4.5m (L×W×H) | 30m×5m×6m (L×W× |
PP strap making machine model
Model | SJ-65 | SJ-80 | SJ-90 |
Extruder | SJ-65/28 | SJ-80/28 | SJ-90/28 |
Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
Drive Motor | 22kw | 30kw | 55kw |
Two-station Winder | 80-120m/min,adjustable | ||
Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
Installed Capacity | about40kw | about 60kw | about80kw |
Line Dimension | 26m×2m×2.2m (L×W×H) | 26m×3m×3m (L×W×H) | 26m×5m×3.5m (L×W×H) |
Function
1) PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
3) With the multi-purpose machine, produce the PP PET straps in different specifications directly and dont need to change the mould head;
4) Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock resistance are up to the international grade;
5) Low Energy consumption, but high production capability;
6)Easy to operate, save the manpower and two persons for one production line on average
1.More Details Pictures
2.Company office

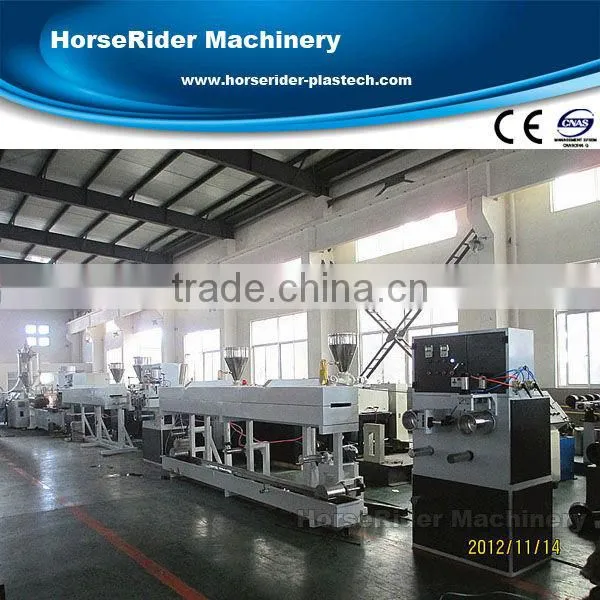

3.Our factory
4.Factory products
5.Delivery
6. certification
