Product Details
Condition: | New | Product Type: | Other, plastic grinder mill | Place of Origin: | Jiangsu, China |
Brand Name: | Horse Rider plastic grinder mill | Model Number: | SWF plastic grinder mill | Voltage: | 380V,3-PHASE,50HZ plastic grinder mill |
Power(W): | 37kw,45kw, plastic grinder mill | Dimension(L*W*H): | 2.35*0.8*1.25M plastic grinder mill | Weight: | depend on model plastic grinder mill |
Certification: | CE,ISO,BV plastic grinder mill | Warranty: | 12 months after installation in local place | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
plastic grinder mill pvc milling machine 200kg pe/pp/pvc plastic miller
1. Widely used in plastic/mine/chemical/metallurgy for mill, especially for callback granule of PP ,PE and PVC plastic.
2. After the proof from the practice factory, the unit can maintain the target in the side of physics and chemical features when adding 20% to 30% power.
3. It is the best unit for plastic factory to solution water and save
Parameter plastic PVC milling machine
Model | SMF-200 | SMF-380 | SMF-450 | SMF-500 | SMF-600 | SMF-800 | |
Blade diameter | 200mm | 380mm | 450mm | 500mm | 600mm | 800mm | |
Lade disk quantity | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | |
Rotated speed | 4500rpm | 4500rpm | 4500rpm | 4500rpm | 4200rpm | 3700rpm | |
Power | main motor | 11kW | 30kW | 30kW | 37kW | 37kW | 45kW |
blower | 2.2kW | 3kW | 4kW | 3kW | 4kW | 5.5kW | |
Shaker size | 600mm | 800mm | 800mm | 800mm | 1000mm | 1200mm | |
Output size | 10-100 mesh | 10-100 mesh | 10-100 mesh | 10-100 mesh | 10-100 mesh | 10-100 mesh | |
Cooling type | air and water | air and water | air and water | air and water | air and water | air and water | |
Capacity | PVC: 100kg | PVC: 200kg | PVC: 250kg | PVC: 250kg | PVC: 350kg | PVC: 500kg | |
P E: 50kg | P E: 150kg | P E: 180kg | P E: 200kg | P E:250kg | P E: 300kg | ||
P P:30kg | P P:70kg | P P: 80kg | P P: 100kg | P P: 160kg | P P: 200kg | ||
Dimensions (mm) | 2000x1700x2000 | 2500x2000x3000 | 2600x2100x3000 | 2600x2100x3000 | 2800x2300x3000 | 3200x2800x3200 |

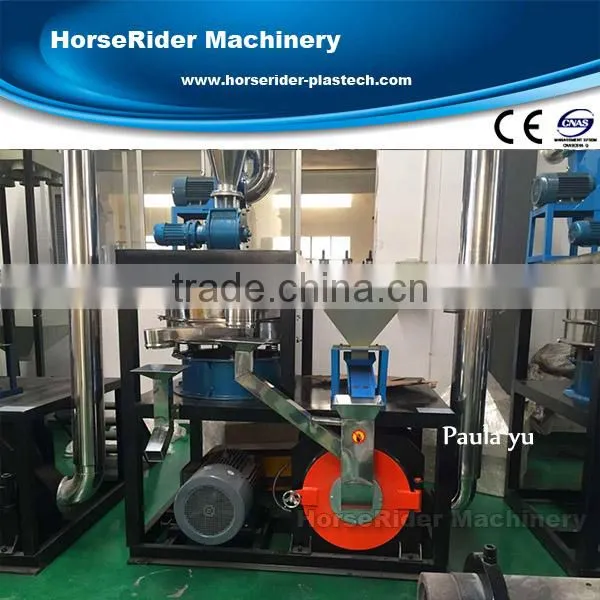

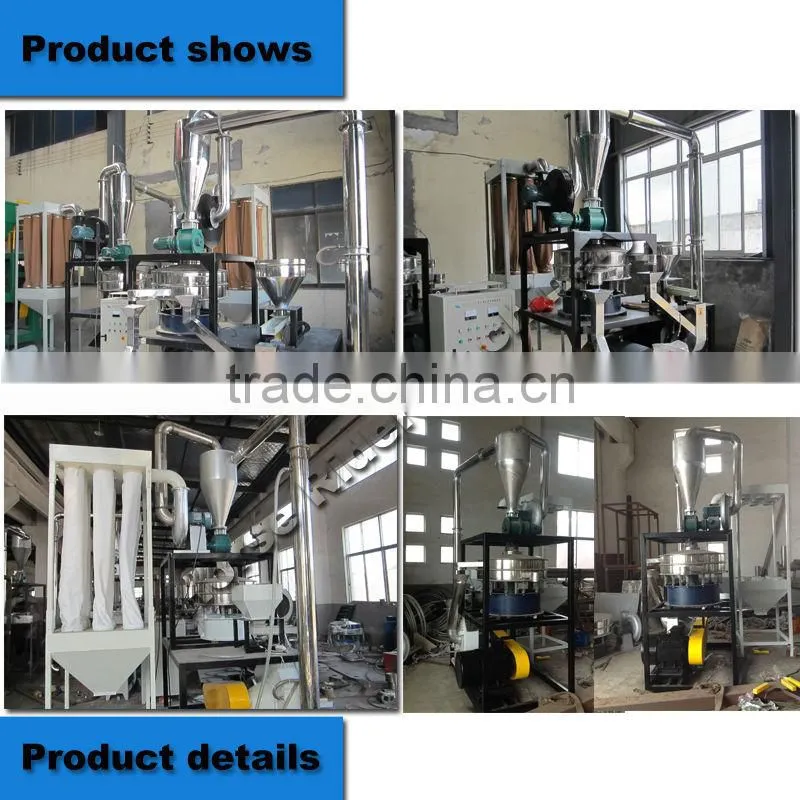

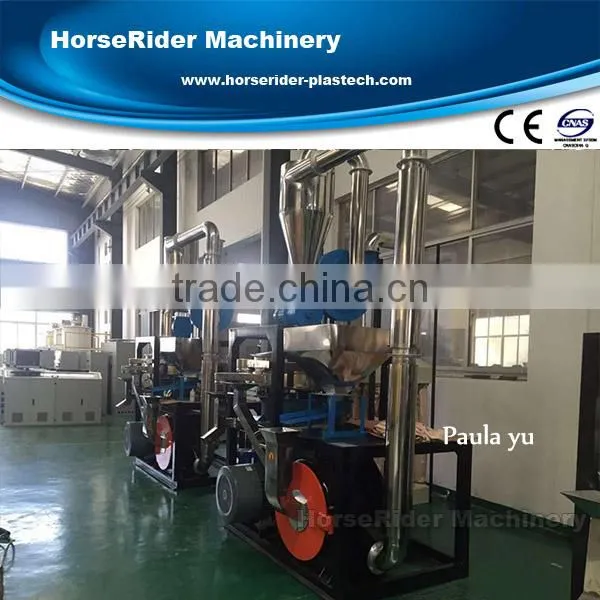

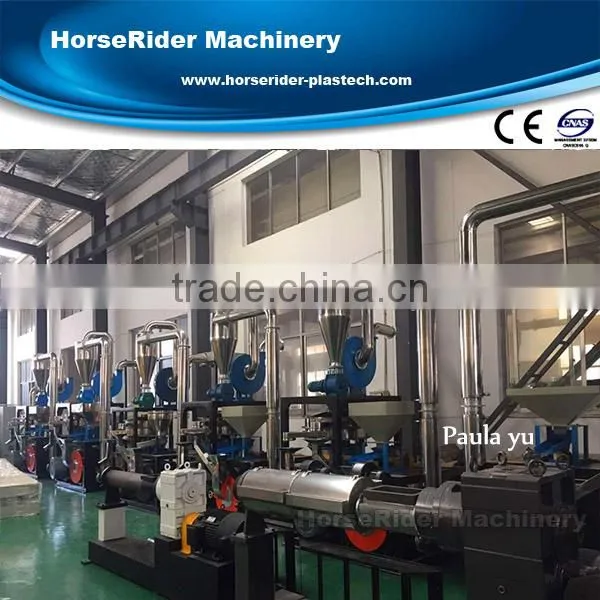

SMF series pvc grinder/mill machine is a prefect machine for processing and grinding thermoplastics material, such as PVC, PE, PP, EVA, PLA, ABS etc, with high output and thin powder.
The SMF series plastic automatic plastic grinding mill is disc-type plastic grinding mill series, which has the advantages of high-yield and low-power.

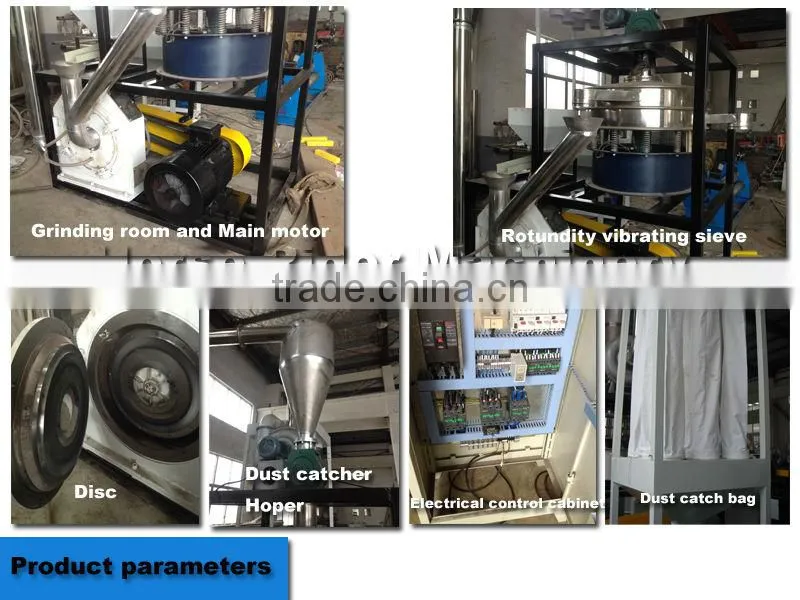

Characteristics of the pvc grinder/mill machine :
- With water cycle and wind cooling, the machine can be applied into processing heat sensitive material.
- With the tail-wagging air stream (partly eddy flow) produced by the tail-wagging of the main shaft capstan of the machine, the input tail-wagging materials collide strongly with the board and the cutting blade, and was grinded into powdery (without sieving).

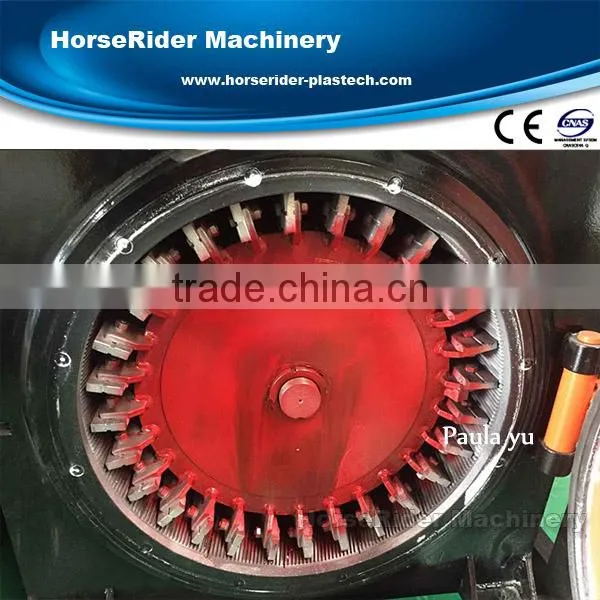

- Both the board and the cutting blade are made of abrasion-resistant steel, with excellent performance after heat treatment.

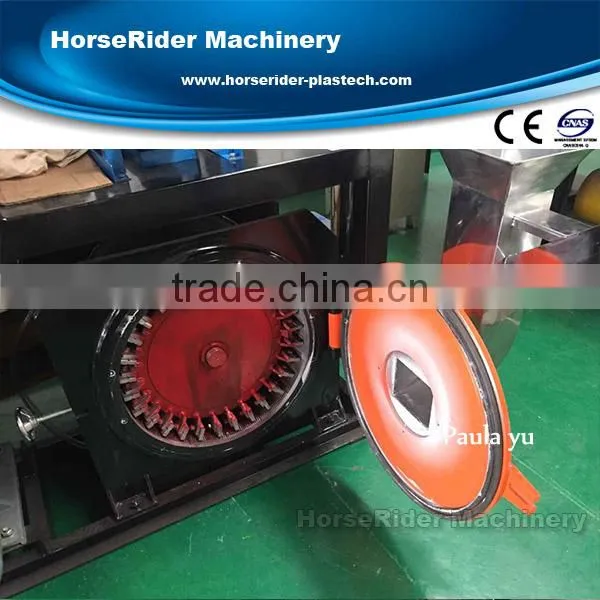

- With severeness of framework, the volume of the machine is quite small. If you open door closure, you can maintain it. It is completely airproof and without any dust leakage.
- With winding reclaiming equipment, the machine is features by cooling materials evenly, quick cooling and some other characteristics.
