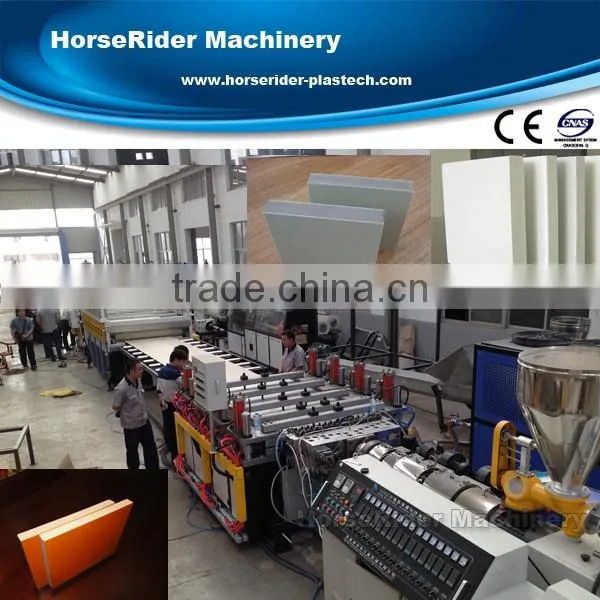

PVC furniture foam board sheet machine

PVC WPC foam board making machine
PVC FOAM BOARD MACHINE, PVC FOAM SHEET MACHINE, PVC FOAM BOARD EXTRUDING MACHINE
Screw Design: Conical double screw
Model Number: SJSZ80/156
Voltage: 380-440V
Main Motor Power: 75kw
Dimension (L*W*H): 25m*3m*3m
Weight: 28t
Output of plastic plate: 400kg/h
Plastic Processed: PVC and WPC
Finished Product: PVC/WPC foam board
Specification of finished board: 1220*2440*(3-20) mm or 915*1830*(3-20)mm
Density of finished board: 0.37-0.85 adjustable
Application of Foam Board: building template, furniture board, decoration board, advertisement board, wall panels, roof, car and boat board etc.
After-sales Service Provided: Engineers available to serve overseas

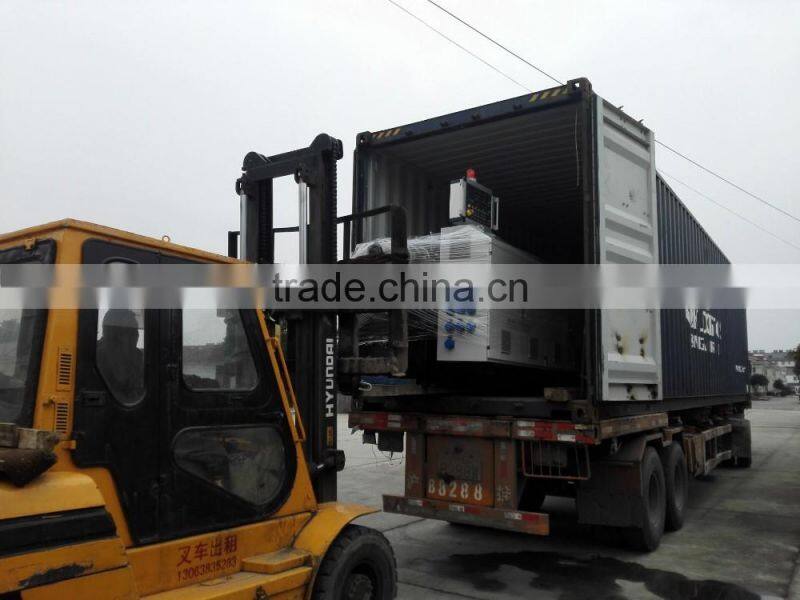

Packing Details: Wood package and PE film covered 2 containers.

Application of PVC WPC foam board making machine

Construction formwork, sports apparatus, aquaculture material, seashore wet-proof facility, water-resistant material, arts material and all sorts of light separation plate, etc.

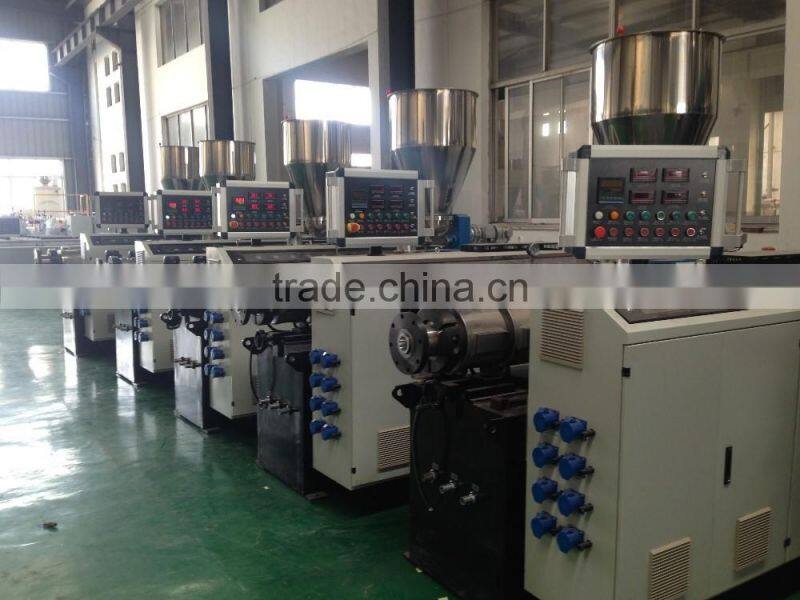

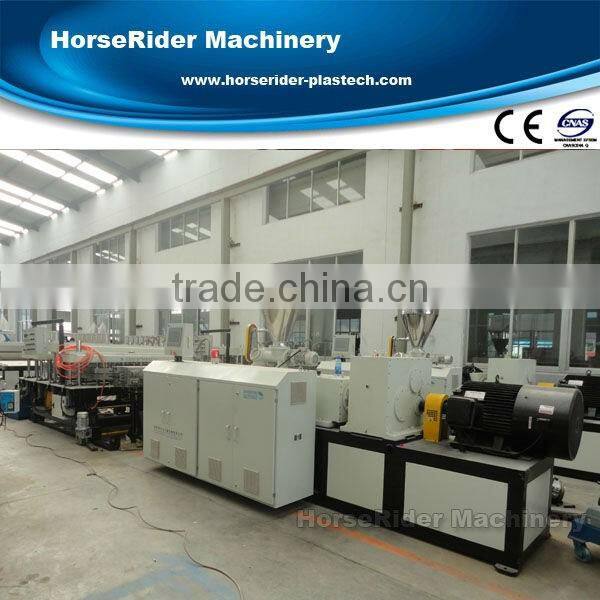

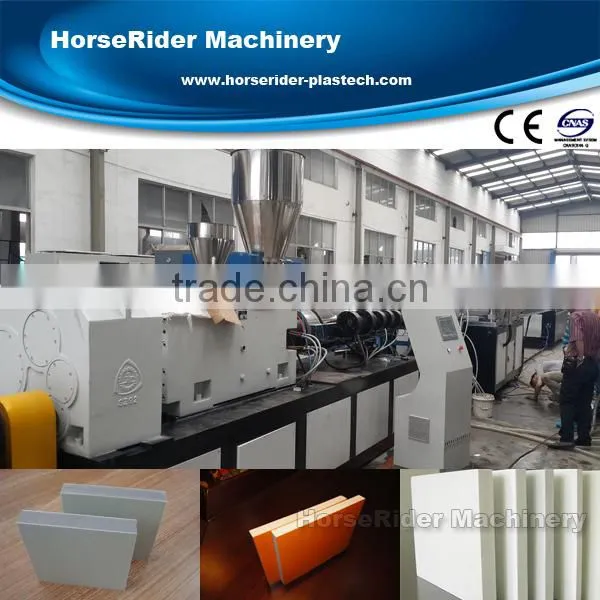

Name: SJSZ80/156 extruder
Frequency inverter: ABB
Temperature Controller: RKC Japan
AC contactor: Siemens
Motor power: 75KW (AC motor)
Screw Diameter: 80/156mm
Screw Length: 1800mm
Screw rotation speed: 0-37r/min

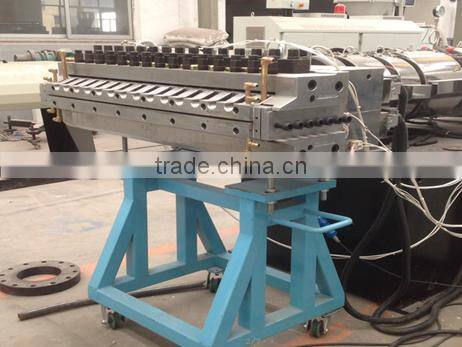

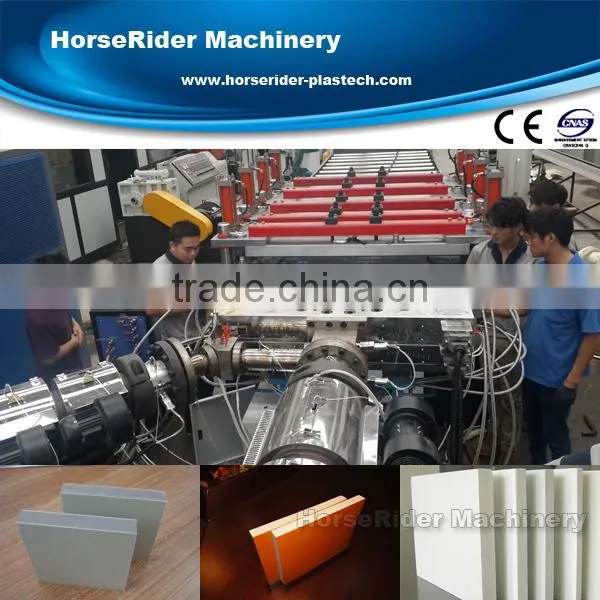

Name: Die head and calibrating Moulds
1. Mould is heated by heating bar
2. Lip of mould is heated by heat conducting oil
3. Die firmware use 12.9 grade high strength screw, adjusting bolt and mould are made of 40Gr.
4. Material of mold: 5CrNiMo
5. Material of forming mould: 5CrNiMo, chrome plated and polished
6. Thickness and width of board: 3-20mm and 1220mm

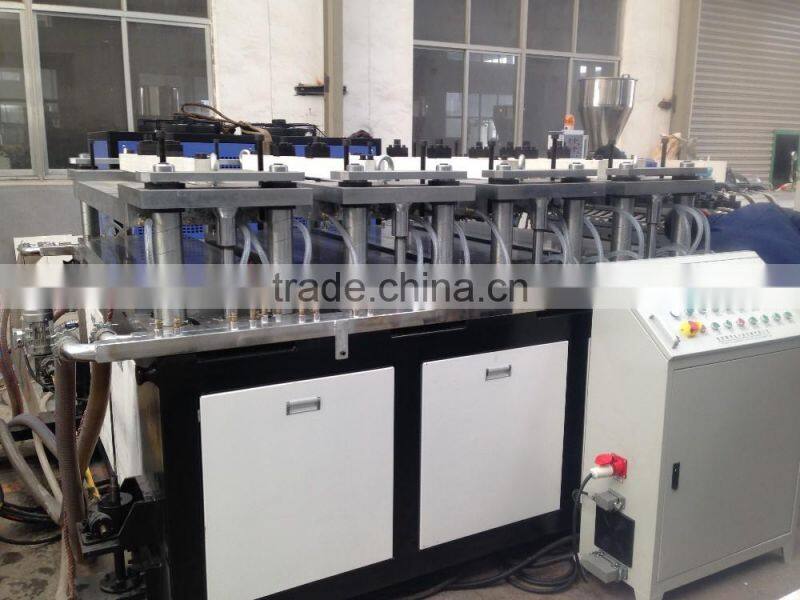

Name: Vacuum Calibrator And Cooling Table
1.Calibration mould quantity: 4paris
2.Calibration mould open and close: hydraulic drive
3.Lift up and down for whole tale: Electric Motor drive
4.Cooling medium: Cold Water
5.Material of mold: 5CrNiMo
6.Cooling table size for each block: 1500*600*80mm

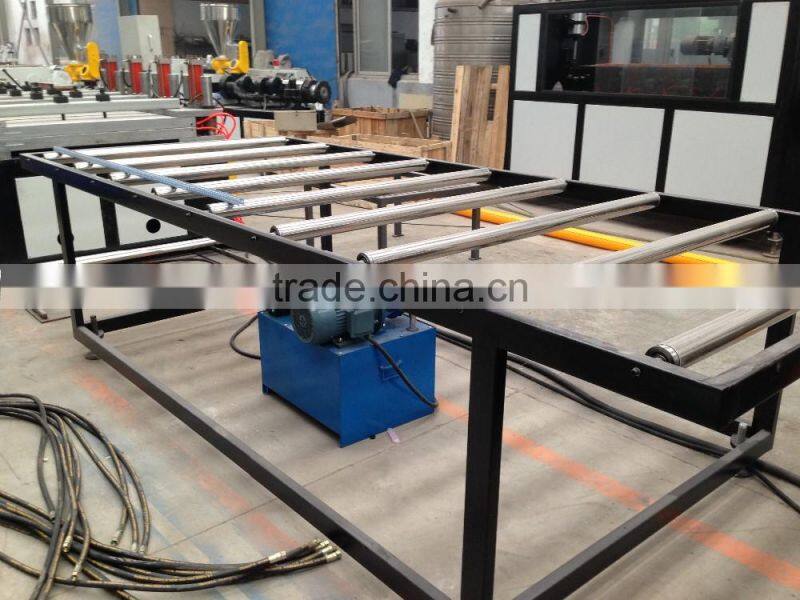

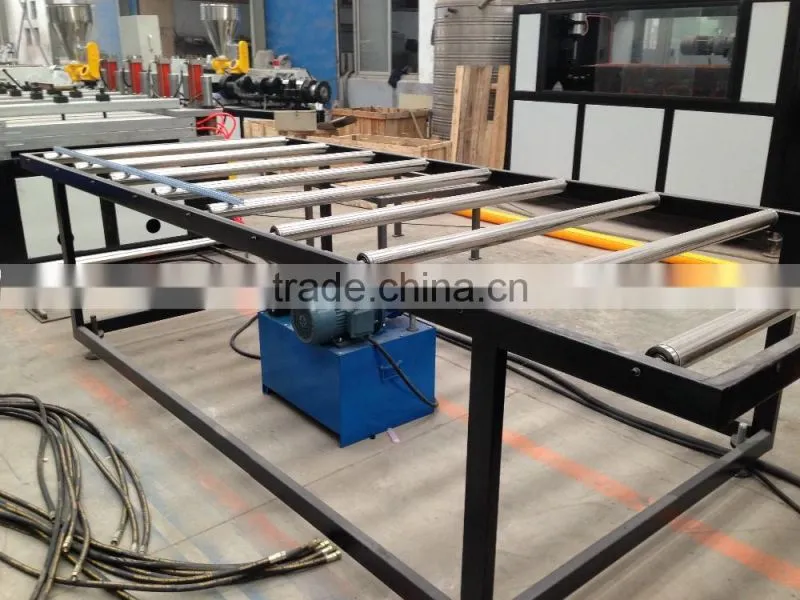

Name: Air cooling stacker
1.Length: 4000mm
2.Bracket roller material: Stainless steel pipe
3.Cooling method: Air cooling

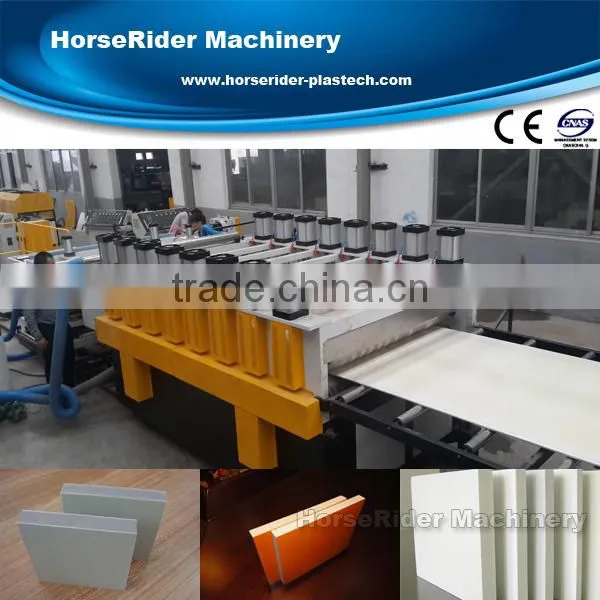

Name: Transverse Cutting Machine
1.Haul roller quantity: 8 pairs
2.Material of roller: Rubber
3.Roller lift up and down method: Cylinder pneumatic drive
3.Speed adjusting mode: Frequency conversion regulating
4.Motor powder: 3 KW×2

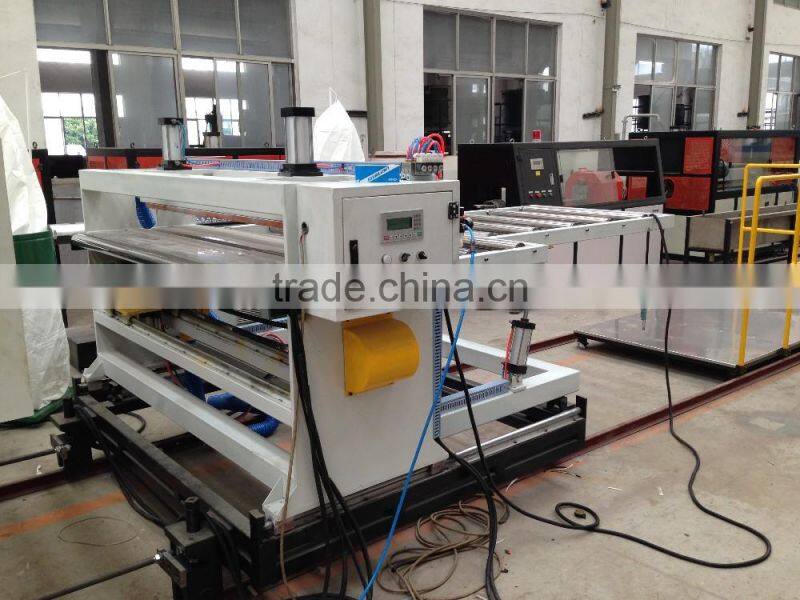

Name: Ransverse Cutting Machine
1. Motor power: 4kw
2. Material of Saw blade: Alloy steel
3. Press Clamping Mode: Cylinder Pneumatically press
4. Control device: Single chip
5. Cutting Dust collection: Air blower collection

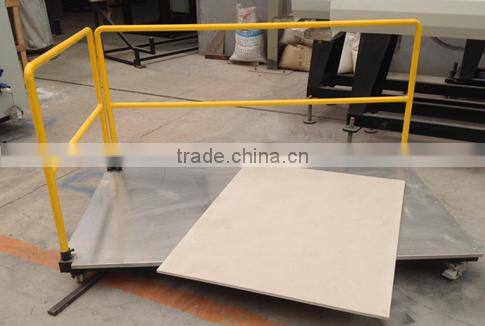

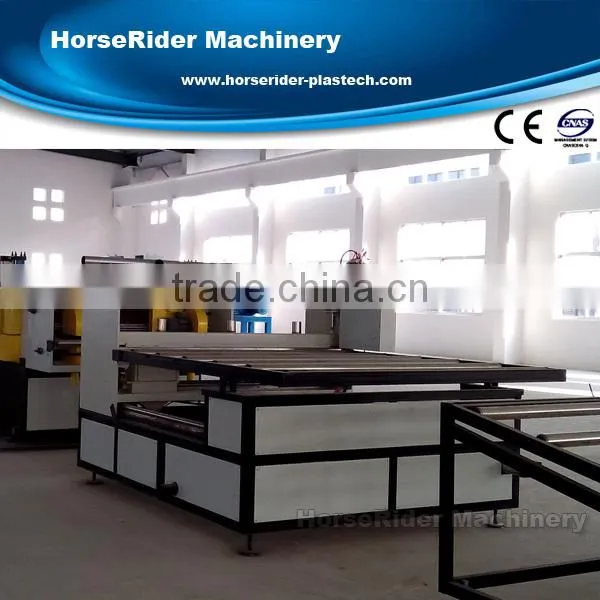

Name: Stacker
1. Material: Stainless steel
