Vacuum Clay Brick Machine
Introduction of the Vacuum Clay Brick Machine
1) The HYZJ-220 Vacuum Clay Brick Machine is suitable for making the clay brick for house.
The materials can be clay, black land, mixing clay etc.
2) The Vacuum Clay Brick Machine includes Hopper, Mud pie cutter and Mud adobe slicer.
It can be installed on the false work (wooden/iron board), also can be installed on the concrete foundation.
The size of area is 1200*800*1200mm. Its weight is 350kg and capacity is 35000 40000pcs/8hrs (brick size is our national standard size: 240*115*53mm), of course we can make the brick mould according to
your demand.
3) The Vacuum Clay Brick Machine can be driven by the 11kw motor or 15 Hp diesel engine .
Technical parameter of the Vacuum Clay Brick Machine
Model | HYZJ-220 | HYZJ-250 |
Capacity | 35000-40000 pcs/ 8 hours | 40000-50000 pcs/8 hours |
Power | 11 kw | 11 kw |
Standard brick size | 240*115*53 mm | 240*115*53 mm |
Holes | No | Smaller than 3 cm |
Shaft speed | 65 rpm | 65 rpm |
Outsize | 3050*1100* 1300 mm | 3100*1100*1300mm |
Weight | 500kg | 870kg |
Picures of the Vacuum Clay Brick Machine

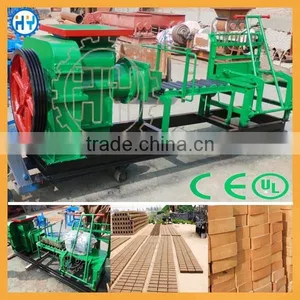

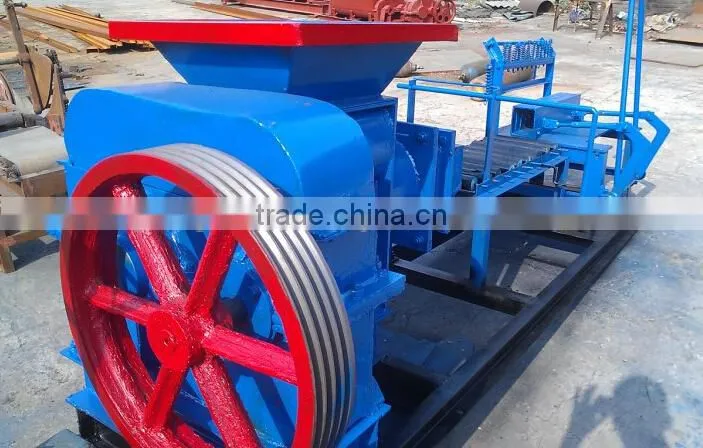

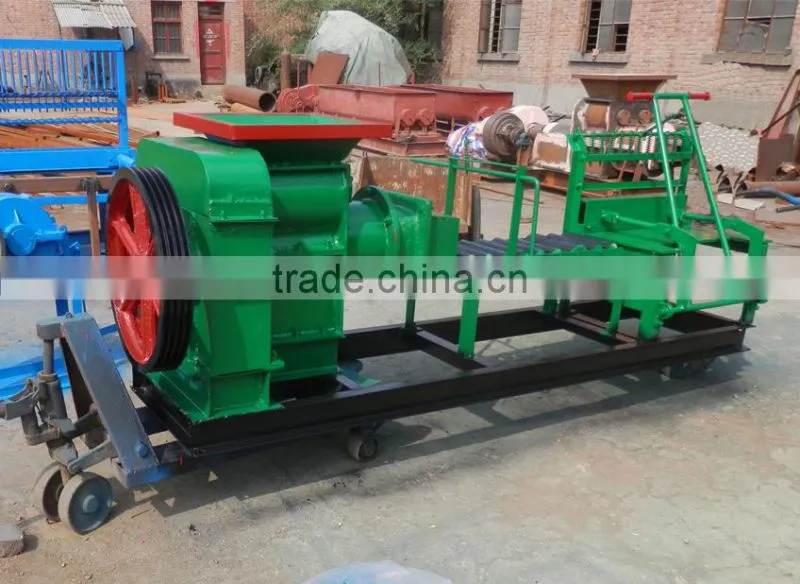

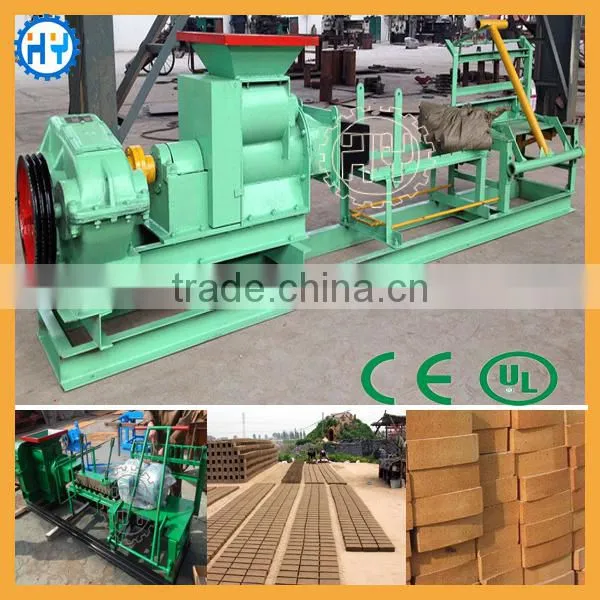

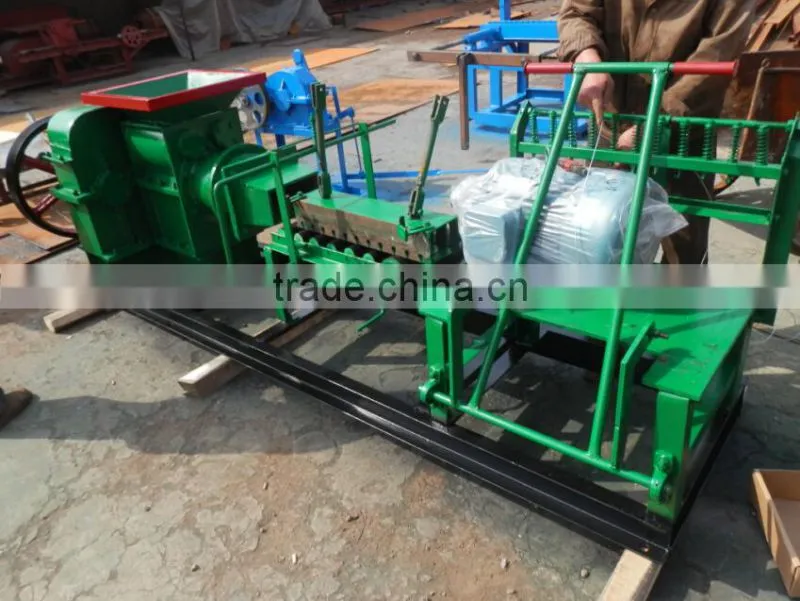

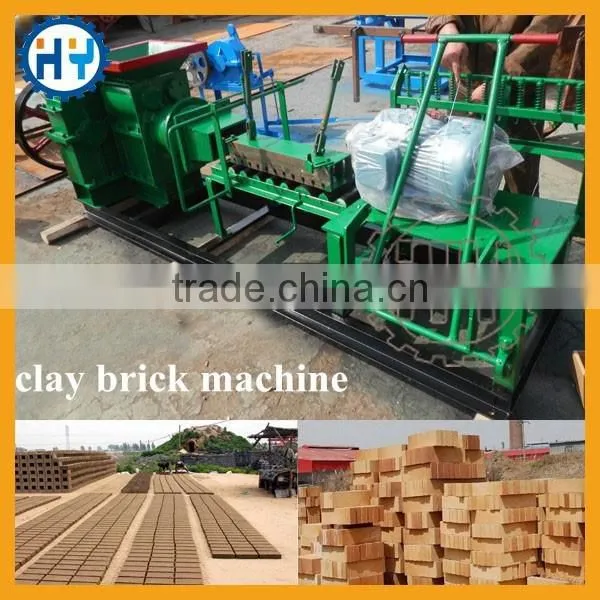

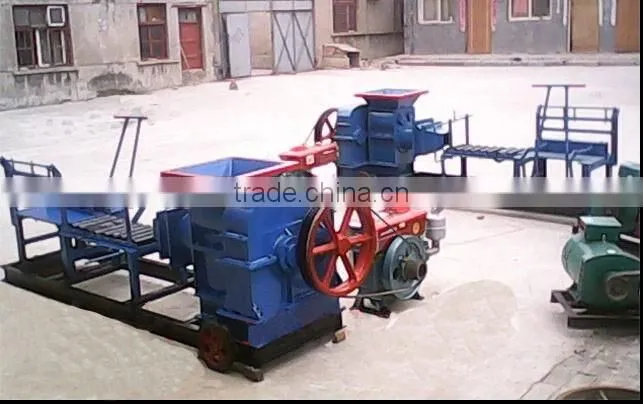

different color Vacuum Clay Brick Machine to choose

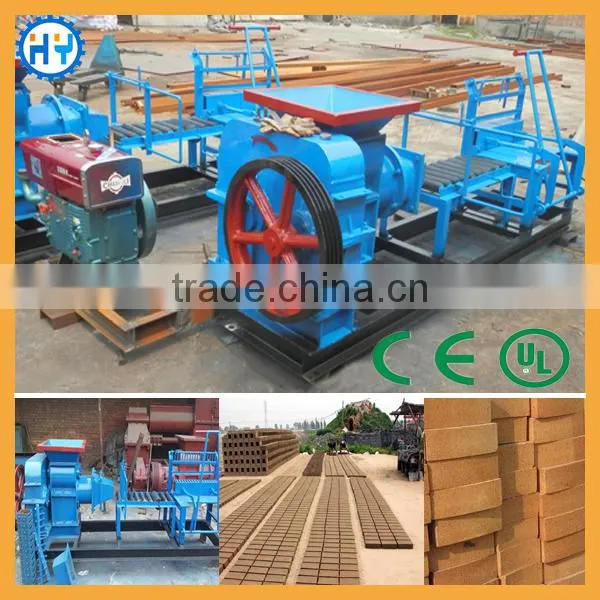

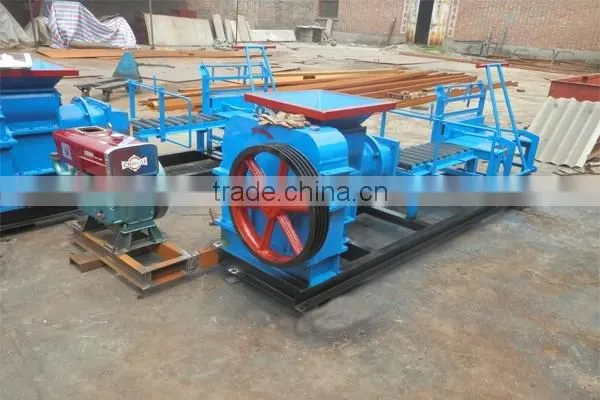

vacuum clay brick machine with diesel engine

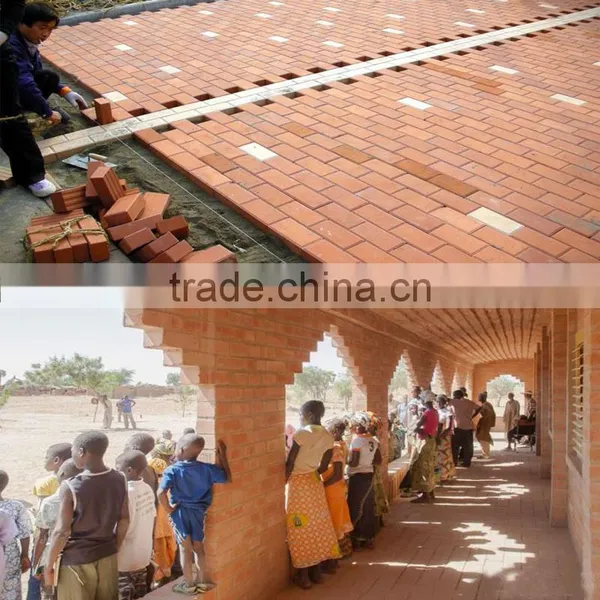

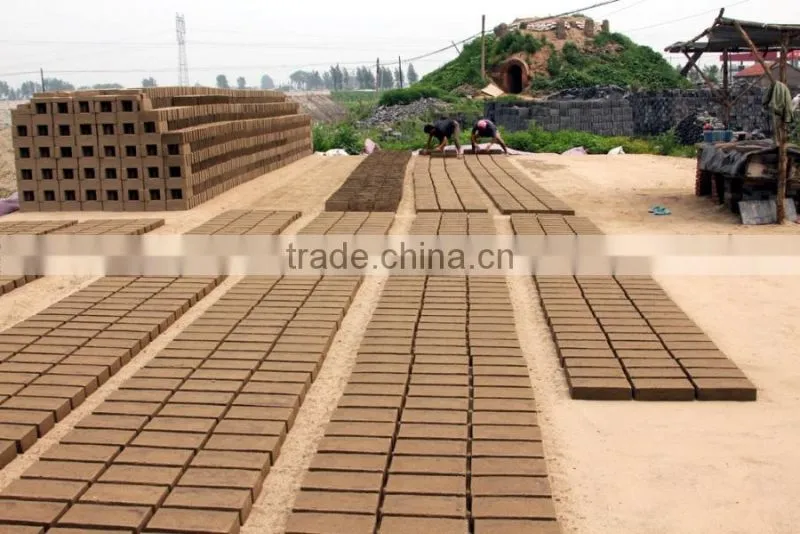

clay brick of Vacuum Clay Brick Machine

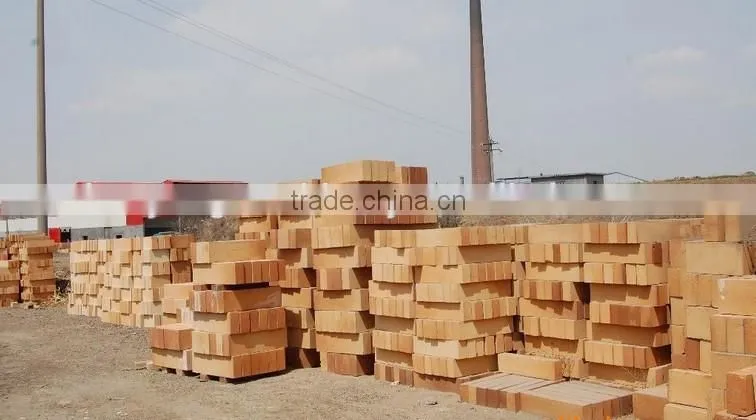

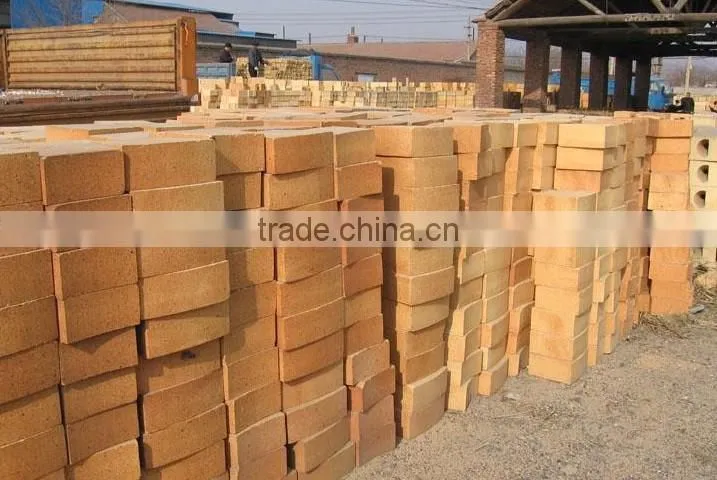

after baking

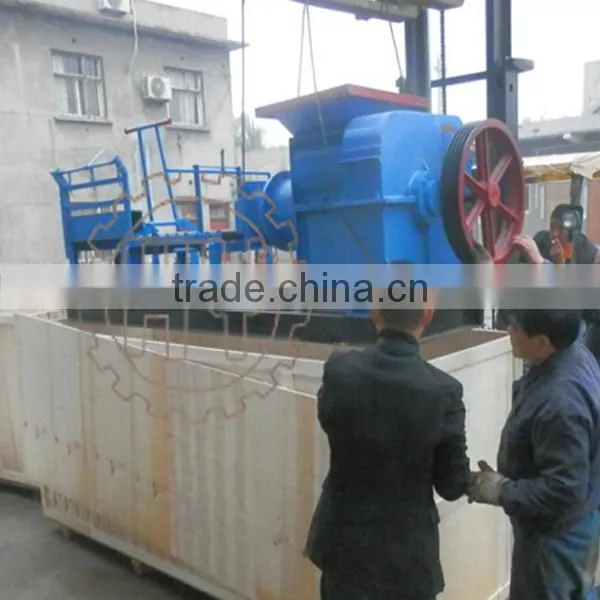

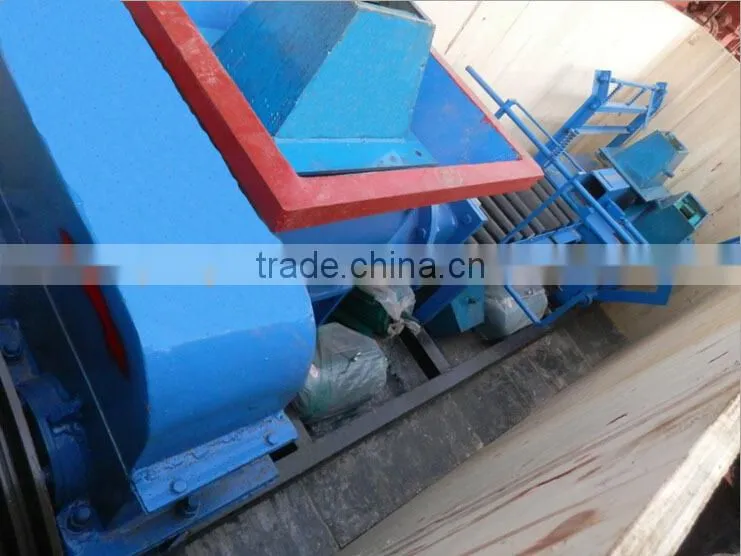

wooden package of Vacuum Clay Brick Machine to protect the delivery
WHY CHOOSE US ?
HOW TO PLACE ORDER ?
Pls send me inquiry and tell me the model you need, the quantity . we are glad to quote our best price for you !
