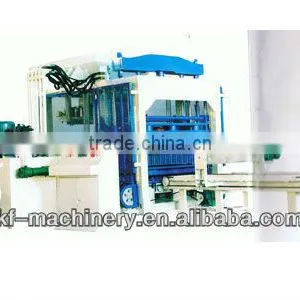

12-15 Automatic burning-free Brick Making Machine

Specifications

12-15 automatic brick making machine
1 computer-control flow pressure of hydraulic system
2 synthetic output compounded

12-15 full-Automatic burning-free Brick Making Machine



Advantage of 12-15 Automatic Brick Making Machine:



1.The control system of “ long distance telecommunication” has provided great convenient for the long-term supervisory, fault inquiration, system upgrading and so on.



2. Compared with 8-15 Automatic Block Forming Machine, the investment has increased by 30%, while there are 35% increasing in capacity and 15% reduction of energy consumption.



3. High-efficient and super-strong vibration system, computer-control flow pressure of the hydraulic system, realize vertically synchronous vibration, frequency conversion, and braking, synthetic output compounded with double vibration sources, thus greatly increase product compactness and mold-box service life.



4. The system adopts semi-closed screen reticular rotational feeding unit to feed materials forcedly, with evenness and even speed, ensuring product intensity.



Main technical parameters :





Moulding cycle	Pallet size (mm)	Power	Weight	Overall size	Max vibration frequency
15-20	1330*900*40	89.5	22.7	8500*2400*2800	4500-5000
Theoretical Output Table:
Item	Specification	Quantity per mould	Quantity per hour	Quantity per (8hours)
Block	390*190*190	12	2160	17280
Multiholed brick	240*115*90	30	5400	43200
Standard brick	240*115*53	60	10800	86400

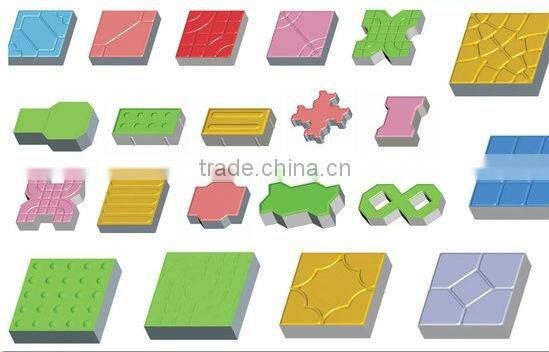

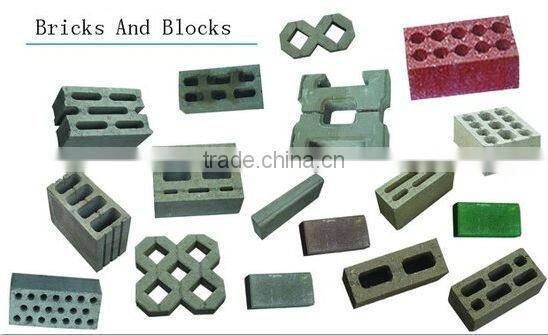

Samples of bricks:

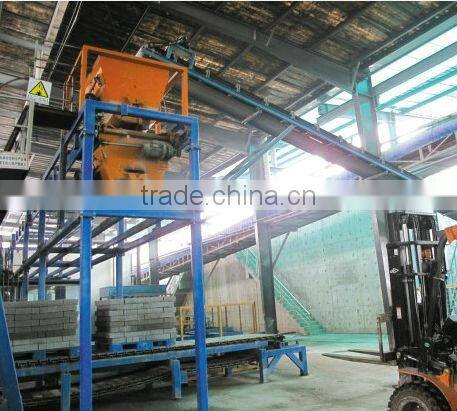

Samples of brick machines:







  Certification:







 Our products have CE,ISO9001:2008 certificated,so you can feel relieved for our product.
