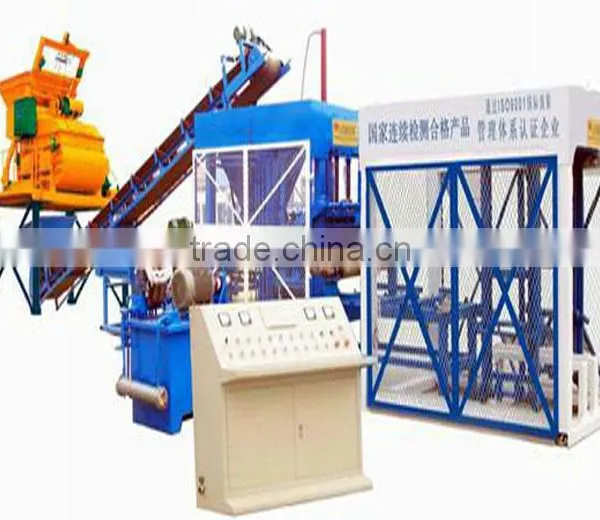

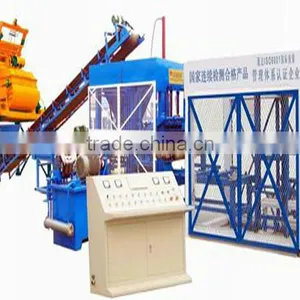

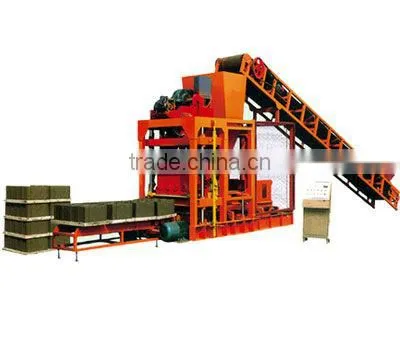

Perfect outline design QT4-15 full-automatic standard brick machine supplier with high quality

Specifications

full-automatic standard brick machine supplier
1 High quality
2 PLC to control the data in&out device
3 CE/ISO/BV

Perfect outline design QT4-15 full-automatic standard brick machine supplier with high quality



Introduction of 4-15 standard block machine:





1. The block machine body is constructed with ultra large steel and special welding technology, is of high rigidity, high impact-resistance and long life.



2. Electric system use programmable controller and PLC to control the data in&out device, the controlling system includes safety logistic control and mistake diagnostic system.



3.Precise movement of the mold and press point is ensured by four zones and elongation pilot bearing, and joint bearings are used as moving parts, which is durable and convenient to be lubricated.



4. Hydraulic component is made up of high dynamic scale valve; the motion of the key component is precisely controlled;



5. This brick making machine is multi-functional; The brick machine can be used to produce different kinds of bricks through changing mold easily, such as hollow bricks and road side bricks, etc.





 Main technical parameters of 4-15 standard block machine





Mode	QT4-15
Molding cycle	15-20Second/Time
Pallet dimensions	900×600×40mm
Vibration frequency	4000-4800Time/Minute
Exciting force	22KN
Installed capacity	26kw
Weight	7.8T
Overall dimensions	3800×2200×2700mm





Output table



Mode	name	Block standard	Block /Hour	Block /8Hour
QT4-15	Block	390×190×190	4	8640-11500piece
	Hollow Brick	240×115×90	26	21600-28800piece
	Standard Brick	240×115×53	12	43200-57600piece

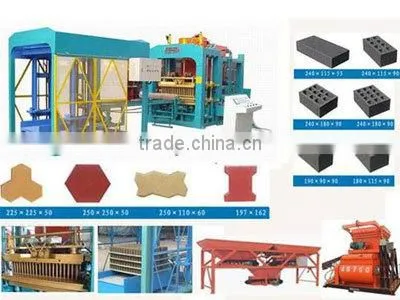

 Automatic brick making production line





About us





Henan Kefan Mining Machinery Co.,Ltd , established in 1980, is one of the first garden-like factories located in Zhengzhou which is one of the eight historic cities in China. Our company enjoys favorable location, excellent transportation and beautiful environment. with an area of 50,000 square meters, 5,000 square meters of heavy industrial plant two standardized, all kinds of large and medium-sized gold processing, Mao Han, the assembly of 60 sets of equipment, on-line staff More than 300 people. In recent years Kefan has increased market share and profits significantly as well as becoming one of the leading companies in the industry in China. In 2005 KeFan was rated one of the best 100 enterprises of Henan Province and one of the best 500 enterprises of China construction machinery manufacturers. And was awarded "Provincial management model enterprise", "Quality Management Advanced units of Henan Province", "State-level high-tech enterprises", "100 Honesty Enterprises in Henan Province". According to the development strategy of "To build KeFan a famouse brand", our group is on our way to be a domestic first-class, world-renowned engineering machinery manufacturing enterprises!



Services



Before Sales:
(1)Guide our customers to deploy the most useful equipment item according to the requirement of theirs.
(2) Provide technical detain including equipment bill layout base specification and installation picture to consult.
(3) Verify the product before leaving factory strictly.
(4) Dispatch the technical person to reach the locale to layout field design the best installation flow and scheme to consult for free .
During sale:
(1) Product according to the standard of technology strictly.
(2) Experiment the machine by the operating regulat.
(3) uide our customers to deploy the most useful equipment item according to the requirement of theirs.
(4) Organize shipping by the contract in time.
After Sales:
(1) Dispatch special worker after service to arrive locale to guide the user to install and debug experiment circulate train operating persons for free.
(2) Guarantee of repair; replacement and refund of substandard products, the date of guarantee to keep the machine in good repair is 1 year(excluding abrasion in gear the parts damaged easily the damaged parts because of disoperation)lf the equipment appears hitch during guarantee to keep the machine in good repair our company guarantee to reach the locale after come to hand the user's telephone remove the hitch ensure the user's produce in gear.







Certicification:





Our products have CE,ISO9001:2008 certificated,so you can feel relieved for our product.

Please free contact us!



With high quality and low cost,our products are exported to all over the world ,If you have any need ,please feel free to contact us and free to refer to :
