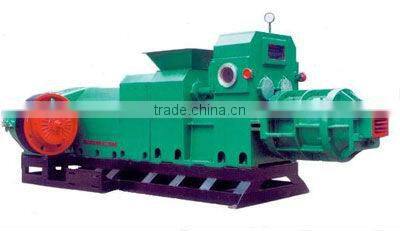

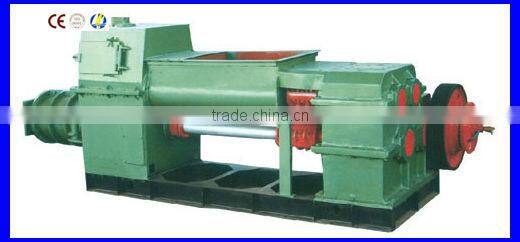

2015 hot sale Vacuum Brick Machine
Vacuum Brick Machine advantages:
1. It has received a lot of praise not only because of its advanced technology but also because its high automatic degree, simple operation, high working efficiency and rational price.
2. It has the features as novel structure, advanced technology, high squeezing pressure, high yield and high vacuum degree and it adopts the pneumatic clutch control which is sensitive, simple and reliable.
3. The reasonable design, compact structure reduce the energy wasted because of the shaking during working. This machine can transfer the waste materials to tressure and can reduce the energy consumption so that it has obvious economic benefit and social benefit.
Vacuum Brick Machine charateristics:
1. The machine is suitable for producing hollow bricks with various hollow type. It is suitable to many kinds of raw materials such as coal-stone, rock , coal ash ,clay and so on.
2. The material of noose is a wear-resist material and has been handled by metal power spray technology. The front stirring axle, the big axle and the upper or the down bodies all have been handled by quench.
3. The surface of the gear are made hard. The clutch uses screw to prolong the life.
Main technical parameters:
| Articles | Measuring units | JZK50/50Q all steel series double degree vacuum Squeezing machine |
| yield | Standard blocks/Hour | 13000-15000 |
| Reamer diameter | mm | 500 |
| Maximum squeezing pressure | M Pa | 3.0 |
| Degree of vacuum | M Pa | ≤92% |
| power | KW | The upper body 55kw,the down body 132kw |
| Overall dimensions | MM | 6572×2054×2504 |
| weight | Ton | 30 |
