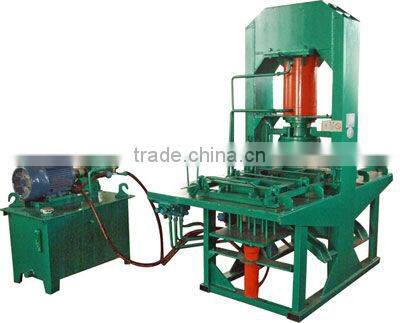

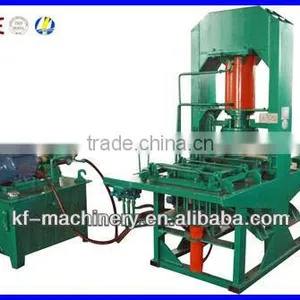

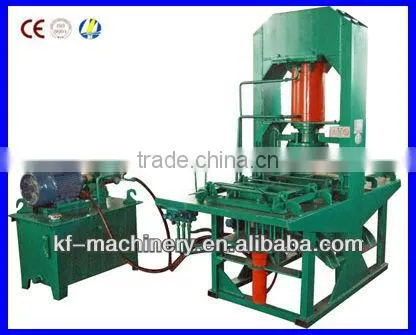

2015 HY-250 Colored Brick making Machine
Feature of HY-250 Colored Brick Making Machine:
1.This machine is the special machine for Longmen type steel and its pressure way is downward type. The maximum way of the machine is 240T which can produce various bricks with the length(400×300mm) and the width(≤200mm) such as slope protection bricks, border stone, colored wall blocks, tree pit bricks, slope protection blocks, terrazzo bricks,. multiple model and so on.
2.The application of multiple model can improve the output greatly and can be widely used in many field like municipal, construction,garden and residential building, etc.
3.Small Investment, stable quick, mechanical properties.
Main Technical Parameters:
| Mode | HY-25O |
| Maximum pressure | 250T |
| Fixed pressure | 200T |
| Maximum oil pump pressure | 31.5MPa |
| Oil pump mode | 25MCY-1B |
| Motor power | 11kw |
| Piston travel | 300mm |
| Suppression opening altitude | 410mm |
| Divests cylinder opening height | 240mm |
| Pressing countertop | 600×600mm |
| Formwork countertop | 700×655mm |
| Overall dimensions | 2000×1300×2150mm |
| weight | 2.5T |
| 250press quadruple 100×200mm computing | 16320/8Hour |
