Mobile Cutting Machine for Sale

 Mobile Cutting Machine for sale

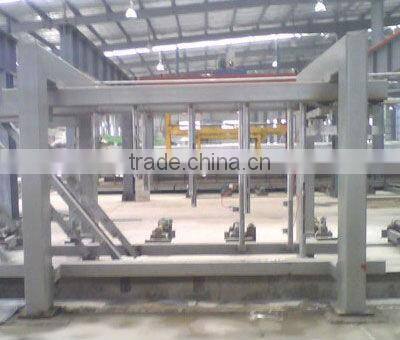

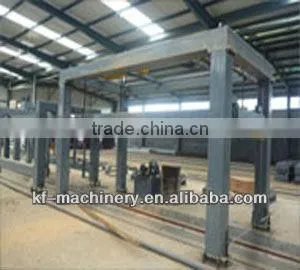

Introduce of the nachine:

The swinging hanger turns the mould in 900 in th air ,demoulds the blank and puts it onto cutting table together with the side plate.The blank on the cutting table is cut by the longitudinal cutting device through the motor and its own running .After completion and running at the pause position,the blank is cut horizontally by the motor to the center of the blank .The cross cutting holder landed vertically from top to bottom until reset.

Main Features of the Machine :

1.The machine has simple operation and cutting processes (swinging ,vertical cutting and cross cutting )can be finished in different positions plus that cutting and running are controlled in the same device therefore operating is simplified and maintenance is convenient;
2. As the blank stands vertically, the grooves on both sides of the blank (within width of 600mm) can be milled at the time when the blank is cut vertically, no groove processing device is needed;
3.The machine can process both building blocks and slabs and the blank can be cut in six sides therefore the quality of product is free from affection of mould oil and the deformation of the mould;
4. After swinging the blank stands evertically with the width of 60mm and the height of 1200mm,thus the cutting wire can be shorten and cutting precision can be more exactly , so it isn‘t easy to be broken and drifted;
5. The vertical cutting is done by the vertical cutting device (the blank is fixed on the table )while the horizontal cross ——cutting device is driven by the screw which can ensure even lifting of the cross -——cutting support and the cutting precision;
6. Simple and practical structure, easy installation and maintenance.

Samples of bricks:

Certification:

Our products have CE,ISO9001:2008 certificated,so you can feel relieved for our product.

Please free contact us!

With high quality and low cost,our products are exported to all over the world ,If you have any need ,please feel free to contact us and free to refer to :
