Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Brick Making Machine > Cement Brick Making Machine Automatic Brick Machine
US$ 1,000 - 99,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Interlock Block Making Machine
Brick Raw Material:
Other, clay, cement, concrete, etc
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Superior Quality JZK-40/40 Large Clay Brick Equipment With ISO ApprovedUS$ 1,000 - 99,999MOQ: 1 Set -
Kefan Selling Pioneer JZK-50/50 Vacuum Brick MachineUS$ 1,000 - 99,999MOQ: 1 Set
-
Pioneer Hydrualic Cement Pad Machine for Hot SaleUS$ 1,000 - 99,999MOQ: 1 Set
-
Hot Selling Rotary Cutting MachineUS$ 1,000 - 99,999MOQ: 1 Set
-
Hydraulic Burning-free Block Machine Made in ChinaUS$ 1,000 - 99,999MOQ: 1 Set
Condition
New
Type
Interlock Block Making Machine
Brick Raw Material
Other, clay, cement, concrete, etc
Processing
Brick Production Line
Method
Hydraulic Pressure
Automatic
Yes
Capacity
reliable
Place of Origin
Henan, China
Brand Name
Henan Kefan
Model Number
QT10-15
Voltage
industrial voltage
Power
38kw
Dimension(L*W*H)
10500*2000*3200mm
Certification
ISO/ CE/ BV
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

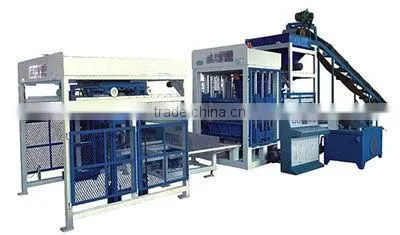

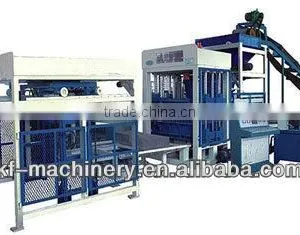

cement brick making machine automatic brick machine
Technical Data:
Vibration frequency | 4000-4800per/min |
Molding cycle | 15-20(s) |
Total power | 25.5(KW) |
Total weight | 7500kg |
Pallet size | 860*680*20(mm)(Bamboo gum plank) |
Shape size | 12550*2450*2500(mm) |
Main technique characteristics:
| Specification&Capacity of Main Products | ||||
| Items | Size(LxWxH) | Pcs./mould | Pcs./hour | Pcs./8hour |
| Hollow Block | 390x190x190 | 6 | 982 | 7,856 |
| Porous Bricks | 240x115x90 | 15 | 2,455 | 19,636 |
| Dimension Bricks | 240x115x53 | 30 | 5,400 | 43,200 |
| Dimension Bricks | 240x115x53 | 32 | 5,760 | 46,080 |
| Holland Block | 200x100x60 | 21 | 3,024 | 24,192 |
Note: the above yield form computes a value for the theories. Modeling the period,volume of production has something to do with original material, product type and other factor.
Theoretical output table:
| Mode | name | Cutting specifications | Each plate number | Block/h | Block/8h |
| QT10-15 | Block | 390*190*190 | 10 | 2400 | 19200 |
| Hollow Brick | 240*115*90 | 24 | 5760 | 46080 | |
| Standard Brick | 240*115*53 | 51 | 12240 | ||
