Specifications
gold separator machine:High grinding efficiency
Good abrasive resistance
Low consumption
with perfect service
Wet pan gold grinding machine,gold grinding mill,Amalgamated grinding gold machine
1.Introduce of gold grinding mill
The Wet Pan Mill is also called Wet Grinding Machine,based on the different structure that devided into double
stone grinding and three stone grinding.They are mainly used for grinding operation,such as all kinds of ferrous
metal,non-ferrous metal,non-metallic minerals and the separation of gols ,silver,lead,iron,copper and so on.
2.The working process of gold grinding mill
1.Firstly the motor will transmit the motive power to reduction gears,under the drive of reduction gears that
passing through large vertical spindle,then the power cabient transfers to above whippletree.
2.The whippletree pulls the two runner wheels clcokwise rotation,runner wheels are not only revoluting around
the large vertical spindle but also could retating by themselves.
3.After adding into ore,the materials are under the extrusion of grinding roller weight to revoluting and rotating
with runner wheels,when twisting that coming into being huge friction force with grinding base,after suffering
repeated extrusion,rub,grinding that be crushed thoroughly.
4.Under the effection of grinding roller operating,the crushed materials and the water mixed intensively to float on it uniformly,then passing through the overflow discharge gate that setting up on the mill basin to discharge,after that enter into next operation procedure to process.
5.Coarse mineral was sank on the bottom of grinding base,goning on grinding and crushing,till the fineness could reach to standard floating on it.
3.Technical datas of gold grinding machine
| Model | Specification | Input size | Speed(R/min) | Motor Power | Weight(t) |
| 1600A | 1600×400×200×500±20mm | 30mm | 20-22 | 25KW | 14.5 |
| 1500A | 1500×350×200×460±20mm | 20-22 | 22KW | 13.5 | |
| 1500B | 1500×350×150×460±20mm | 20-22 | 22KW | 12.3 | |
| 1500C | 1500×300×150×420±20mm | 20-22 | 22KW | 11.3 | |
| 1400A | 1400×250×150×350±20mm | 16-18 | Y18.5kw | 8.5 | |
| 1400B | 1400×250×150×350±20mm | 21-23 | 18.5kw | 8.5 | |
| 1350A | 1350×250×150×350±20mm | 16-18 | 18.5kw | 8 | |
| 1350B | 1350×250×150×350±20mm | 21-23 | 18.5kw | 8 | |
| 1300A | 1300×250×150×350±20mm | 16-18 | 15kw | 7.5 | |
| 1300B | 1300×250×150×350±20mm | 21-23 | 15kw | 7.5 | |
| 1200A | 1200×200×80×250±20mm | 17-19 | 7.5kw | 5.5 | |
| 1200B | 1200×200×80×250±20mm | 23-25 | 7.5kw | 5.5 | |
| 1100A | 1100×200×80×250±20mm | 17-19 | 7.5kw | 5 | |
| 1100B | 1100×200×80×250±20mm | 23-25 | 7.5kw | 5 | |
| 1000 | 1000×200×80×250±20mm | 13-15 | 5.5kw | 4.5 |

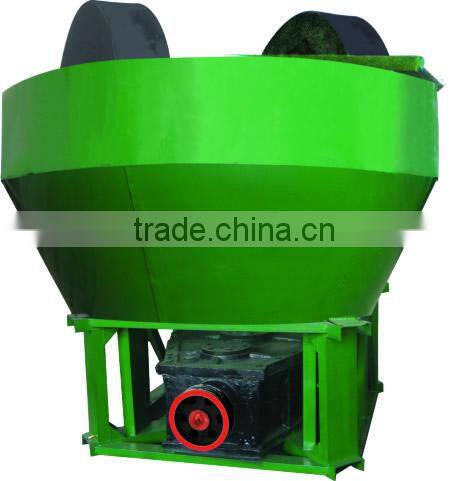

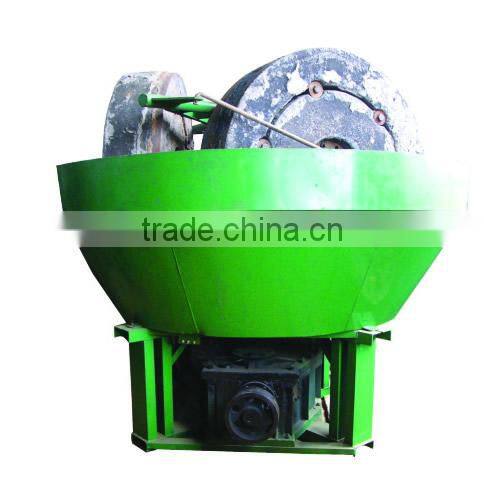

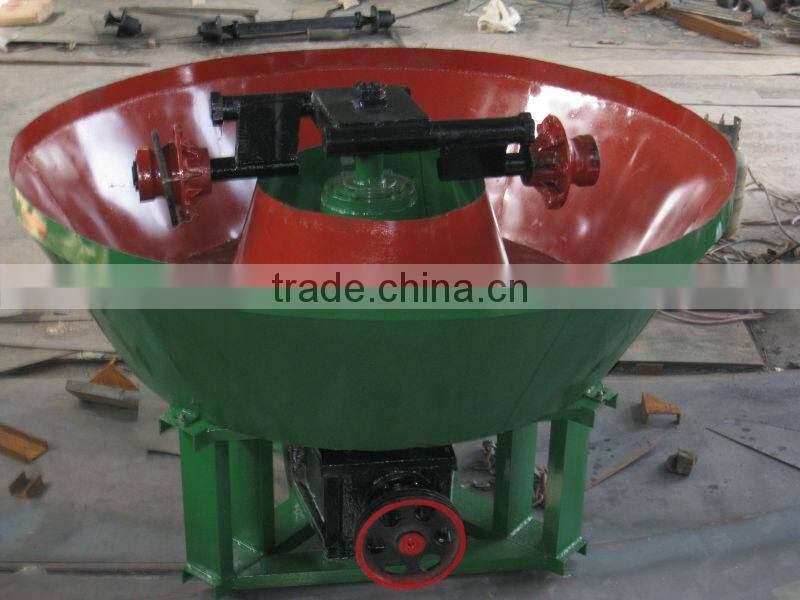

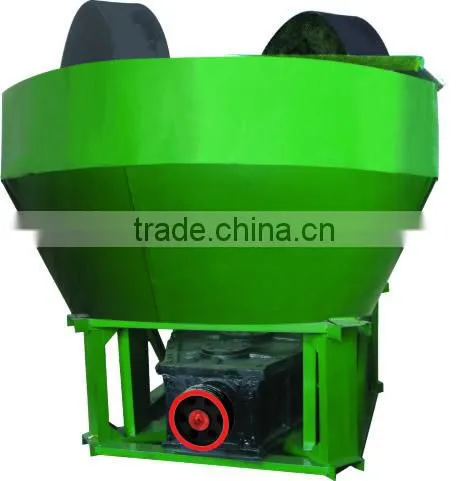

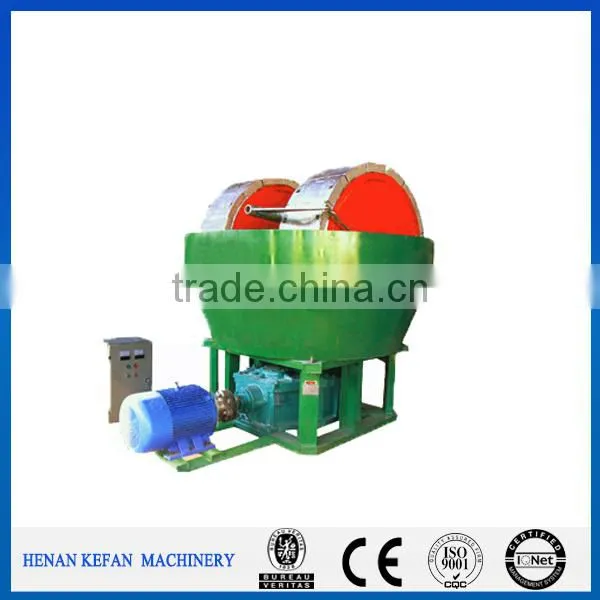

4.Photos of the gold grinding mill
