Specifications
Gold grinding machine1)Good quality and high efficiency
2) Professional technical team.
3)Good abrasive resistance.

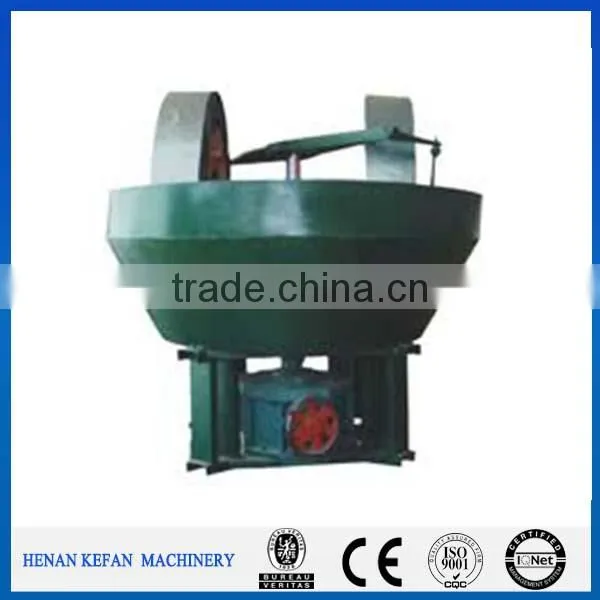

High performance and energy saving gold grinding machine, wet gold grinding machine
1. Introduction of gold grinding machine
Gold grinding machine is mainly though raw material repeated mixing, rolling, crushing and rolling to reach equilibrium moisture, uniform ratio, low air content, so as to improve the molding rate and molding quality. The final grinded products are with high density, good strength, high percentage of non porosity. This machine mainly used for choosing gold, silver, lead, zinc, iron, molybdenum, copper, antimony mine, The ores that ball mill can be choosen, the gold grinding machine can be used.
2. The working principle and maintenance of gold grinding machine
A. When the gold grinding machine run properly then start to feed the raw material into the grinding pan.
B. The gold grinding machine is prohibited to start work with raw material inside. When the machine break down then start again, it must to clean the residual ore in the middle of grinding pan and then start the machine.
C. Uniform feeding, shall not be more and less, it will be better to use the feeding machine.
D. Bearing parts must often add butter. The reducer or rear bridge need to check whether lack of gear oil regularly.
Main technical parameters of Gold grinding machine:
Model | Spc. | Size of input granules | revolving speed rounds/min. | Power | Weight(t) |
1200 | 1200×200×80×270±20mm | <30mm | 10-13 | Y6-7.5kw | 5.5 |
1100 | 1100×180×80×250±20mm | 10-13 | Y6-5.5kw | 4.7 | |
1000 | 1000×180×80×250±20mm | 10-13 | Y4-5.5kw | 4.5 | |
900 | 900×140×60×200±20mm | 10-13 | Y4-5.5kw | 3.0 |

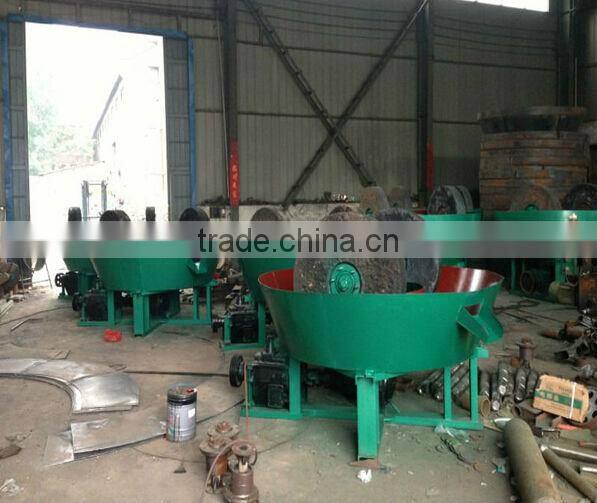

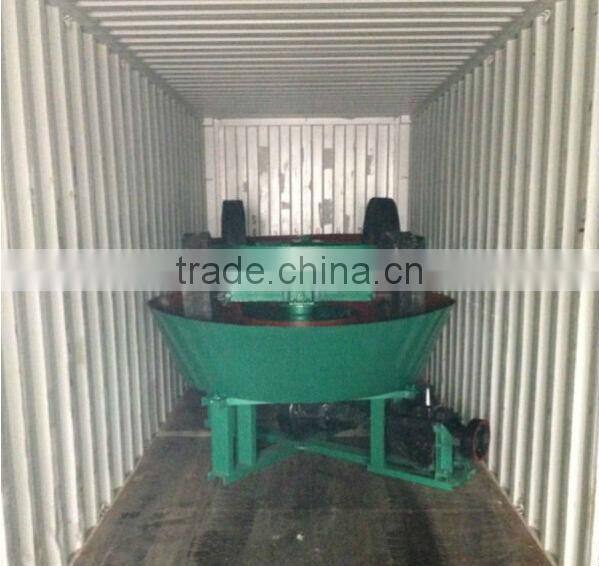

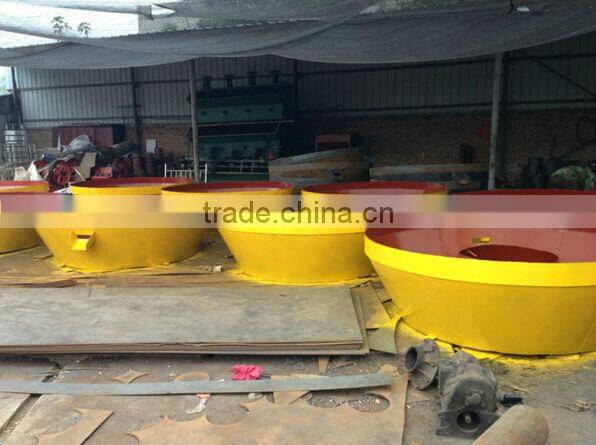

More details picture of Gold grinding machine:
Certification of Gold grinding machine:
