Brief Introduction of rotary kiln:
The cement kiln is mainly used in calcination clinker. And the cement kiln also can be divided into dry production cement kiln and wet production cement kiln. The metallurgy chemical rotary kiln is mainly used in metallurgical industry like magnetizing roasting poor iron in steel iron plant, silicon thermal to roast active lime and dolomite which used in steel iron plant and ferroalloy plant.
Features:
The special features of the kiln system are high productivity, low heat consumption, little environmental pollution,
low repair rate and high operation rate.
Parameters of rotary kiln:
Type | Model | Shell Dia(mm) | Shell Length (mm) | Gradient (%) | Output(t/h) | Rotate Speed(rpm) | Motor Power(Kw) | Weight( t ) |
Straight | YZ1225 | 1200 | 2500 |
| 3 |
| 22 | 34 |
YZ1828 | 1800 | 2800 |
| 4 |
| 30 | 59. 39 | |
YZ1636 | 1600 | 36000 | 4 | 1. 2~1. 9 | 0. 26~2. 61 | 22 | 51. 023 | |
YZ2245 | 2200 | 4500 | 3. 5 | 3. 2~5. 3 | 0. 23~2. 25 | 45 | 125. 462 | |
YZ2555 | 2500 | 55000 | 3 | 7. 3~9. 8 | 0. 79~2. 38 | 55 | 191. 203 | |
YZ2820 | 2800 | 20000 | 4 | 15~18 | 0. 8~1. 45 | 75 | 186. 373 | |
YZ3060 | 3000 | 60000 | 3. 5 | 16~20 | 0. 49~2. 41 | 90 | 272. 510 | |
YZ3560 | 3500 | 60000 | 3. 5 | 28~40 | 0. 65~2. 25 | 125 | 347. 872 | |
YZ4030 | 4000 | 30000 | 4 | 52~70 | 0. 38~3. 52 | 160 | 415. 103 | |
YZ4262 | 4200 | 62000 | 3. 5 | 80~105 | 0. 38~3. 52 | 315 | 541. 615 | |
Diameter | YB1626 | 1600/1400 | 26000 | 4 | 0. 7~1. 1 | 0. 41~3. 85 | 18. 5 | 38. 621 |
YB1939 | 1900/1600 | 39000 | 4 | 2. 2~2. 7 | 0. 27~2. 58 | 22 | 60. 841 | |
YB2545 | 2500/2200 | 45000 | 3. 5 | 4. 5~6. 2 | 0. 25~2. 18 | 45 |
102. | |
YB3560 | 3500/3000 | 60000 | 3. 5 | 23`32 | 0. 65~2. 28 | 125 | 310. |

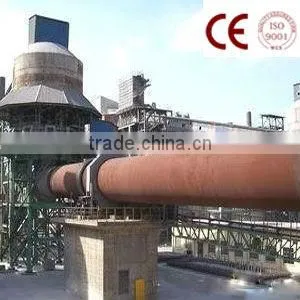

The pictures of rotary kiln:
