Brief Introduction of rotary kiln:
The rotary kiln is mainly used in calcination clinker. And the cement kiln also can be divided into dry production cement kiln and wet production cement kiln. The metallurgy chemical rotary kiln is mainly used in metallurgical industry like magnetizing roasting poor iron in steel iron plant, silicon thermal to roast active lime and dolomite which used in steel iron plant and ferroalloy plant.
Our rotary dryer system is after technology innovation, being used in the most advanced hydraulic gear wheel device, the metering piston pump of high precision, the high precision control valve and contact graphite blocksealing devices and other advanced technologies. It features in easy to operate and operational safety. Compared with the same specification equipment, the rotary kiln stabilizes the thermal system program and improves the equipment operation rate, with the operation rate increased by 10%, the yield increased by 5% -10% and heat consumption reduced by 15%.
Characteristics of rotary kiln:
1.Rotary kiln consisted of support device, catch wheel, gears, the cylinder, sealing equipment and kiln head hood.
2.Rotary kiln belongs to building material equipment. Rotary kiln according to different processing materials can be divided into cement kiln, metallurgy chemical kiln and lime kiln.
As a professional rotary kiln manufacturer in China, we adopt advanced contact type graphite block sealing device and hydraulic catch wheel device to ensure the stable running of kiln.
3.Our rotary kiln has the features of reliable performance, easy operation, low energy consumption, and high productivity, etc.
Technical parameters of rotary kiln:
Type | Model | Shell Dia(mm) | Shell Length (mm) | Gradient (%) | Output(t/h) | Rotate Speed(rpm) | Motor Power(Kw) | Weight( t ) |
Straight | YZ1225 | 1200 | 2500 |
| 3 |
| 22 | 34 |
YZ1828 | 1800 | 2800 |
| 4 |
| 30 | 59. 39 | |
YZ1636 | 1600 | 36000 | 4 | 1. 2~1. 9 | 0. 26~2. 61 | 22 | 51. 023 | |
YZ2245 | 2200 | 4500 | 3. 5 | 3. 2~5. 3 | 0. 23~2. 25 | 45 | 125. 462 | |
YZ2555 | 2500 | 55000 | 3 | 7. 3~9. 8 | 0. 79~2. 38 | 55 | 191. 203 | |
YZ2820 | 2800 | 20000 | 4 | 15~18 | 0. 8~1. 45 | 75 | 186. 373 | |
YZ3060 | 3000 | 60000 | 3. 5 | 16~20 | 0. 49~2. 41 | 90 | 272. 510 | |
YZ3560 | 3500 | 60000 | 3. 5 | 28~40 | 0. 65~2. 25 | 125 | 347. 872 | |
YZ4030 | 4000 | 30000 | 4 | 52~70 | 0. 38~3. 52 | 160 | 415. 103 | |
YZ4262 | 4200 | 62000 | 3. 5 | 80~105 | 0. 38~3. 52 | 315 | 541. 615 | |
Diameter | YB1626 | 1600/1400 | 26000 | 4 | 0. 7~1. 1 | 0. 41~3. 85 | 18. 5 | 38. 621 |
YB1939 | 1900/1600 | 39000 | 4 | 2. 2~2. 7 | 0. 27~2. 58 | 22 | 60. 841 | |
YB2545 | 2500/2200 | 45000 | 3. 5 | 4. 5~6. 2 | 0. 25~2. 18 | 45 |
102. | |
YB3560 | 3500/3000 | 60000 | 3. 5 | 23`32 | 0. 65~2. 28 | 125 | 310. |

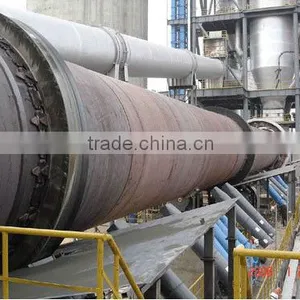

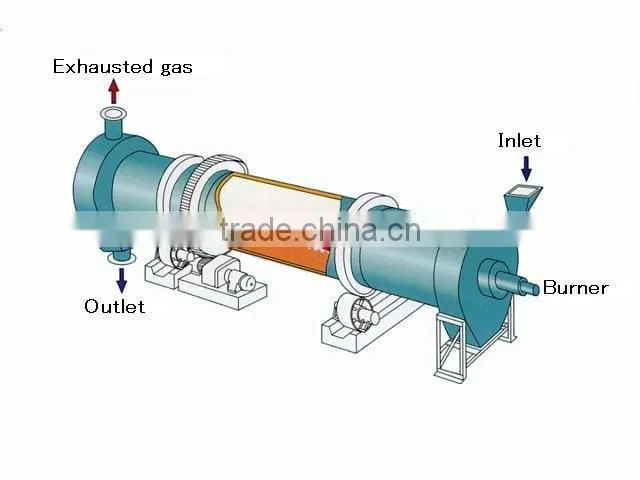

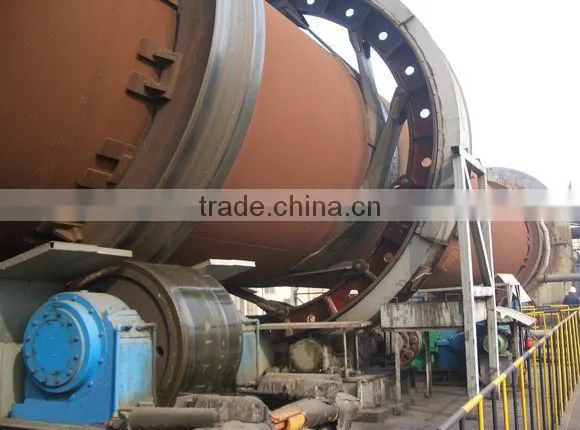

The pictures of rotary kiln:
