Utility Small-scale YZseries rotary kiln with best quality and competitive price

Specifications

1) Stable operation,best performance
2) Less wearing parts,high efficiency
3) Low power consumption
4) BV/CE/ISO9001:2008

Brief Introduction of rotary kiln:

The rotary kiln is mainly used in calcination clinker. And the cement kiln also can be divided into dry production cement kiln and wet production cement kiln. The metallurgy chemical rotary kiln is mainly used in metallurgical industry like magnetizing roasting poor iron in steel iron plant, silicon thermal to roast active lime and dolomite which used in steel iron plant and ferroalloy plant.



Our rotary dryer system is after technology innovation, being used in the most advanced hydraulic gear wheel device, the metering piston pump of high precision, the high precision control valve and contact graphite blocksealing devices and other advanced technologies. It features in easy to operate and operational safety. Compared with the same specification equipment, the rotary kiln stabilizes the thermal system program and improves the equipment operation rate, with the operation rate increased by 10%, the yield increased by 5% -10% and heat consumption reduced by 15%.

Working Principle of rotary kiln:
(1)With a certain slope to the level, the whole kiln body is supported by rollers and fitted with thrust rollers to control up and down movement of the kiln body.
(2) Besides main driving unit for driving system, it is also fitted with the auxiliary driving unit so as to ensure the kiln body still can rotating when the main motor is powered off and prevent it from deforming.
(3) The kiln head adopts housing type sealing and kiln rear uses axial contact sealing unit so that reliability of sealing could be ensured.

Technical parameters of rotary kiln:

Type	Model	Shell Dia(mm)	Shell Length (mm)	Gradient (%)	Output(t/h)	Rotate Speed(rpm)	Motor Power(Kw)	Weight( t )
Straight  Shell Rotary Kiln	YZ1225	1200	2500		3		22	34
	YZ1828	1800	2800		4		30	59. 39
	YZ1636	1600	36000	4	1. 2~1. 9	0. 26~2. 61	22	51. 023
	YZ2245	2200	4500	3. 5	3. 2~5. 3	0. 23~2. 25	45	125. 462
	YZ2555	2500	55000	3	7. 3~9. 8	0. 79~2. 38	55	191. 203
	YZ2820	2800	20000	4	15~18	0. 8~1. 45	75	186. 373
	YZ3060	3000	60000	3. 5	16~20	0. 49~2. 41	90	272. 510
	YZ3560	3500	60000	3. 5	28~40	0. 65~2. 25	125	347. 872
	YZ4030	4000	30000	4	52~70	0. 38~3. 52	160	415. 103
	YZ4262	4200	62000	3. 5	80~105	0. 38~3. 52	315	541. 615
Diameter -changing Rotary Kiln	YB1626	1600/1400	26000	4	0. 7~1. 1	0. 41~3. 85	18. 5	38. 621
	YB1939	1900/1600	39000	4	2. 2~2. 7	0. 27~2. 58	22	60. 841
	YB2545	2500/2200	45000	3. 5	4. 5~6. 2	0. 25~2. 18	45	102.  367
	YB3560	3500/3000	60000	3. 5	23`32	0. 65~2. 28	125	310.  263

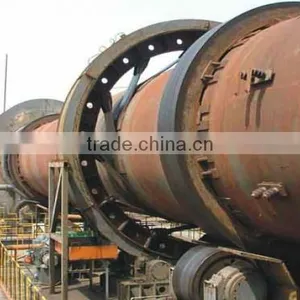

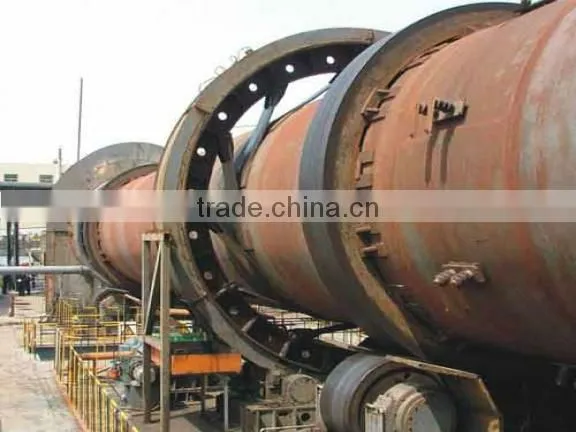

The pictures of rotary kiln:
