Specifications

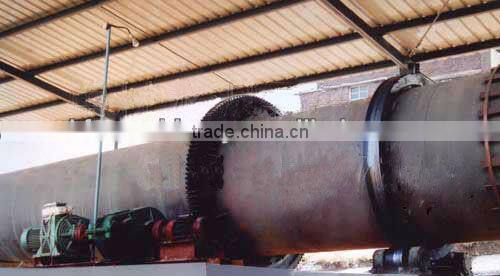

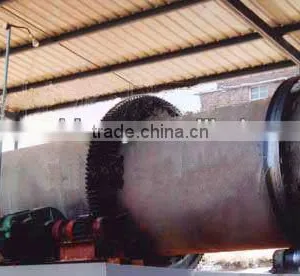

simple structure, long service life, high rates, stable operation, high heat transfer efficiency, low heat consumption.The structure and working principle of Ceramic Granule Rotary Kiln:
First, ceramic granule rotary kiln consist of the rotary kiln body, support device, kiln head and stern sealing device, pulverized coal injection pipe device etc.
Second, between the kiln body and horizontal have an angle, the whole kiln body's round by supporting device, and has a catch wheel device controls the kiln body move up and down.
Third, transmission parts in addition to set the main transmission but also set up auxiliary transmission device which can ensure still supply power make the kiln body rotated slowly when the main transmission is not work. This can prevent the kiln body deformation . Kiln head adopts shell prover seal ,guarantee the reliability of the sealK
The Features of Ceramic Granule Rotary kiln:
1. simple structure, long service life, high rates, stable operation, high heat transfer efficiency, low heat consumption,
2. temperature automatic control, super temperature alarming, two times wind waste heat utilization, long service life kiln lining,
3. advanced kiln head sealing technology, stable operation, high output and other notable features.
Application of Ceramic Granule Rotary Kiln:
Ceramic granule rotary kiln is widely used in the dolomite and kaolinite, bauxite, refractory burden, cement, limestone, titanium iron powder,activated carbon, coke, kuangfen, alumina, magnesium oxide, zinc oxide,special cement and other industry.
Main technical parameter :
| No. | Specification(m) | capacity | Slope(%) | Rotate speed (r/min) | Motor | Reducer Model | ||
| Capacity/hour(m3/h) | Capacity /year (m3/y) | Model | Power(kw) | |||||
| 1 | φ1.5×26 | 3.21~3.85 | 19600~23500 | 4 | 1.2~3.6 | YCT-250-4A | 22 | ZQ850 |
| 2 | φ1.8×28 | 4.56~5.46 | 27800~33400 | 4 | 1.2~3.6 | YCT280-4A | 30 | ZL75 |
| 3 | φ2.2×30 | 6.34~7.6 | 38800~46500 | 4 | 1~3.0 | YCT315-4A | 45 | ZS125 |
| 4 | φ2.4×33 | 8.32~9.99 | 50900~61100 | 4 | 1~3.0 | YCT315-4B | 75 | ZS125 |
| 5 | φ2.6×28- φ3.0×20 | 14.68~17.62 | 89800~107800 | 4 | 1.2~3.6 | YCT355-4C | 90 | ZS165 |
