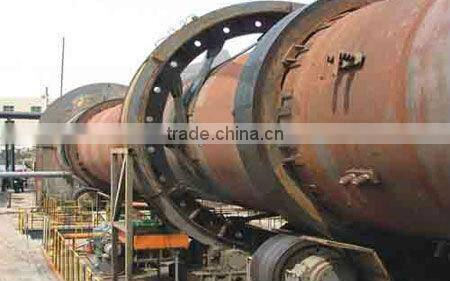

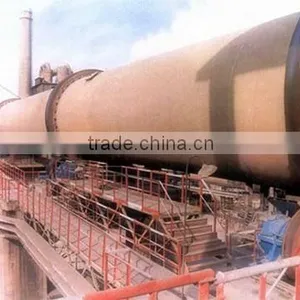

2015 hot selling Chrome Ore Rotary Kiln
Features of Titanium chrome ore rotary kiln:
1.Simple structure;
2.Convenient and reliable control during the production process;
3.A few wearing parts;
4. High operation ratio.
Working principles of Titanium chrome ore rotary kiln:
1. Crushing and milling,The dry crude material will be crushed and milled first.
2. Calcination:After milling, the materials would enter the kiln outlet( high end of the cylinder) through the preheater, and then are fed into the kiln by the tremie pipe. Meanwhile, The heating source is sprayed into kiln by burner barrel in the head of the kiln. Due to the inclination of the cylinder and slow rotation of the cylinder, the materials roll in hoop direction.
3.Cooling:Then the materials are discharged from the head of the kiln and enter the cooling device and be cooled.
4. Screening:Then they will go through the screens and final products will be conveyed to the yard. The big size materials will be sent back and processed.
Technical parameters of Titanium chrome ore rotary kiln:
| Specifications Model (m) | Size of the kiln | Yield (t/h) | Speed (r/min) | Electrical Power (kw) | Weight (t) | ||
| Diameter (m) | Length (m) | Gradient (%) | |||||
| 1.4×33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 |
| 1.6×36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 |
| 1.8×45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 |
| 1.9×39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 |
| 2.0×40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 |
| 2.2×45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 |
| 2.5×40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 |
| 2.5×50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 |
| 2.5×54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.45 | 55 | 196.29 |
| 2.7×42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 |
