Low Power Consumption Raymond Grinder Mill With Less Investment

Henan Kefan Mining Machinery Co., Ltd.

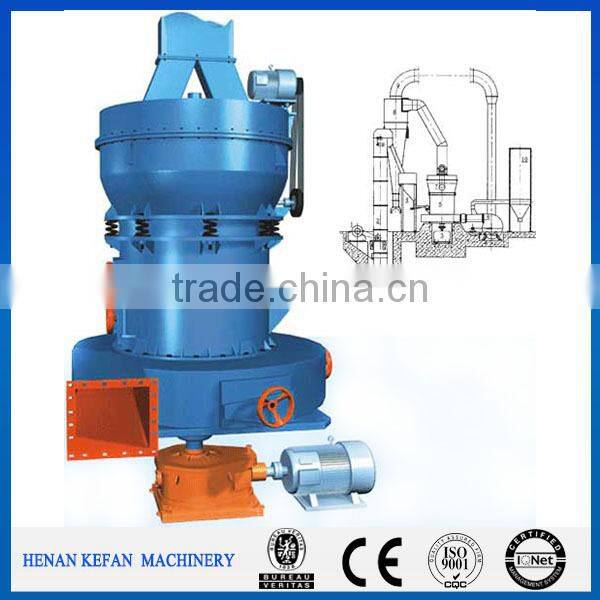

Low Power Consumption Raymond Grinder Mill With Less Investment thumbnail-1

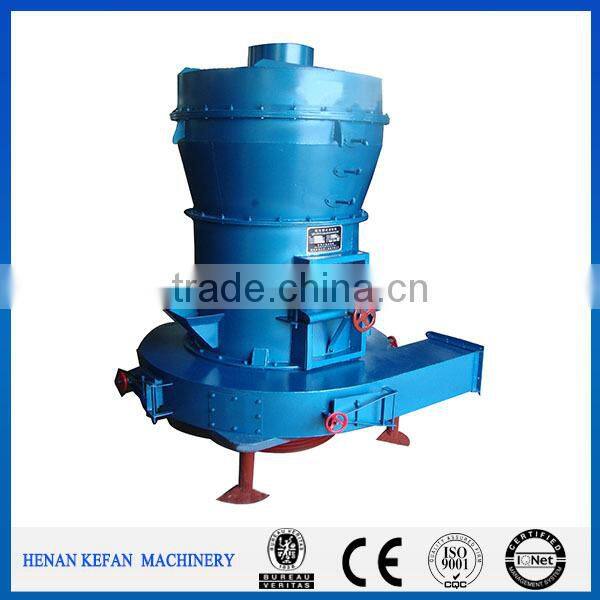

Low Power Consumption Raymond Grinder Mill With Less Investment photo-1
US$ 1,000 - 999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Raymond Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or the nearest port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Raymond Mill
Motor Type AC Motor
Power(W) 7.5-75 kw
Capacity(t/h) 0.3-10, 3-10
Place of Origin Henan, China
Brand Name Henan kefan
Model Number 3R/4R/5R
Dimension(L*W*H) Depend on the model
Weight 2.0-24 t (depend on the model)
Certification ISO,CE,BV
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



Low Power Consumption Raymond Grinder Mill with Less Investment

Low Power Consumption Raymond Grinder Mill with Less Investment



Raymond Mill(Raymond Grinder Mill) is relevant towards the grinding and processing of more than 280 types of non-flammable and non-explosive materials with hardness lower than 7 and humidity lower than 6% in mining, construction ,chemical industry and metallurgy, such as barite, calcite, feldspar,talcum, marble, limestone, clay, glass. The fineness from the finished product could be adjusted from 100 mesh to 325 mesh according to specific requirements of clients.

Working Principle of Raymond Grinder Mill:
Load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring. When the roller rolls, the stuff is thus grinded.
After being grinded, the stuff is to be routed to the sorter along the wind belt of the blower and the rough powder will be put back to the grinder for regrinding. The fine powder flows into the product cyclone collector together with airflow and is expelled from the powder output pipe as product.
In the grinding chamber, since the stuff may contain moisture to some extent, the heat generated during grinding makes the moisture evaporated; since the pipeline joints are not airtight, the external air is sucked in and the circulation air mass increases. In order to enable the grinder to work under negative pressures, the increased airflow is guided to the deduster anew sequentially to the atmosphere after purification.

Raymond Mill Structural Characteristics:
1.The machine adopts electromagnetic vibrating feeder, which ensures even and regular feeding.Raymond mill is easy to adjust, small in dimension, light in weight, with lower oil and power consumption and easy to maintain.
2.The transmission device of the main unit is equipped with an in depth gearbox which ensures its smooth transmission and reliable operation. Attendance of operater is not required within the mill operating room because the adoption of advanced central control console switch.
3.The complete raymond grinder is of a standing structure. Raymond mill features small occupying space and strong integration capacity. Raymond mill can take shape a completely independent production system from the lump materials , crushing to finished powder and packaging.
4.Every one of the finished particles use a good uniformity of fineness, with passing screen rate as high as 98%. This is what other machine cannot reach.

Raymond Mill Technical Paramters:

Model3R21153R26153R27153R30164R3216
RollerNumber33334
Diameter (mm)210260270300320
Height (mm)150150150160160
RingInside diameter (mm)630780830880970
Height (mm)150150150160160
Maximum feed size (mm)1515-2015-2015-2020-25
Output size (mm)0.044-0.1650.044-0.1650.044-0.1650.044-0.1650.044-0.165
Power of main frame (kW)1518.5223037
Fineness of final product (mm)0.165capacity (t/h)1.2-1.81.8-2.52.3-2.82.6-3.23.2-4.5
0.0750.6-1.21.2-1.81.8-2.31.9-2.62.4-3.1
0.0440.6-1.00.8-1.20.9-1.71-1.91.8-2.5

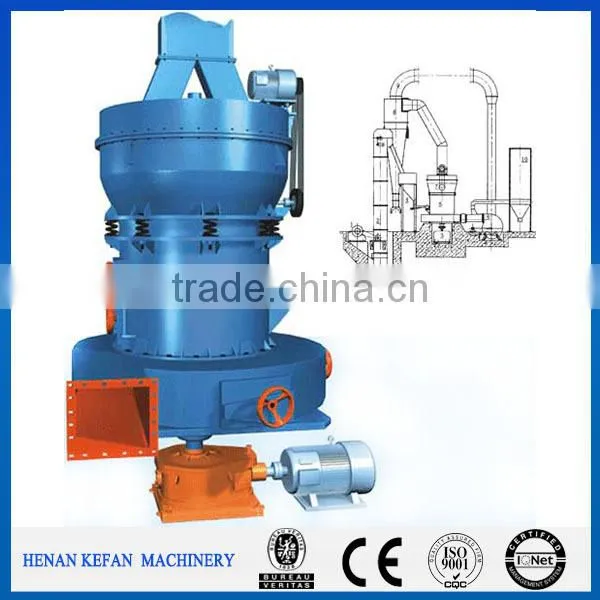

Low Power Consumption Raymond Grinder Mill with Less InvestmentLow Power Consumption Raymond Grinder Mill with Less Investment





Low Power Consumption Raymond Grinder Mill with Less InvestmentLow Power Consumption Raymond Grinder Mill with Less Investment
