2015 New Design Raymond Mill of Kefan
US$ 1,000 - 99,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Raymond Mill
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
nearest port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 New Product Raymond Mill of KefanUS$ 1,000 - 99,999MOQ: 1 Set -
Raymond Mill With Friendly EnvironmentUS$ 1,000 - 99,999MOQ: 1 Set
-
2015 Superior Quality Grinding Mill/Raymond Mill In Large CapacityUS$ 1,000 - 9,000MOQ: 1 Set
-
Raymond Mill Parts With Low ConsumptionUS$ 1,000 - 99,999MOQ: 1 Set
-
Professional Top Quality Raymond Mill With Good PerformanceUS$ 1,000 - 99,999MOQ: 1 Set
Condition
New
Type
Raymond Mill
Motor Type
AC Motor
Power(W)
according to model
Place of Origin
Henan, China
Brand Name
Henan kefan
Model Number
3R2115
Certification
BV/CE/SIO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
2015 new design Raymond mill of Kefan
Brief introduction of Raymond Mill:
Raymond Mill(Raymond Grinder) is relevant towards the grinding and processing of more than 280 types of non-flammable and non-explosive materials with hardness lower than 7 and humidity lower than 6% in mining, construction ,chemical industry and metallurgy, such as barite, calcite, feldspar,talcum, marble, limestone, clay, glass. The fineness from the finished product could be adjusted from 100 mesh to 325 mesh according to specific requirements of clients.
Advantages:
- 1.The machine adopts electromagnetic vibrating feeder, which ensures even and regular feeding.Raymond mill is easy to adjust, small in dimension,light in weight, with lower oil and power consumption and easy to maintain.
- 2.The transmission device of the main unit is equipped with an in depth gearbox which ensures its smooth transmission reliable operation.Attendance of operater is not required within the mill operating room because the adoption of advanced central control console switch.
- 3.The complete raymond grinder is of a standing structure. Raymond mill features small occupying space and strong integration capacity. Raymond mill can take shape a completely independent production system from the lump materials , crushing to finished powder and packaging.
- 4.Every one of the finished particles use a good uniformity of fineness, with passing screen rate as high as 98%. This is what other machine cannot reach.

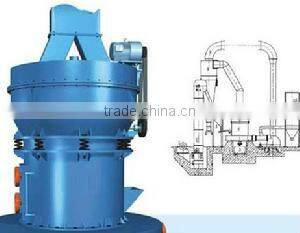

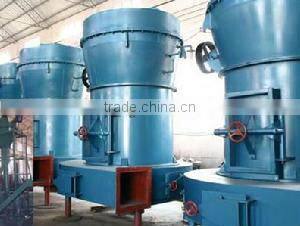

Pictures:
Technical parameters:
| Model | 3R2115 | 3R2615 | 3R2715 | 3R3016 | 4R3216 | ||
| Roller | Number | 3 | 3 | 3 | 3 | 4 | |
| Diameter (mm) | 210 | 260 | 270 | 300 | 320 | ||
| Height (mm) | 150 | 150 | 150 | 160 | 160 | ||
| Ring | Inside diameter (mm) | 630 | 780 | 830 | 880 | 970 | |
| Height (mm) | 150 | 150 | 150 | 160 | 160 | ||
| Maximum feed size (mm) | 15 | 15-20 | 15-20 | 15-20 | 20-25 | ||
| Output size (mm) | 0.044-0.165 | 0.044-0.165 | 0.044-0.165 | 0.044-0.165 | 0.044-0.165 | ||
| Power of main frame (kW) | 15 | 18.5 | 22 | 30 | 37 | ||
| Fineness of final product (mm) | 0.165 | capacity (t/h) | 1.2-1.8 | 1.8-2.5 | 2.3-2.8 | 2.6-3.2 | 3.2-4.5 |
| 0.075 | 0.6-1.2 | 1.2-1.8 | 1.8-2.3 | 1.9-2.6 | 2.4-3.1 | ||
| 0.044 | 0.6-1.0 | 0.8-1.2 | 0.9-1.7 | 1-1.9 | 1.8-2.5 | ||
Certification:
