Super Energy-saving Sand making production line for sale

Specifications

1.High capacity and low investment
2.Easy operation and maintence
3.High degree of automation
4.High broken ratio







Description of sand making production line



The sand production line successfully applied in limestone, basalt, granite, pebbles and other rock crushing processing, the finished product quality can reach GB14685-2001 standards, and can provide qualified aggregate for higher highway, railway, industry such as water conservancy, concrete mixing station. Sand production line have high degree of automation, broken, high productivity, large quantity, after broken products are in cubic shape. Full set of sand production line equipment can provide you with comprehensive technical support, the sand production line mainly include vibrating feeder, jaw crusher, impact crusher, vibrating screen and other equipments, which can constitute a complete sand production line.

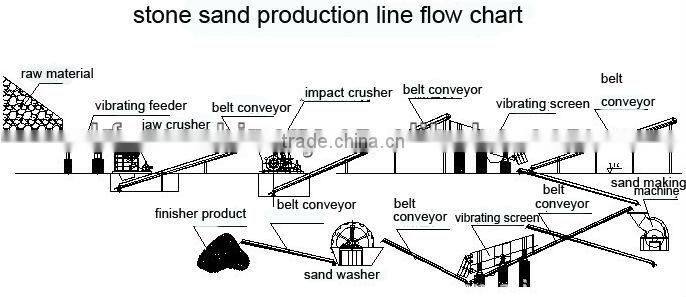

Basic procedure of  sand  making production line



First of all, the stone enter crushing machine for preliminary broken, and then, a coarse material production enterto finely machine for further broken by belt conveyor. the fine grinding of stone divide two kinds of stones through vibrating screen.The fine stone met the machine feeding size enter to sand making machine, and the other part return for fine broke



Main equipment of  sand  making production line



1. New series DZ vibrating feeder, solve the problems of feeding evenly, as well as reducing the working intensity of worker (which will save 1 feeing worker per shift) and the belt wearing, and provide favorable conditions for high and stable productivity.



2. New type Jaw crusher is in the feature of high ratio of crushing, even fine size, simply structure, reliable working condition, easy maintenance and low operation cost. Jaw crusher is used to crush kinds of mining stone primarily, and the largest compression resistance of the material is 320MPa. The Jaw Crusher is widely used in some mining, metallurgy, industry, building material, highway, railway, and chemical industry.



3. This kind of Impact crusher can crush many kinds of materials with max feed size less than 500mm and crushing strength less than 360 MP., which used as the secondary cushing after the Jaw crusher It has the features of high ratio of crushing, high efficiency of crushing, easy to maintenance, etc. The final products are with cubic shapes and are the ideal equipments for construction the highway and water and electricity construction. In addition, impact crushers are more suitable to process granite, limestone, bank gravel etc. in the area of highway construction, water conservancy project and architecture. Hammer is made of high chrome; linerboard is made of wearable materials;



4. The new series YA Circular Vibrating Screen is the latest screening equipment, which is specially designed screening machinery of quarry. The Circular Vibrating Screen is in the feature of series of complete specifications, new designed structure, strong excitation power, large handling, high screening efficiency, low vibrating noise. The new design and sophisticated manufacturing made the vibrating screen become popular in southeast Asia owing to its during manufacturing, easy maintenance.



5. Sand Making Machine (namely PCL vertical shaft impact crusher) is of high-power and low-consumption, which is designed depending on several years’ hard work and study of mechanical mining equipment. Sand Making Machine absorbs advanced technology of the same products of Barmac Company of America, now it is of the international level. Sand Making Machine plays an important role in crushing minerals into pieces. PCL vertical shaft impact crusher is widely used in all kinds of minerals, cement, refractory material, carborundum grain, glass raw material, construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnetite, such materials are with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers





Technical  parameters of  sand  making production line



100t/h sand making production line
name	model	power(kw)	weight(t)	quantity(set)
vibrating feeder	GZD900*3000	1.5*2	3.5	1
jaw crusher	PE500*750	55	12	1
impact crusher	PXJ1200*1200	132	19.5	1
vibrating screen	YK1500*4000	11	4.3	1
sand washer	XS2900	7.5	5.3	1
