High efficiency 120T/H sand making production line in China

Specifications

sand making production line
1)high capacity and efficiency;
2)BV/CE/ISO9001:2008;
3)good shape,easy maintenance.

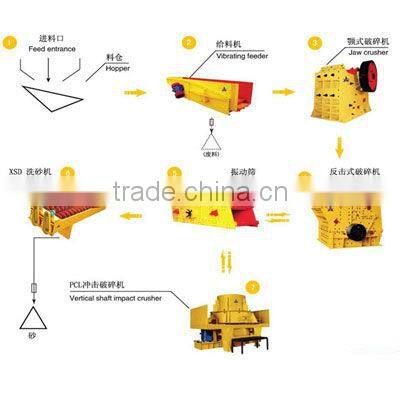

120 T/H  sand making production line Flow:
The 35T/H sand making production line produced by our company can provide you with all-around technical support. The  sand making production line consists of vibrating feeder, jaw crusher, Vertical Shaft Impact Crusher, vibrating screen and belt conveyor. According to specific requirements, we can combine different models together to meet various needs.

1.Brief introduction of 120T/H sand making production line:
The raw materials are first put into elementary-crushing machine for crush, and then the belt conveyor transfers the elementary products to the secondary-crushing machine for secondary crush. The secondary products will be separated into two kinds by the vibrating screen. The parts satisfying the standard of the Vertical Shaft Impact Crusher will be conveyed to the sand-making machine and the other parts will return to the secondary-crushing machine. The parts into the sand-making machine will be the finished products after being washed in the sand-washing machine.

2, Features of 120 T/H sand making production line:
The sand making production line is highly automatic, with low operation cost, high crushing ratio, low power consumption, high capacity, low pollution and easy maintenance. The size of the finished product is even and in good shape, which meets the national sand-making standards.



120T/H sand making production line:

Name	Model	Motor power(kw)	Weight(t)	Quantity
Jaw crusher	PE600*900	75	17	1
Fine crusher	PXJ1400*1400	160	25	1
Vibrating screen	YK1800*4800	15	5.6	1
Sand washer	XS32900	11	8.87	1
Vibrating feeder	GZD1000*3600	1.5kw*2	4.1	1
