Economic Stone crushing production line /stone sand production line /gravel production line price
- 100 Set / Sets per Month
- the nearest port
- T/T Credit Card
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Other, production line | Application: | mining,metallurgical,building materials,highway,etc. |
Motor Type: | AC Motor | Power(W): | according to the model | Capacity(t/h): | according to the model |
Place of Origin: | Henan, China | Brand Name: | Henan kefan | Model Number: | various |
Dimension(L*W*H): | according to the model | Weight: | according to the model | Certification: | BV/CE/ISO |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Description of stone crushing production line
Stone production line can be used for hard limestone, granite, basalt, gravel and aggregate of other materials, and artificial sand operation, it is also suitable for water and electricity, building materials, highway, city construction and other industry applications.It is also important for the production and processing of highway pavement material, high grade pavement macadam, high-speed railway passenger dedicated line aggregate, aggregate of hydropower station, crushed stone of port and airport runway and other special field.
Main equipment of stone production line:
Stone production line is mainly composed of vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor, concentrated electronic control and other equipments. In order to meet different processing needs of various customers,it can be equipped with cone crusher, dust removal equipment and so on.

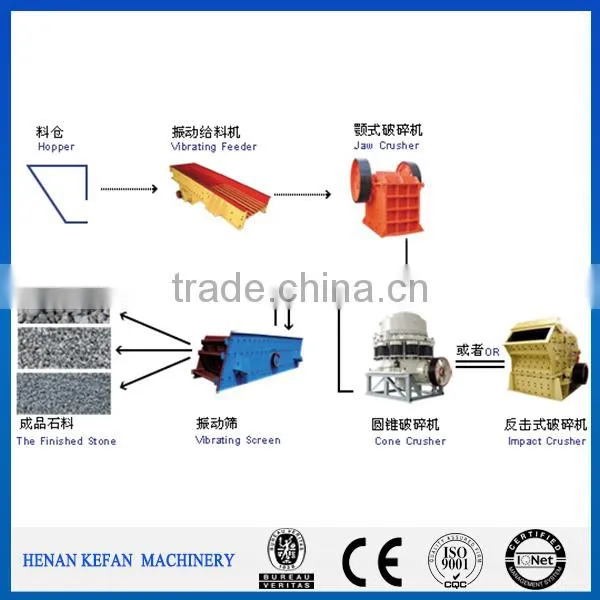

Working principle of stone production line:
Large stone via bin is evenly given into the jaw crusher for crushing by vibration feeder, coarse crushed stone is lift to counterattack crusher for further crushing by the belt conveyor; the stone finely crushed by a belt conveyor is transported to the vibration sieve for sieving, sieving out stones of different specifications, the stone that meets the size requirements is lifted to the finished material pile by the finished belt conveyor; Stones do not meet the size requirements returns to the counterattack crusher to be crushed again by a belt conveyor , forming a closed cycling. Finished product granularity can be combined and classified according to users' demands,it can be equipped with auxiliary dust removing device to protect environment.
Advantages and Characteristics of stone production line:
(1)Stone production line has a high degree of automation, the entire production line except boot downtime and maintenance, the process is quite simple, it almost does not need manual operation
(2) It also has high production efficiency, low operation cost, high yield, high profits, uniform finished stone particle size as well as good grain shape,the stones it produces are in line with national high speed material requirements.
(3) Crushing screening equipment designed by Henan Kefan in the design process, as a result of reasonable matching between all levels crushing equipment as well as stringent space cross layout, so it has advantages of small occupation area, high investment economic benefit, good quality of crushed stone powder, low yield of stone powder, meanwhile it is equipped with advanced electronic control operation system, which ensures the smooth discharge , reliable running, convenient operation, high efficiency and energy saving of the entire process.
(4) Henan Kefan solves fatal problems that particle shape of finished aggregate produced by the traditional equipment and technology is unqualified, at the same time it overcomes the high production cost for processing hard rock of traditional technology and equipment causing by the serious wear.In addition, the production line,according to different size requirements on aggregate in different construction periods, flexibly adjusts the size of finished aggregate, produces marketable products, it is multi-purpose,which greatly reduces the project investment.
Technical Parameter of stone production line:
Model | Max.feeding size (mm) | Capacity(t/h) | Vibrating feeder | jaw crusher | impact crusher | vibrating sceen | belt conveyor(m) | installed power(kw) |
1 | 340 | 30 | GZD2511(3kw) | PE400×600(30kw) | PF1007(45kw) | 3YZ1236 (15kw) | 60-90 (20kw) | 120 |
2 | 340 | 50 | GZD3117(10kw) | PE400×600(30kw) | PF1007(45kw) | 3YZ1545(22kw) | 100-130(30kw) | 140 |
3 | 420 | 80 | GZD3617(10kw) | PE500×750(55kw) | PF1010(75kw) | 3YZ1548(22kw) | 130-160(30kw) | 200 |
4 | 480 | 100 | GZD4321(13kw) | PE600×900(75kw) | PF1210(130kw) | 3YZ1548(22kw) | 140-180(40kw) | 280 |
5 | 560 | 150 | GZD4321(13kw) | PE750×1060(90kw) | PF1210(130kw) | 3YZ1845(22kw) | 200-240(50kw) | 300 |
6 | 630 | 200 | GZD4321(13kw) | PE900×1060(110kw) | PFB1212(140kw) | 3YZ2050(30kw) | 200 (40kw) | 350 |
7 | 630 | 250 | GZD5027(17kw) | PE900×1060(110kw) | PFB1214(180kw) | 3YZ2050(30kw) | 200(40kw) | 400 |
8 | 630 | 300 | GZD5027(17kw) | PE900×1200(110kw) | PFB1214(180kw) | 3YZ2160(30kw) | 250 (50kw) | 450 |
9 | 700 | 350 | GZD5027(17kw) | PE1000×1200(132kw) | PFB1315(250kw) | 3YZ2160(30kw) | 250 (50kw) | 500 |
10 | 700 | 450 | GZD6223(28kw) | PE1000×1200(132kw) | PFB1214/2 (300kw) | 3YZ2145/2 (60kw) | 350 (60kw) | 600 |
