Professional Mutil-function Linear Motor Vibration Screen With Quality Guaranteed

Henan Kefan Mining Machinery Co., Ltd.

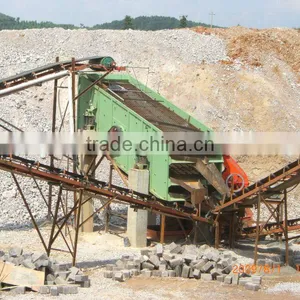

Professional Mutil-function Linear Motor Vibration Screen With Quality Guaranteed thumbnail-1
Professional Mutil-function Linear Motor Vibration Screen With Quality Guaranteed photo-1
US$ 1,000 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Linear
Application:
Other, Ore, mining, coal, metallurgy, chemical industry.
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
nearest port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Linear
Application Other, Ore, mining, coal, metallurgy, chemical industry.
Place of Origin Henan, China
Brand Name Kefan
Model Number ZSG1237
Voltage Industrial voltage
Power(W) 5.5*2
Dimension(L*W*H) 3800*2050*1920
Weight 1750
Certification BV/CE/ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Linear vibrating screen introduction:
Linear vibrating screen (Linear sieve), high efficient new screening equipment, is widely used in mining, coal, metallurgy, building materials, refractories, light industry, chemical industry. Linear vibrating screen (Linear sieve) is stable and reliable, low consumption, low noise, long life, stable modes, screening efficiency.Linear vibrating screen also screen and grade powdery, granular materials, is widely used in plastics, abrasives, chemicals, pharmaceuticals, building materials, food, carbon, fertilizer and other industries.


Linear Vibrating Screen Features:
1. good sealing, minimal dust spilling.
2. low energy consumption, low noise, long life screen.
3. high precision screening, large capacity, simple structure.
4. fully enclosed structure, automatic layout, more suitable for pipeline operations.
5. sieve body parts are made of rolled steel plates and profiles welded together (some groups of bolted connections between body) overall stiffness,solid and reliable.





Linear Vibrating Screen Technical parameters:



Model

 Specification(L*W)

Llayer

Mesh size(mm)

Feed size(mm)

Production Capacity(t/h)

Motor power(kw)

Weight

vibration frequency(Hz)

Double amplitude(mm)

Screen surface inclination Angle(°C)

Overall dimensions(L*W*H)

ZSG1237

3700*1200

1

4-50

≤200

10-100

5.5*2

1750

16

6-8

15

3800*2050*1920

2ZSG1237

3700*1200

2

4-50

≤200

10-100

5.5*2

2345

16

6-8

15

3800*2050*2200

ZSG1443

4300*1400

1

4-50

≤200

10-150

5.5*2

4100

16

6-8

15

4500*3040*2500

2ZSG1443

4300*1400

2

4-50

≤200

10-150

5.5*2

4900

16

6-8

15

4500*3040*2700

3ZSG1443

4300*1400

3

4-50

≤200

10-150

5.5*2

5270

16

6-8

15

4500*3040*2820

2ZSG1548

4800*1500

2

5-50

≤200

15-200

7.5*2

5336

16

8-10

15

4800*3140*2814

3ZSG1548

4800*1500

3

5-50

≤200

15-200

7.5*2

5900

16

8-10

15

4799*3140*3014

2ZSG1848

4800*1800

2

5-50

≤300

50-500

7.5*2

6189

16

8-10

15

4799*3440*2814

3ZSG1848

4800*1800

3

5-50

≤300

50-500

7.5*2

6750

16

8-10

15

4799*3440*3014

4ZSG1848

4800*1800

4

5-50

≤200

50-500

11*2

7000

16

8-10

15

4799*3440*3503

2ZSG1860

6000*1800

2

5-150

≤300

80-600

11*2

8950

16

8-10

15

6000*3440

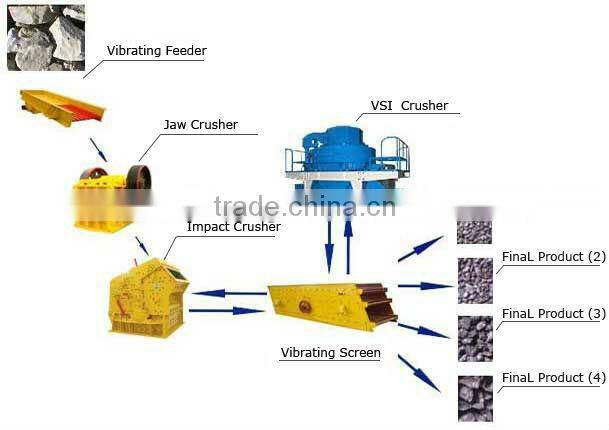

The flow chart of sand linear vibrating screen
