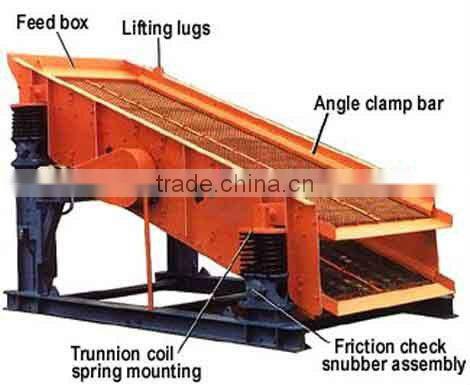

Instruction of Circular Vibrating Screen:
Circular Vibrating Screen earns this name by reason of its approximately circular movement. It is multilayer and high efficiency, which adopts exciter of eccentric shaft and eccentric block to adjust the amplitude, the screening line of materials is long. Screening's specifications are diverse, and it has been widely used in mine, constrution, transportation, energy and chemical industries. It is designed for screening stone stock of quarry, and also for classifying products of such departments as coal separator, mineral processing, building materials, electricity and chemical industry, etc.
Advantages of Circular Vibrating Screen:
1. It uses eccentric block to produce strong exciting force.
2. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.
3. It adopts tire coupling with capability of flexible connection and stable operation.
4. It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise.
Main Technical Parameters of circular vibrating screen
| Model | Screen Decker | Screen Size (mm) | Max.Feeding Size (mm) | capacity(t/h) | Vibrating Frequency (Hz) | Power(kw) | Weight(t) | Overall Dimensions (mm) |
| 3YK-1245 | 3 | 1200×4500 | 200 | 15-80 | 16.2 | 11 | 4.8 | 5600×1800×1850 |
| 2YK-1548 | 2 | 1500×4800 | 200 | 30-180 | 13-16 | 15 | 5.8 | 1906×2100×1600 |
| 3YK-1548 | 3 | 1500×4800 | 200 | 30-200 | 13-16? | 15 | 6.9 | 5906×2100×1600 |
| 4YK-1548 | 4 | 1500×4800 | 200 | 30-250 | 13-16 | 18.5 | 7.3 | 5906×2100×2150 |
| 2YK-1854 | 2 | 1800×5400 | 250 | 50-300 | 16.2 | 18.5 | 6.8 | 6509×2536×1810 |
| 3YK-1854 | 3 | 1800×5400 | 250 | 50-300 | 16.2 | 22 | 8.3 | 6509×2536×1910 |
| 4YK-1854 | 4 | 1800×5400 | 250 | 50-300 | 16.2 | 30 | 9.8 | 6509×2536×2250 |
| 2YK-2160 | 2 | 2100×6000 | 250 | 100-400 | 16.2 | 30 | 9.7? | 7150×2170×2120 |
| 3YK-2160 | 3 | 2100×6000 | 250 | 100-400 | 16.2 | 30 | 10.2 | 7150×2670×2270 |
| 4YK-2160 | 4 | 2100×6000 | 250 | 100-400 | 16.2? | 30 | 11.8 | 7150×2670×2650 |
| 2YK-2460 | 2 | 2400×6000 | 300 | 150-600 | 16.2 | 30 | 10.2 | 7150×2900×1950 |
| 3YK-2460 | 3 | 2400×6000 | 300 | 150-600 | 16.2? | 30 | 12.4 | 7150×2900×2350 |
| DF-1230 | 1 | 1200×3000 | 200 | 20-200 | 16.2 | 5.5? | 15.4 | 3500×1800×1100 |
| DF-1548 | 1 | 1500×4800 | 250 | 50-450 | 16.2 | 15 | 3.8 | 5330×2000×1300 |
| DF-1854 | 1 | 1800×5400 | 300 | 70-600 | 16.2? | 15 | 4.6 | 5630×2200×1320 |
| DF-2160 | 1 | 2100×6000 | 300 | 120-750 | 16.2 | 15 | 5.4 |
Relative equipment
About us
Henan Kefan Mining Machinery Co.,Ltd , established in 1980, is one of the first garden-like factories located in Zhengzhou which is one of the eight historic cities in China. Since established, We have passed ISO9001:2008 quality system authentication and CE certificate.We are also have a state-level quality management standard reaching ennterprise, member of China Brick&Tile Association and member of China Sand Association, the company has been taking the scientific management method of the modern enterprise, producing with meticulous care and non-stop creation and developing to become a bright pearl and pacemaker of the mechanical industry in our country.
Services
Our highly skilled technicians and experienced after-sale series team will provide you the most professional serive.
1)Help customers to choose the most appropriate equipment model.
2)Design and make productions based on customer's special requirement.
3)Products will be strictly inspected before loading.
4)Shipping delively will be based on the contract.
5)We are also offering plenty of accessories and various spare parts.
According to customers' demand, we supply the services in a flexible way not only the traditional services but also the Internet on-line services. Our engineer is 24 hours online.We try our best to carve out market and provide services all the time.
Before customers' purchase, we will send our engineers to customers' site to design the best flow chart;
After purchase, we will send the engineer to guide to install the machine, take trial run. Try our best to provide our customers with service of high quality and high efficiency. We welcome customers from home and abroad to visit our company and carry out cooperation!
