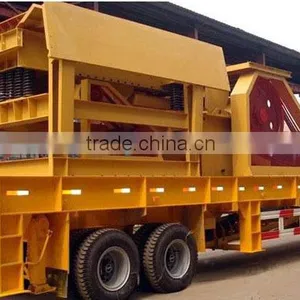

Superior Mobile Crushing Plant But Not Expensive

Specifications

1.Low energy and steel consumption
2.High capacity and crushing efficiency
3.Economical operation
4.Movable type

Introduction of Mobile Crushing Plant:

Mobile Crushing Plant is a new type of stone crushing plant, which is convenient for modern mining. It is developed according to novel series stone crushing equipments design idea, which expands the concept field of coarse crushing and fine crushing. Its design idea is based on the clients requirements, which clears faults of the crushing place, surroundings and the complex basic configurations.



Mobile Crushing Plant is a kind of crushing machine mainly used for processing materials in smelting, chemical industry, production of building materials, and power industry and so on. This series mobile crusher really supply simpler, higher efficient lower cost machines for clients. It is especially suitable for processing the stones used in road building and hydraulic power projects. Users can adopt different configurations according to categories and sizes of materials, and so on.



Outstanding performance of Mobile Crushing Plant:

1. PE Series high-performance crusher
2. Feeder and vibrating screen are all in one
3. Turn axle of traction is convenient for road transit and expanding the working place
4. Belt conveyor under screen, vibrating screen, crusher installation of an integrated on-board
5. Vehicle installational supporting is easier for equipment to station in the working place
6. Vehicle electric generating set, motors and control box are all included

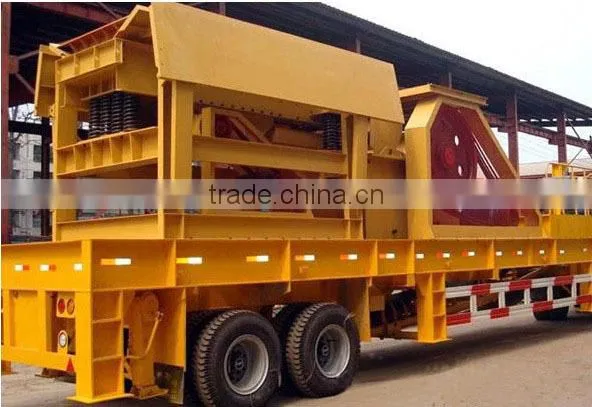

More pictures of Mobile Crushing Plant:

Applications and Features of Mobile Crushing Plant:



1. Integrated machine set
Integrated machine set is easy to install. This can not only eliminate complicated installation work, but also lower the consumption of materials and working hours.
The rational and compact structure makes the mobile crushing machine easy to be stationed.

2. Flexible maneuverability
The mobile crushing station has the characteristics of high chassis, narrow body, and small turning radius, which makes it easier to run on the highway, even on uneven ground surfaces in crushing sites, thus saving time and money.
Mobile crushing station can provide more flexible space and reasonable layout configuration for the whole crushing process.

3. Low transportation cost
Mobile crushing station can crush the materials on-site, so there is no need to transport the materials to a certain site for crushing. This largely reduces the transportation cost.
In addition, the lengthened machine can send the crushed materials directly into the transport truck.

4. Effective working
Integrative mobile crushing station can perform their own duty separately, as well as be configured with other components to meet customers' requirements, such as mobile crushing and mobile screening and so on. This will make the crushing and physical distribution more efficient, and thus minimize the cost.

5. Strong Adaptability and Flexible Configuration
Mobile crushing station is suitable for coarse crushing and fine grinding. It can work separately or be configured with other components to meet various requirements.
Diesel generator can not only supply power for this machine, but also supply electricity for the configured parts.
It has reliable performance and is convenient to maintain.



MainTechnical Parameters:

Spe.	Length (mm)	Width (mm)	Height (mm)	Max.Length (mm)	Max.Height (mm)	Max.Width (mm)	Belt Height (mm)	TireConfiguration	Weight (T)
YG93E69	12500	2450	4000	13200	4600	3100	2700	biax	42
YG1142E710	14000	2450	4800	15000	5800	3300	2700	three-axle	55
YG1349E912	15500	3000	4800	17000	5800	3500	3000	four-axle	72



Vehicle spe.: underpan height: 1720mm, height difference of wheel and underpan:380mm



Spec.	Feeder Spe.	Jaw Crusher Spe.	Belt Conveyor Spe.	Lengthen Belt Conveyor	Motor	Capacity	Power
YG938E69	GZD- 960*380	PE600*900	B650*7M	choosen	choosen	90-180t/h	91.5kw
YG1142E710	GZD-1100*4200	PE750*1060	B800*9M	choosen	choosen	110-320t/h	134kw
YG1349E912	GZD-1300*4900	PE900*1200	B1000*11M	choosen	choosen	220-450t/h	146kw
