Specifications

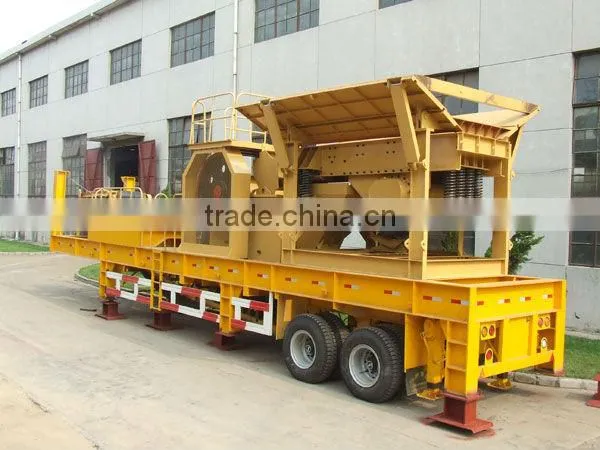

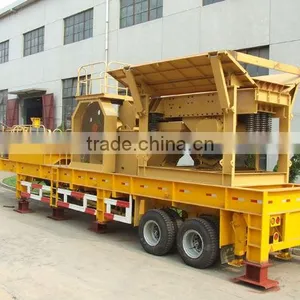

mobile crushing screening plant1)design depend on customer site;
2)widely used,large crushing ratio;
3)BV,CE,ISO9001.
This series of mobile crushing screening plant is mainly used in metallurgy, chemical industry,building material,hydroelectricity for processing the materials that always need to be moved and transterred, especially for the mobile operation work, such as highway,railway,hydroelectric project. The customer could make different disposition according to the different kind, dimension of the raw materials and different requirements for the finished product.
Advantages of mobile crushing screening plant :
1. Car motor and control box integration;
2. Car installation support,equipment,space efficient and convenient stationed;
3. High-performance crusher,large crushing ratio;
4. Steering traction axis, to facilitate road transport and venues depth;
5. Rational allocation according to the actual situation of the customer site.
Technical parameters of mobile crushing screening plant:
| PP Mobile Jaw crusher plant | PP600 | PP750 | PP900 | PP1060 | |
| Shipping Size | Length(mm) | 8600 | 9600 | 11097 | 13300 |
| Width(mm) | 2520 | 2520 | 3759 | 2900 | |
| Height(mm) | 3770 | 3500 | 3500 | 4440 | |
| Weight(kg) | 15240 | 22000 | 32270 | 57880 | |
| Axle Load(kg) | 10121 | 14500 | 21380 | 38430 | |
| Tractor Weight(kg) | 5119 | 7500 | 10890 | 19450 | |
| Jaw Crusher | Type | PE400*600 | PE500*750 | PE600*900 | PE750*1060 |
| Material Inlet | 400*600 | 500*750 | 600*900 | 750*1060 | |
| Adjusting range of discharge hole | 40-100 | 50-100 | 65-180 | 80-180 | |
| Capacity(m3/h) | 10-35 | 25-60 | 30-85 | 70-150 | |
| Vibrating Feeder | Type | GZD8030 | GZD8030 | GZD9638 | GZD1149 |
| Capacity of bin | 3 | 4 | 7 | 10 | |
| Width of bin | 2200 | 2500 | 3000 | 3000 | |
| Belt Conveyor Type | B500*6 | B650*7 | B800*8 | B1000*11 | |
