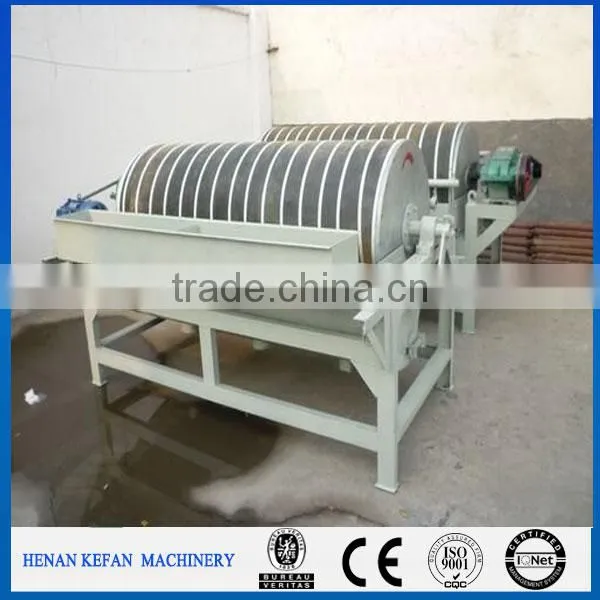

High Quality! Dry Drum Magnetic Separator
Drum Magnetic Separator —Product advantages
1.Good performance and high quality
2.Dry magnetic separation, suitable particle size 7~0mm
Drum Magnetic Separator — Product feature
1. Easy to transport
2. Safe and reliable
3. Dry magnetic separation, suitable for particle size range 7~0mm
Drum Magnetic Separator — Product application
1. Used for low grade ore preseparation. The concentration ratio of this equipment is high and the machine can improve the grinding grade by a large margin
2. Used for purifying iron ore concentrate and removing locked particle and gangue
3. Used for reselecting the gangue
4. Used for removing the magnetic impurity from powdery material
Drum Magnetic Separator — Product principle
When materials go through the permanent magnetic drum, the magnetic particles are absorbed to the drum surface and discharged through the magnetic product area. Meanwhile, the non-magnetic particles are ejected from the drum surface under the influence of the centrifugal force and gravitation and discharged through the non-magnetic product area.
Drum Magnetic Separator — Technology parameter
Model | Drum diameter x length | Rotating speed (r.p.m) | Magnetic induction of the drum surface in ore separating area(mT) | Upper limit of particle size of handled ores (mm) | Capacity | Wight of magnetic drum | Motor power | Weight |
CTG-0609 | 600×900 | 50-150 | >120 | 7-0 | 5-10 | 800 | 7.5 | 1800 |
CTG-0612 | 600×1200 | 10-15 | 1000 | 2000 | ||||
CTG-0612 | 800×1200 | 70-150 | 140 | 20-25 | 1400 | 2500 | ||
CTG-0818 | 800×1800 | 50-150 | >120 | 15-20 | 1800 | 11 | 3000 | |
CTG-0618 | 600×1800 | 70-150 | 140 | 40-45 | 2100 | 3600 | ||
CTG-0615 | 800×1500 | 30-45 | 2500 | 4200 |
