ISO,CE,BV Approved High Efficient Sand Rotary Dryer / Sand Dryer Price
Brief Introduction of Sand Rotary Dryer Low Price:
It mainly consists of rotary body, raw material feeding plate, driving and supporting device, etc. It is mainly used for cement, chemical, metallurgical, building materials industries. Its advantages are as follows: high dry capacity, smooth rotation, low energy consumption, easy operation, high output and so on.
Working Principle of Sand Rotary Dryer Low Price:

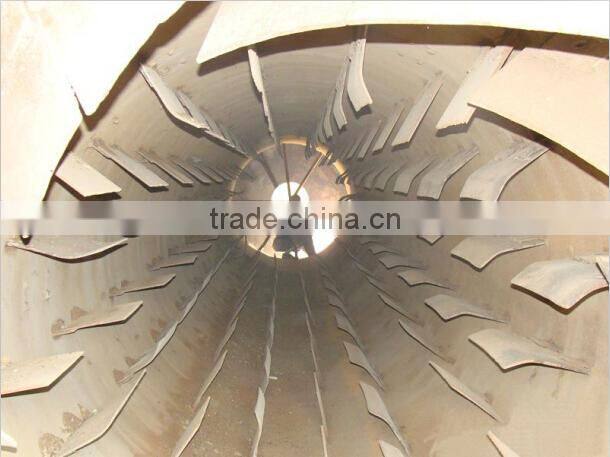

Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator. The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely. So drying efficiency is improved.
Output of Sand Rotary Dryer Low Price:
Our company has the annual output of 44,000 tons, 88,000 tons, 100,000 tons, 200,000 tons and 300,000 tons complete cement production line. We can provide on-site design, materials experimental, equipment installation and debugging, and the turnkey project of complete production line.
Technical Parameter of Sand Rotary Dryer Low Price:
| Model | Shell diameter(mm) | Shell length (mm) | Slope(°) | Rotary speed(r/min) | Weight(t) | Power(KW) | Volume(m3) |
| SD0.6×8 | 600 | 8000 | 3-5 | 8 | 5.1 | 6-4 | 2.26 |
| SD 0.8×10 | 800 | 10000 | 3-5 | 7.2 | 6.9 | 6-4 | 5.02 |
| SD 1.0×10 | 1000 | 10000 | 3-5 | 6.73 | 7.5 | 6-5.5 | 7.85 |
| SD 1.2×12 | 1200 | 12000 | 3-5 | 5.8 | 13.1 | 6-11 | 13.31 |
| SD 1.5×12 | 1500 | 12000 | 3-5 | 4.8 | 22.3 | 6-15 | 21.2 |
| SD 2.2×14 | 2200 | 14000 | 3-5 | 3.2 | 52.8 | 30 | 53.22 |
| SD 2.4×18 | 2400 | 18000 | 3-5 | 3 | 73.3 | 37 | 81.43 |
| SD 2.8×24 | 2800 | 24000 | 3-5 | 2.59 | 97 | 75 | 147.8 |
Certification of Sand Rotary Dryer Low Price:
We Don't Just Sell Slime ISO,CE,BV Approved High Efficient Sand Rotary Dryer / Sand Dryer Price ,We build Solutions.Please never hesitate to contact us,
we will be pleased to submit our offer together with our solution.
