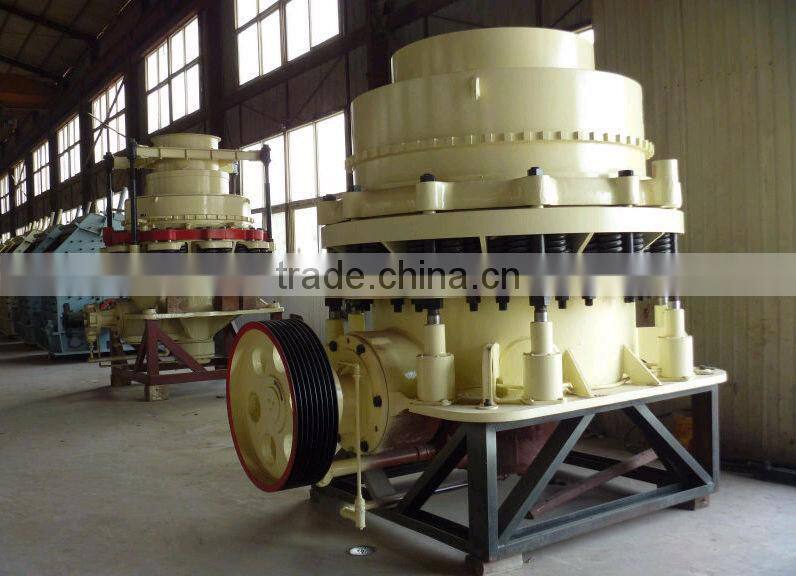

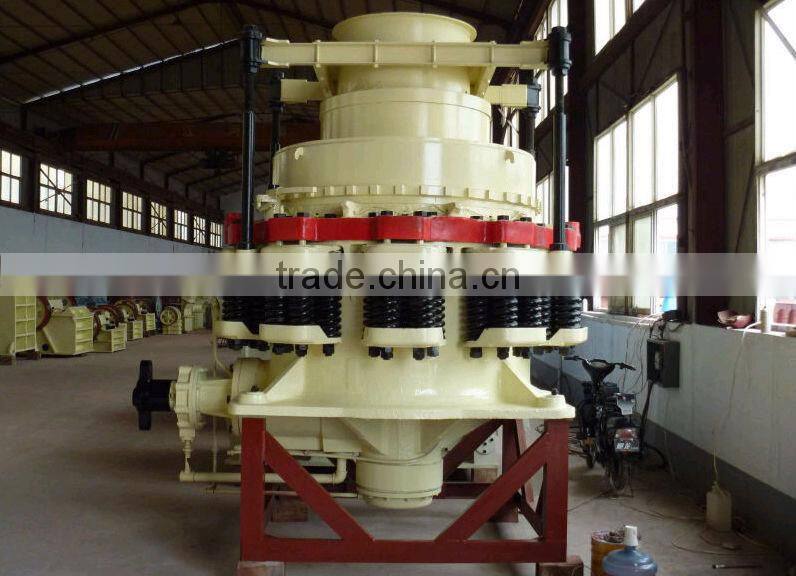

Introduction of Spring Cone Crusher:
Spring cone crusher is widely used in metallurgical industry, building materials industry, road building industry, chemical industry and silicate industry, suitable for crushing of medium or above hardness ores and rocks, the machine has a crushing force, high efficiency high handling capacity, low operation cost, easy adjustment, and economic characteristics.
Parts selection and structural design is reasonable, it is long life, broken product particle size uniformity, reducing cycle load, medium and large-sized crusher, hydraulic clean cavity system, reduces downtime, and each specification crusher cavity type, depending on the needs of the user can choose different type of chamber, in order to better adapt to user needs.
Application of Spring Cone Crusher:
Secondary and tertiary crushing: mining, aggregate, metallurgy, industrial, construction, environmental.
Advantages of Spring Cone Crusher:
- Robust and reliable design for hard stone crushing;
- High productivity with lowest total cost;
- Various of cavity choice;
- Easy operation and simple maintenance.

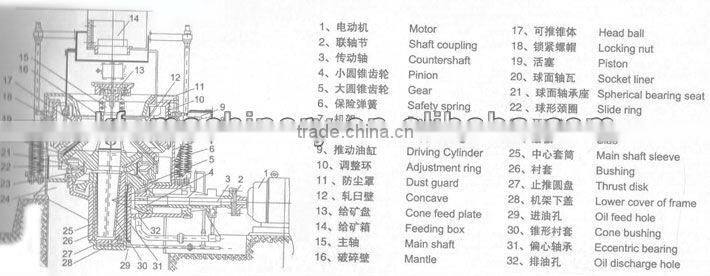

Structure of Spring Cone Crusher:
Technical Parameters of Spring Cone Crusher:
| Model | Cone Broken Head Bottom Diameter(mm) | Max.Feeding Size(mm) | Capacity(t/h) | Rotor Speed(r/min) | Motor Power(KW) | Weight(t) | Discharge opening(mm) | Overall Dimensions(mm) |
| PYB900 | 900 | 115 | 50-90 | 333 | 55 | 11.2 | 15-50 | 2692*1640*2350 |
| PYZ900 | 900 | 60 | 20-65 | 333 | 55 | 11.2 | 5-20 | 2692*1640*2350 |
| PYD900 | 900 | 50 | 15-50 | 333 | 55 | 11.3 | 3-13 | 2692*1640*2350 |
| PYB1200 | 1200 | 145 | 110-168 | 300 | 110 | 24.7 | 20-50 | 2790*1878*2844 |
| PYZ1200 | 1200 | 100 | 42-135 | 300 | 110 | 25 | 8-25 | 2790*1878*2844 |
| PYD1200 | 1200 | 50 | 18-105 | 300 | 110 | 25.3 | 3-15 | 2790*1871*2844 |
| PYB1750 | 1750 | 215 | 280-480 | 245 | 160 | 50.3 | 25-50 | 3910*2894*3809 |
| PYZ1750 | 1750 | 185 | 115-320 | 245 | 160 | 50.3 | 10-30 | 3910*2894*3809 |
| PYD1750 | 1750 | 85 | 75-230 | 245 | 160 | 50.2 | 5-13 | 3910*2894*3809 |
| PYB2200 | 2200 | 300 | 590-1000 | 220 | 280 | 80 | 30-60 | 4622*3302*4470 |
| PYZ2200 | 2200 | 230 | 200-580 | 220 | 280 | 80 | 10-30 | 4622*3302*4470 |
| PYD2200 | 2200 | 100 | 120-340 | 220 | 280 | 81.4 | 5-15 | 4622*3302*4470 |
Certification:
