Advanced Technology Impact Crusher

Advanced Technology Impact Crusher thumbnail-1
Advanced Technology Impact Crusher photo-1
US$ 1,000 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Impact Crusher
Application:
mining, cement, coal, metallurgic material, construction material, ect
Contact Supplier Request Quote Chat Now
Henan Kefan Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
nearest port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Impact Crusher
Application mining, cement, coal, metallurgic material, construction material, ect
Motor Type AC Motor
Power(W) 55 kw
Capacity(t/h) 24-45 t/h
Place of Origin Henan, China
Brand Name Kefan impact crusher
Model Number PF1007
Dimension(L*W*H) 2400*1558*2660 mm
Weight 9.5 tons
Certification BV;CE;ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Introduces of impact crusher :

  impact crusher is new product designed by our company after absorbing the advanced technology home and abroad. This kind of crusher can crush many kinds of materials with max feed size less than 500mm and crushing strength less than 350 Mpa. Its features are high ratio of crushing, high efficiency of crushing, easy to maintenance, etc.



The final products are with cubic shapes and are the ideal secondary and tertiary crushing equipments for construction the highway and water and electricity construction. In addition, impact crushers are more suitable to process granite, limestone, bank gravel etc in the area of highway construction, water conservancy project and architecture.





Characteristics of  impact crusher

  1. Hammer is made of high chrome; liner board is made of wearable materials;
  2. Specially designed tooth impact plate;
  3. More suitable for crushing hard rock, high efficiency, low consumption;
  4. Final products is cubic, discharge opening is adjustable;
  5. Make the crushing flow chart simple.

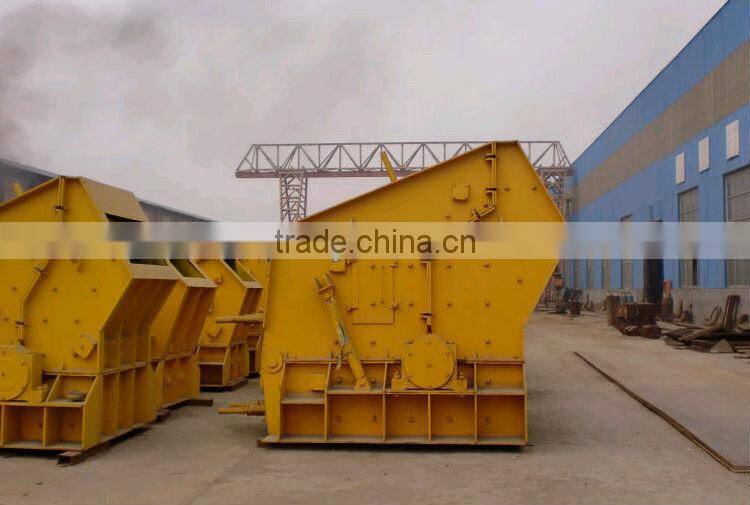

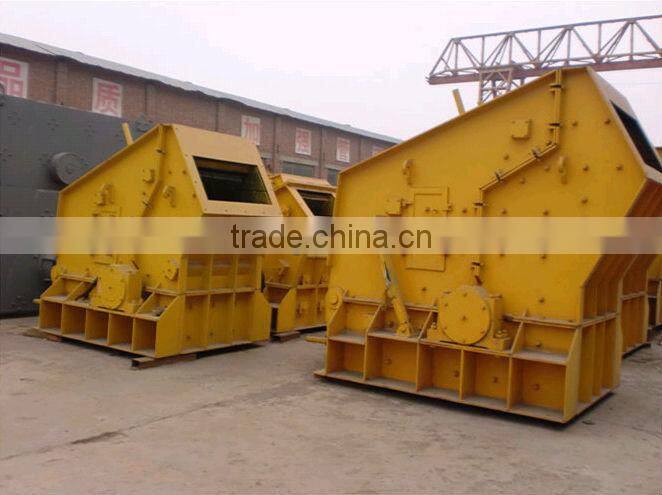

Advanced Technology impact crusherAdvanced Technology impact crusher



Advantages of impact crusher:

  1. Advanced design;
  2. High reduction ratios;
  3. The below bar with high chrome;
  4. Hydraulic or manual open switch;
  5. Impact with special shape;
  6. Excellent,stress-free,cubical-shape products;

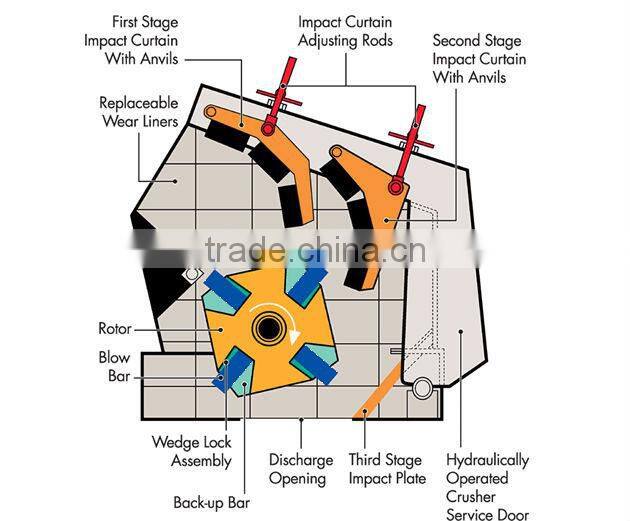

Structure of impact crusher:

Advanced Technology impact crusher



Technical parameters of impact crusher:

Model Specification(mm) Feeding Size(mm) Max Feed Size(mm) Capacity(t/h) Motor Powder (kw)
PF-0607 644*740 320*770 100 10-20 30
PF-0807 850*700 400*730 300 15-30 30-45
PF-1008 1000*800 400*830 300 30-50 37-55
PF-1010 1000*1050 400*1080 350 50-80 55-75
PF-1210 1250*1050 400*1080 350 70-120 110-132
PF-1212 1250*1250 400*1300 350 100-150 132-160
PF-1214 1250*1400 400*1430 400 130-180 160-200
PF-1315 1320*1500 860*1520 500 160-250 180-260
PF-1320 1320*2000 860*2030 500 300-350 300-375



Certifications:

Advanced Technology impact crusher
