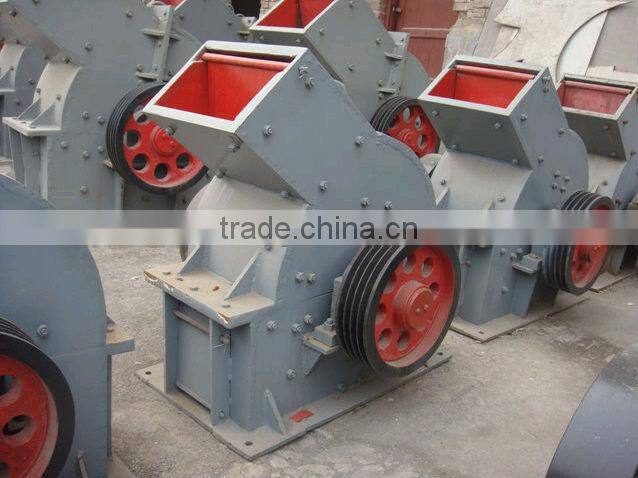

Introduction of single stage hammer crusher:
Single stage hammer crusher is widely used for medium or fine crushing for medium hard and brittle materials by departments of mine, cement, coal, building material, metallurgy, chemical industry, road construction, gas chemical industry and thermal power generation, etc. Coal gangue, coke, slag, limestone, phosphate rock, salt, whiting, gypsum stains, alum, brick and tile, etc. can be crushed by this equipment.
The compression strength of the materials shall not exceed 100MPa, while the moisture content shall be lower than 15%. The equipment can be also used for crushing chips and paper with fiber structure and strong elasticity and ductility, or recycling asbestos fiber by crushing wastes of asbestos cement, etc. Gap between the gratings are adjustable to change grain size of the discharge, so as to meet different requirements of the customers.
Advantages of single stage hammer crusher:
- Simple structure,large crushing ratio,high production efficiency;
- Low power consumption,energy saving and environmental protection;
- Uniform particle size;
- Less investment cost,easy to manage;
- Wide range of applications.
Technical Parameters:
Model |
Max feed size(mm) | Rotor diameter(mm) | Rotor length(mm) | Sieve residue of discharging size≤15% | Capacity(t/h) | Motor power(kw) | Weight(t) |
PCF-1412 |
600*600*900 | 1420 | 1200 | ≤25 | 80-130 | 130-190 | 23.5 |
| PCF-1616 | 800*80081000 | 1650 | 1630 | ≤25 | 130-240 | 250-350 | 43.3 |
| PCF-1817 | 900*900*1200 | 1850 | 1730 | ≤25 | 240-350 | 400-560 | 70 |
| PCF-2018 PCF-2018(1) | <1000*1000*1000 | 2020 | 1802 | ≤25 | 350-450 | 630-710 | 89 |
| PCF-2022 | 1000*1000*1500 | 2010 | 2230 | ≤25 | 400-600 | 630-800 | 111 |
| PCF-2022(1) | 1000*1000*1500 | 2010 | 2230 | ≤75 | 700-800 | 800 | 130 |
| PCF-1618 | <1000*1000*1000 | 1650 | 1830 | ≤25 | 240-280 | 400 | 49.5 |
| PCF-1818 | 750*750*800 | 1850 | 1830 | ≤25 | 300-350 | 560 | 70 |
| 2PCF-1818 | 1000*1200*1500 | 1850 | 1830 | ≤75 | 1000 | 560-710 | 119 |
| 2PCF-2022 | 1000*1000*1500 | 2020 | 2230 | ≤25 | 700-900 | 800*2 | 142 |
