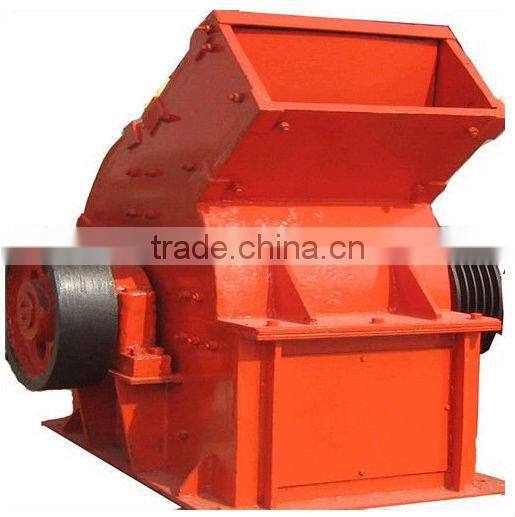

Introduction of Hammer Crusher:
The hammer crusher (hammer mill) crushes by the collisions between high-speed hammer and material, and the hammer crusher (hammer mill) is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic material, construction material, road building, and petroleum & chemical industries.The hammer crusher is suitable to crush various brittleness mineral, such as coal, salt, white and Asian, gypsum, alum, brick, tile, limestone, etc.
Application of Hammer Crusher:
Secondary and tertiary crushing: mining ,aggregate,metallurgy, industral,construction, environmental.
Operating principle of Reversible Hammer Crusher:
In the hammer mill machine, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required.
Advantages of Hammer Crusher:
- Simple structure,large crushing ratio,high production efficiency;
- Low power consumption,energy saving and environmental protection;
- Uniform particle size;
- Less investment cost,easy to manage;
- Wide range of applications.
Structure of Hammer Crusher:
Technical Parameters of Hammer Crusher:
| Model | Diameter of Rotor (mm) | Width of Rotor (mm) | Rotor Speed (r/min) | Max.Feeding Size (mm) | Max.Discharge Size (mm) | Capacity(t/h) | Power(Kw) |
| PC400×300 | 400 | 300 | 1000 | 50 | 10 | 2-8 | 7.5 |
| PC600×400 | 600 | 400 | 1000 | 80 | 15 | 9-20 | 22 |
| PC800×600 | 800 | 600 | 980 | 120 | 15 | 13-30 | 55 |
| PC800×800 | 800 | 800 | 980 | 160 | 15 | 35-65 | 75 |
| PC1000×800 | 1000 | 800 | 980 | 200 | 20 | 55-85 | 110 |
| PC1000×1000 | 1000 | 1000 | 980 | 250 | 20 | 80-120 | 132 |
| PC1200×1200 | 1250 | 1250 | 740 | 300 | 20 | 110-260 | 185 |
| PC1400×1400 | 1400 | 1400 | 740 | 350 | 25 | 240-450 | 250 |
| PC1600×1600 | 1600 | 1630 | 600 | 400 | 25 | 320-680 | 315 |
