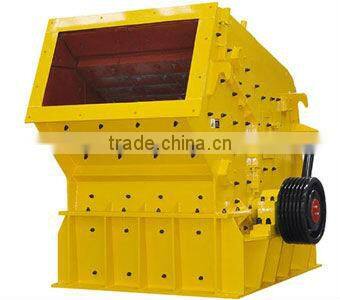

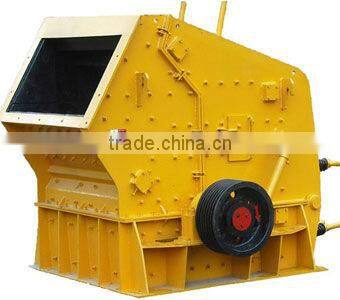

2015 Hot Sell Hammer Crusher Hammer Mill
Hammer Crusher (Hammer Mill) Introduction:
The hammer crusher (hammer mill) crushes by the collisions between high-speed hammer and material, and the hammer crusher (hammer mill) is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic material, construction material, road building, and petroleum & chemical industries.The hammer crusher is suitable to crush various brittleness mineral, such as coal, salt, white and Asian, gypsum, alum, brick, tile, limestone, etc.
Hammer Crusher (Hammer Mill) Application:
Secondary and tertiary crushing: mining ,aggregate,metallurgy, industral,construction, environmental.
Hammer Crusher (Hammer Mill) Working Principle:
In the hammer mill machine, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required.
Hammer Crusher (Hammer Mill) Advantages:
- Simple structure,large crushing ratio,high production efficiency;
- Low power consumption,energy saving and environmental protection;
- Uniform particle size;
- Less investment cost,easy to manage;
- Wide range of applications.
Hammer Crusher (Hammer Mill) Technical Parameters:
| Model | Diameter of Rotor (mm) | Width of Rotor (mm) | Rotor Speed (r/min) | Max.Feeding Size (mm) | Max.Discharge Size (mm) | Capacity(t/h) | Power(Kw) |
| PC400×300 | 400 | 300 | 1000 | 50 | 10 | 2-8 | 7.5 |
| PC600×400 | 600 | 400 | 1000 | 80 | 15 | 9-20 | 22 |
| PC800×600 | 800 | 600 | 980 | 120 | 15 | 13-30 | 55 |
| PC800×800 | 800 | 800 | 980 | 160 | 15 | 35-65 | 75 |
| PC1000×800 | 1000 | 800 | 980 | 200 | 20 | 55-85 | 110 |
| PC1000×1000 | 1000 | 1000 | 980 | 250 | 20 | 80-120 | 132 |
| PC1200×1200 | 1250 | 1250 | 740 | 300 | 20 | 110-260 | 185 |
| PC1400×1400 | 1400 | 1400 | 740 | 350 | 25 | 240-450 | 250 |
| PC1600×1600 | 1600 | 1630 | 600 | 400 | 25 | 320-680 | 315 |
