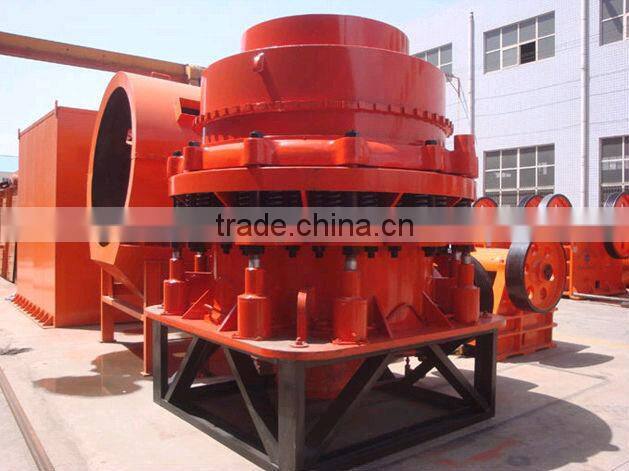

Help Center2014 China Hot Selling Best Performance CS Cone Crusher With BV,CE,ISO
Related Products
-
2013 Hot Selling High Quality Ore Hammer Crusher With Reasonable PriceUS$ 1,000 - 9,000MOQ: 1 Set -
2015 New Improved Ore Hammer Crusher Hot Sale in ChinaUS$ 1,000 - 9,000MOQ: 1 Set
-
2015 China Hot Selling PCH Series Hammer CrusherUS$ 1,000 - 9,000MOQ: 1 Set
-
Efficiency Hot Saling High Standard Impact Crushing Machine With Best PriceUS$ 1,000 - 9,000MOQ: 1 Set
-
2015 Newest Design Hot Saling High Standard Jaw Crushing Machine With Best PriceUS$ 1,000 - 999,999MOQ: 1 Set
Introduction of spring cone crusher:
Spring Cone crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness. The spring safety system of crusher acts as an overloading protection system that allows metal to pass through the crushing chamber so as not to damage the cone crusher. The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separate to make sure reliable performance.
Advantages of spring cone crusher:
- Robust and reliable design for hard stone crushing;
- High productivity with lowest total cost;
- Various of cavity choice;
- Easy operation and simple maintenance.
Working Principle of spring cone crusher:
Cone crusher crushes materials by the working surface between the movable cone and fixed cone. So it is more advanced and efficiency efficient than jaw crusher. The movable cone is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are driven by the eccentric shaft sleeve together.
The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is driven by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the movable cone leaves, grinded materials is discharged from the discharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequently the output size is determined adjusted.
Technical parameters of spring cone crusher:
| Model | Moving cone diameter(mm) | Cavity | Feed opening(mm) | material mouth adjustable scope(mm) | Capacity(T/H) | Shalt speed(r/min) | Power(kw) | Weight(t) | overall dimension(mm) | |
| Shuting size(mm) | Opening size(mm) | |||||||||
| CSB75 | 900 (3') | Fine | 83 | 102 | 9-22 | 45-91 | 580 | 75 | 15 | 2821*1880 *2164 |
| Coarse | 159 | 175 | 13-38 | 59-153 | ||||||
| CSB160 | 1295 (4.25') | Fine | 109 | 137 | 13-31 | 109-181 | 485 | 160 | 27 | 2800*2342 *2668 |
| Medlum | 188 | 210 | 16-31 | 132-253 | ||||||
| Coarse | 216 | 241 | 19-51 | 172-349 | ||||||
| CSB240 | 1650 (5.5') | Fine | 186 | 209 | 16-38 | 181-327 | 485 | 240 | 55 | 3911*2870 *3771 |
| Medlum | 213 | 241 | 22-51 | 258-417 | ||||||
| Coarse | 241 | 268 | 25-64 | 299-635 | ||||||
| CSB315 | 2134 (7') | Fine | 253 | 278 | 19-38 | 381-726 | 435 | 315 | 110 | 4613*3251 *4732 |
| Medlum | 303 | 334 | 25-51 | 608-998 | ||||||
| Coarse | 334 | 369 | 31-84 | 789-1270 | ||||||
Certification:
