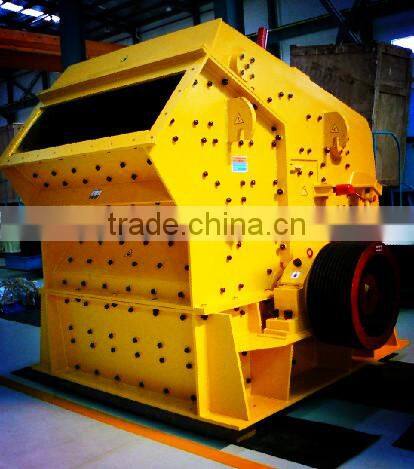

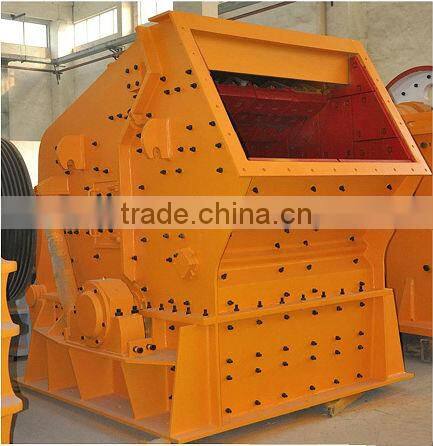

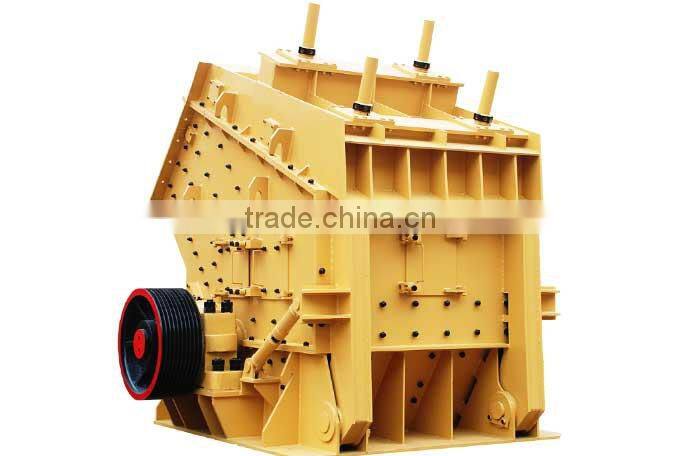

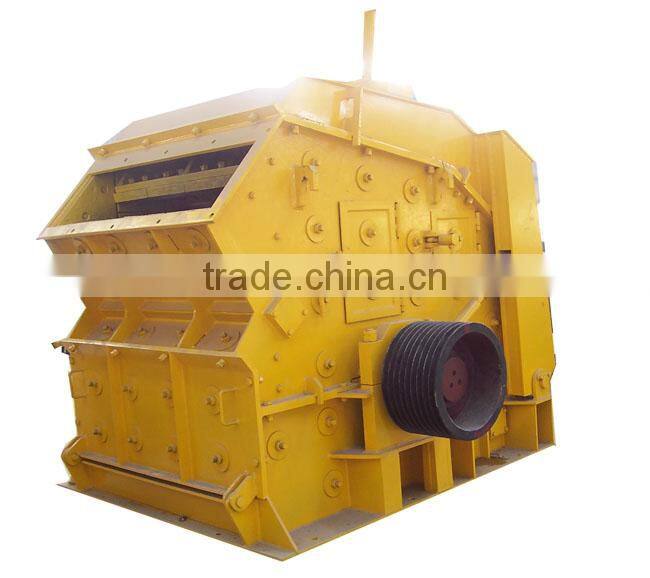

China Wholesale High Efficiency Gold Mining Equipment Impact Crusher
1.The introduction of impact Crusher
The impact crusher is a new product designed by our company by absorbing advanced technologies from home and abroad. The equipment is applicable for various coarse, medium and fine materials (such as granite, limestone and concrete, etc.) with grain size not exceeding 350mm and compression strength not higher than 320MPa. It is characterized by great reduction ratio, high reduction efficiency and convenient maintenance, etc. The product is in the shape of a cube. It is the ideal machining equipment for aggregate for high-class highway pavement and construction of hydropower facilities. With excellent capacity and performance, it is widely used in machining of reduced stone for highway construction, hydraulic engineering and architecture, etc...
2.Performance feature of Impact Crusher
- Compact structure, low noise and efficient;
- Easy to install and only need simple foundation
- Can adjust the pressure and size easily.
- Selfprotection, the parts can not be damaged when hard materials such as the metals goes into the crushing cavity
3.Application of Impact Crusher
Impact crusher is widely applied in mining, transportation, energy, construction and chemical industry. impact crusher is ideal choice for crushing and screening.
4.Structure of Impact Crusher
5.Technical parameters of Impact Crusher
impact crusher Model | Feed Opening | Max. Feed Size | Capacity | Motor Power | Weight | Dimensions |
PF-1007 | 820×700 | 300 | 24-45 | 55 | 9.5 | 2400×1558×2660 |
PF-1010 | 1170×720 | 350 | 50-80 | 75 | 10 | 2532×1985×2196 |
PF-1210 | 1090×465 | 350 | 80-130 | 110 | 14 | 2638×2037×2713 |
PF-1214 | 1440×465 | 350 | 100-160 | 132 | 18 | 2580×2400×2810 |
PF-1315 | 1532×560 | 350 | 140-200 | 200 | 19.3 | 2840×2748×2556 |
PF-1316 | 1690×859 | 350 | 150-220 | 200 | 19.5 | 3096×2850×2667 |
PF-1516 | 1840×859 | 350 | 300-350 | 250 | 24.5 | 3700×3500×7280 |
PF-1814 | 1930×580 | 350 | 350-400 | 132×2 | 32 | 2816×2902×3062 |
PF-2016 | 2100×895 | 350 | 150-220 | 200×2 | 40 | 3452×3021×3937 |
6.Operation Principle of Impact Crusher
This impact crusher machine crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. The machine employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine.
7.More Products for You to Choose
Why Choose Us
- Over 20 years production and export experience.
- Perfect handwork on crushing machines, grinding machines, screening machines and ore dressing machines.
- Strict quality control on each production process.
- Satisfactory pr-sale service & after- sale service.
