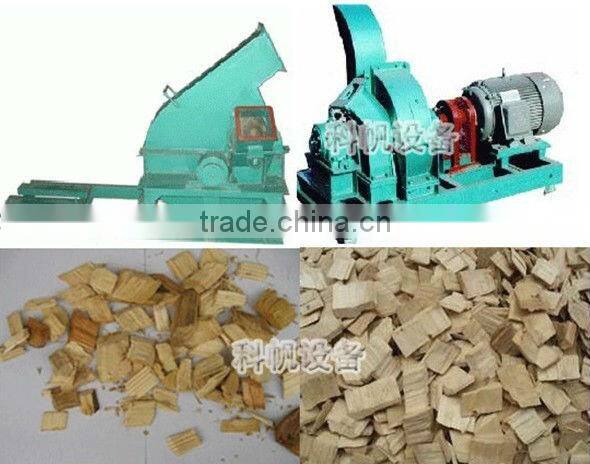

Wood Chip Briquette Making Machine
Raw materials:
Wood Chip Briquette Making Machine processed wood,branch fork etc material into wood chips.By which,the logs and small wood are cut into high quality with even length and uniform chip thickness. It is also suitable for chipping of branches, twigs and planks.
Features:
Wood Chip Briquette Making Machine has low investment and energy consumption, high productivity, good economic returns, easy maintenance etc advantages. Wood cutting machine can be used for the development of edible fungi, particle board, HDF board sawdust raw materials production.
Wood chipper can chip wood with diameter less than 200 mm. Wood Crusher is very popular in paper mill.
Structure:
Wood Chip Briquette Making Machine contains main body, shaft coupling, base shelf, and motor and so on. The main body consists of blade disk, cover, feeding opening and output opening.
Main Technical Parameters:
| Model | B*213 | B*215 | B*216 |
| Rotor Diameter(mm) | 300 | 500 | 650 |
| Number of rotor knives(pieces) | 2 | 2 | 2 |
| Feed opening(mm) | 120x300 | 180x400 | 240x540 |
| Rotor Speed(Rpm) | 730 | 592 | 590 |
| Feed Speed(m/min) | 38 | 38 | 38 |
| Stock processed max diameter(mm) | 90 | 160 | 200 |
| Chip length(mm) | 26 | 35 | 35 |
| Capacity(m3/h) | 3-5 | 4-5 | 12 |
| Main drive motor power(KW) | 30 | 45 | 55 |
| Feed roller motor power(KW) | 1.1x2 | 2.2x2 | 3x4 4x1 |
| Weight(t) | 1.2 | 2.9 | 4.07 |
| Overall dimensions(LxWxH)(mm) | 3680x870x900 | 1540x1240x1020 | 1980x1950x1250 |
Certification:
