The Application of Ball Mill
The ball mill is the key equipment that material to be broken, and then to be smashed . It is widely used in cement, silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal processing and glass ceramics production industry,have dry or wet grinding on a variety of ores and other grind-able materials.
Ball mill's installation program
Energy-saving ball mill should be installed in the solid concrete basis. Ball mill's foundation design and construction consult ball mill assembly diagram and foundation drawing. In order to guarantee during using process,the positional accuracy of ball mill's parts don't change greatly,ball mill's foundation should use whole block type structure. Concrete foundation pressure strength can be more than 75% to install ball mill. Before installing, inspecte the basic quality,requiring concrete don't have defects affecting strength,reserve hole's quantity and position accords with the requirements, reserve hole don't have sundry and water, no pollution. Adopt the "ground method" for installation work, based on the surface should be embedded in "the center mark plate". Before installation,draw all the center line on the basis and in the "center scale board" made marked impact point mark as centerline standard during installation.Before lifting,check and accept the ball mill's parts totally,if find problems,dispose in timely.
1, main bearing part's specific requirements consults main bearing parts assembly drawing.
2, barrel part consults rotary part assembly drawing.
3, transmission part consults drive part assembly drawing.
4, the whole relative position consults general assembly drawing.
Ball Mill's Technical Parameters
| Model | Cylinder Speed (r/min) | Ball Charge (t) | Feed Particle Size (mm) | Discharge Size (mm) | Output (t/h) | Motor Power (kw) | Weight (t) |
| 900*1800 | 38 | 1.5 | <=20 | 0.075 - 0.89 | 0.65 - 2 | 18.5 | 3.6 |
| 900*2100 | 38 | 1.3-1.4 | <=15 | 0.075 - 0.83 | 0.7 - 3.5 | 18.5 | 3.9 |
| 900*3000 | 38 | 2.7 | <=20 | 0.075 - 0.89 | 1.1 - 3.5 | 22 | 4.5 |
| 1200*2400 | 32 | 3.8 | <=25 | 0.075 - 0.6 | 1.5 - 4.8 | 30 | 11.5 |
| 1200*2800 | 32 | 3.3-3.5 | <=25 | 0.075 - 0.6 | 2 - 6 | 30 | 13 |
| 1200*4500 | 32 | 7 | <=25 | 0.074 - 0.4 | 1.6 - 5.8 | 45 | 13.8 |
| 1500*3000 | 27 | 8 | <=25 | 0.074 - 0.4 | 2 - 5 | 75 | 17 |
| 1500*3500 | 27 | 6.75-6.4 | <=25 | 0.075 - 0.4 | 3 - 7 | 75 | 17.5 |
| 1500*4500 | 27 | 14 | <=25 | 0.074 - 0.4 | 3.5 - 12 | 110 | 21 |
| 1500*5700 | 27 | 15 | <=25 | 0.074 - 0.4 | 3.5 - 8 | 115 | 24.7 |
| 1830*3000 | 24 | 18 | <=25 | 0.074 - 0.4 | 4 - 10 | 130 | 28 |
| 1830*3600 | 24 | 10.6-11.35 | <=25 | 0.075 - 0.4 | 5 - 22 | 130 | 33.5 |
| 1830*7000 | 24 | 25 | <=25 | 0.074 - 0.4 | 7.5 - 17 | 210 | 36 |
| 2100*3600 | 22 | 14-15.2 | <=25 | 0.075 - 0.4 | 15 - 36 | 370 | 46.8 |
| 2200*5500 | 21 | 30 | <=25 | 0.074 - 0.4 | 10 - 22 | 210 | 48.5 |
| 2200*6500 | 21 | 31 | <=25 | 0.074 - 0.4 | 14 - 26 | 380 | 52.8 |
| 2200*7500 | 21 | 33 | <=25 | 0.074 - 0.4 | 16 - 29 | 380 | 56 |
| 2400*3000 | 20.6 | 15.5-16.6 | <=25 | 0.075 - 0.4 | 22 - 24 | 245 | 59 |
| 2400*4500 | 21 | 30 | <=25 | 0.074 - 0.4 | 8.5 - 60 | 380 | 65 |
| 2700*3600 | 20.6 | 39 | <=25 | 0.074 - 0.4 | 12 - 70 | 400 | 91.3 |
| 2700*4000 | 20.7 | 40 | <=25 | 0.074 - 0.4 | 12 - 80 | 400 | 94 |
| 2700*4500 | 20.7 | 48 | <=25 | 0.074 - 0.4 | 12 - 90 | 430 | 102 |
| 3200*4500 | 18 | 65 | <=25 | 0.075 - 0.4 | set according to the process conditions | 800 | 137 |

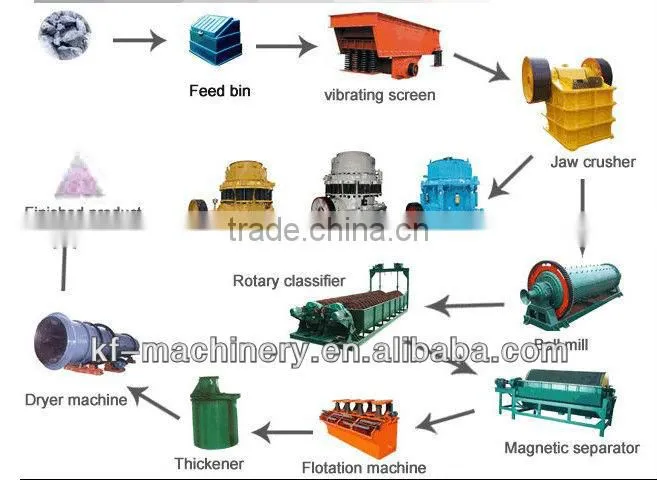

Flow chart
Skype: journeybaobei
Whatsapp: +86 13937131970
Our products have CE,ISO9001:2008 certificated,so you can feel relieved for our product.
Please free contact us!
Send Inquiry to This Supplier
