ISO9001:2008 certificate
Our workshop:
OEM of Liu Gong,Foton Lovol and Power Plus

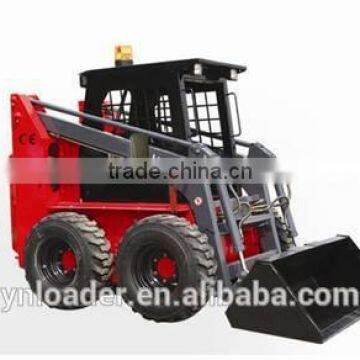

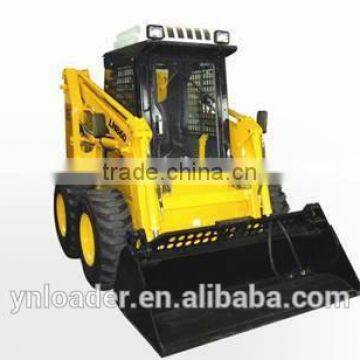

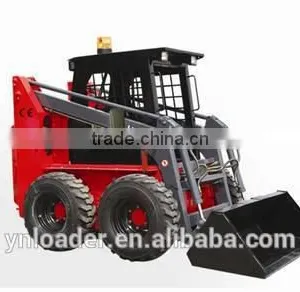

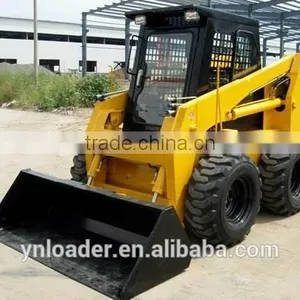

YN 845 Common model:
YN845 skid steer loader technical specifications:
1.Chinese Xinchang diesel engine 490
2.USA Sauer/eaton brand hydraulic pump
3.USA Eaton brand hydraulic motor
4.Mechanical control system
5.Open cabin
6.Hydraulic brake
7.Bobcat type quick coupler
Item | Description | Item | description |
Rated operating capacity (kg) | 700 | Hinge pin height (mm) | 2900 |
Tipping load (kg) | 1400 | Total height (mm) | 2050 |
Bucket capacity(m3) | 0.36-0.45 | Length with bucket (mm) | 3380 |
Hydraulic pump flow (L/min) | 62.5 | Length without bucket (mm) | 2450 |
Engine power (hp) | 50 | Width with bucket (mm) | 1740 |
Weight (kg) | 2750 | Track width (mm) | 1450 |
Max travel speed (km/h) | 12 | Wheelbase (mm) | 991 |
Grade ability | 20 | Ground clearance (mm) | 185 |
Tire | 10-16.5 | Dumping angle | 40 |
Fuel/hyd oil capacity (L) | 50/50 | Dumping height (mm) | 2310 |
Height at maximum extension | 3670 | Maximum reach (mm) | 710 |
YN845 skid steer loader Quotation:
FOB Qingdao Port
Options:
1.Original Hyundai engine +$1550.00
2.Original Perkins engine +$4000.00
3.Close cabin +$300.00
4.Air condition +$750.00
5.Heater +$90.00
Packing:
2 units/20' container
4 units/40' container
Delivery time: 20 days
Guarantee: 1 Year
